information.
OSC
Open Sound Control (OSC) is a protocol for communicating between computers, software and various
multi-media type devices. OSC uses the network to send and receive messages, it can contain MIDI,
time-code and custom information.

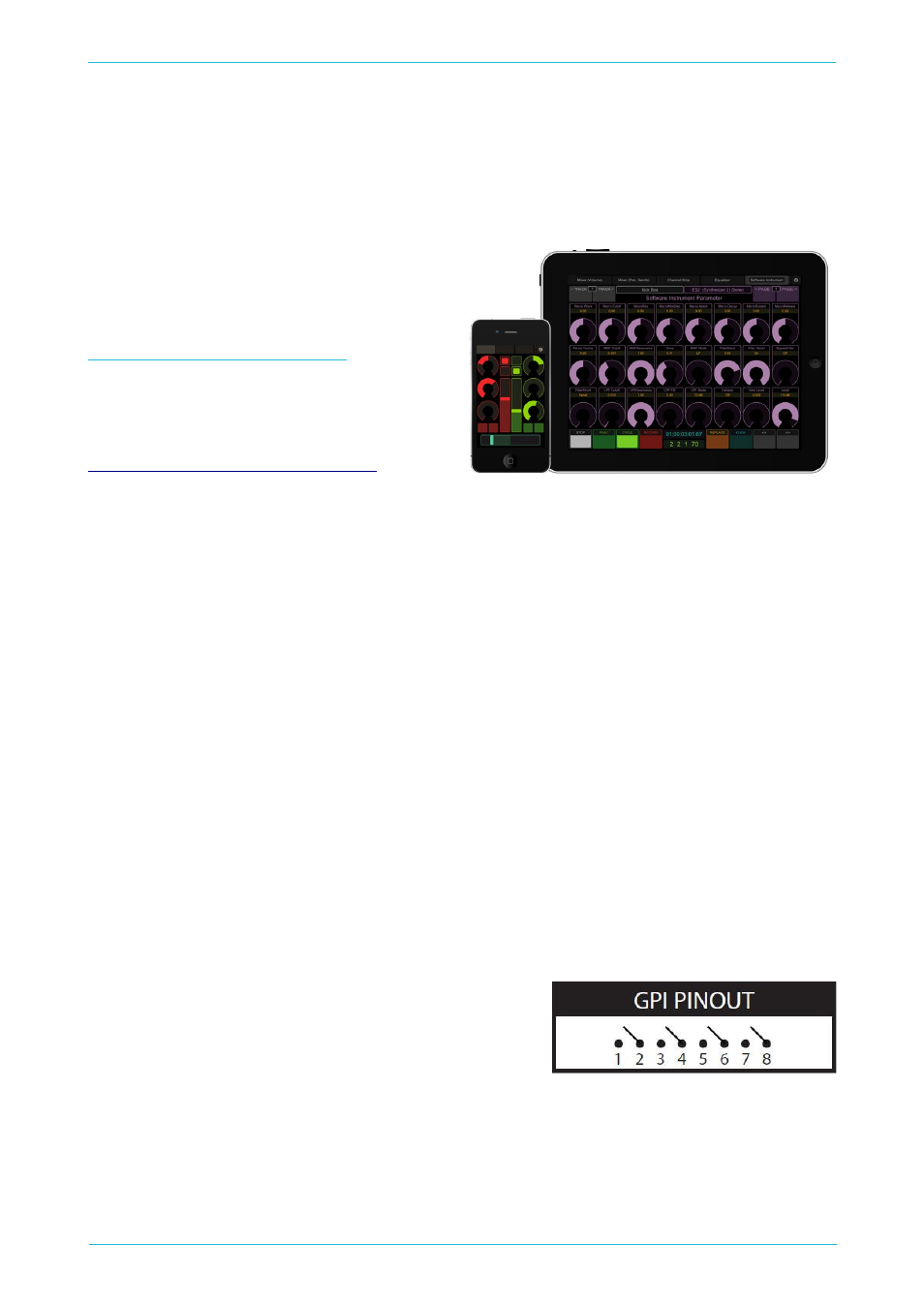

There are apps available for creating custom-made
user interfaces on IOS (iPod, iPhone, iPad) and
Android. These tools allow you to program fool-
proof user-interfaces for controlling the device.
E.g. TouchOSC from
There is a TouchOSC layout available from
that is
configured to control the recorder playbacks and
select cues in the lighting console of the Art SSC. This layout works in conjunction with the 'OSC'
templates, as discussed on page 22.
Other templates are available to use the Art SSC as a converter between OSC and MIDI.
UDP
UDP (User Datagram Protocol) is a simple protocol for sending message across the network. It is
supported by various media devices like video projectors and show controllers.
The device can send and receive UDP messages. The UDP message contains a NULL terminated ASCII
string of maximum 15 characters. UDP can be received by adding the UDP source action-list in the Show
Control page. Enter the expected ASCII string as the action's trigger. UDP messages can be send by
adding a UDP task to any action. Parameter 1 allows you to enter the ASCII string and parameter 2 will
contain the destination IP address and port number.
GPI
The General Purpose Inputs (GPI) port on the Art SSC differs from the ports on the Art IO.
Art SSC
The GPI port features 4 contact-closure ports. It allows you to attach physical switches, sensors or other
equipment and have the ports trigger events in the Art SSC. You can set the port to 'Normally Open' or
'Normally Closed' in the Show Controller (see page 23).
The GPI's RJ-45 has the following pin-out:
If your project requires more than 4 GPI contacts then you can
expand the GPI ports by connecting one or more Art IO modules to your Art SSC. The module can be
connected through OSC, UDP, Art-Net or DMX.
Art IO
The Art IO features 8 inputs that can be individually configured as digital or analogue input. Set as digital
