FEATURES

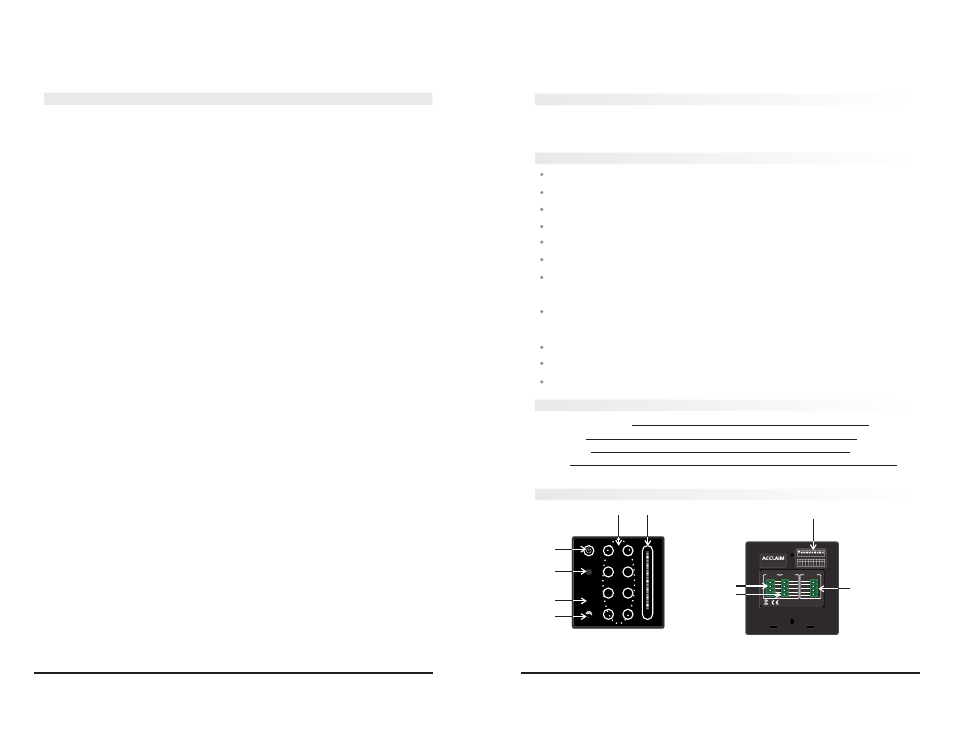

LAYOUT
DESCRIPTIONS
The ART-8D is a lighting controller with , featuring online control,
data transfer, infrared remote control.
8 scenes touch interface,
SPECIFICATIONS
Voltage Requirement 12~24VDC
Connector 4 Pin terminal
Dimensions 85x85x19(mm)
Weight 100g
RoHS Made in P.R.C. 24-005-1997-00
GND
D - D+
+12-24V
LINK IN DMX OUT LINK OUT
GND
D - D+
+12-24V
DMX ADDRESS SETTING
1 2 4 8 16 32 64 128 256
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
ART-8D
9
10 7
8
8 scenes, 8 DMX channels for each scene.
Fade-in-time and switch off fade-time available for each scene
Lock function for front panel and program
Infrared remote control
External timing trigger controllable, different scenes can be raised and close by timing
Online control function available, up to 32 units can be connected on a linking
function for data . All the date of the current device can be sent to other online
devices
Auto dimming function for front panel back light. The back light will automatically dim if no
action is triggered within 1minute.
Raising/ shutting different scenes via external time trigger
Black, white and grey housing available for selection
Power failure protection
Transfer
1
2
3
4
5
6
7
8 DIM A R T - 8 D
1
2
3
4 5
6
