uu Gauges and Multi-Information Display u Multi-Information Display
In
strum
e
nt Pa
nel
Displays engine and electric motor power flow – whether the system is assisting the
engine or charging the battery.

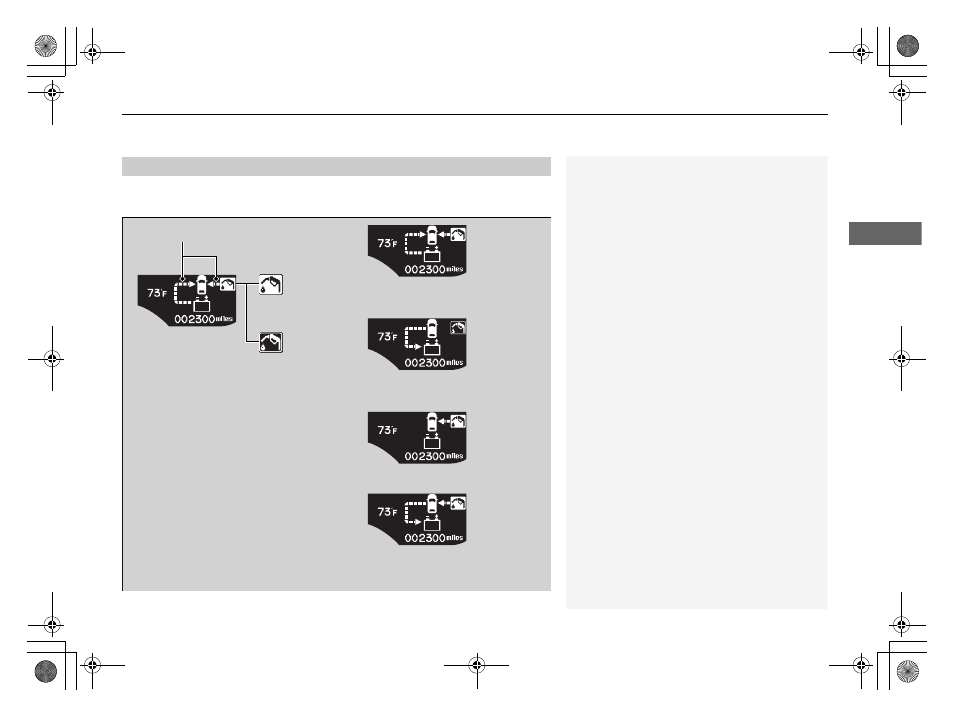

■ Power Flow Monitor 1 Power Flow Monitor
The displayed power flow may not correspond to the
ASST/CHRG indicators directly.
2 Electric Motor Assist Indicator (ASST) P. 82
2 Battery Charge in Progress (CHRG) P. 82
Power Flow Engine
Operation
Icon
Operating
Not
operating
Power is supplied with the
engine and the electric motor
is assisting the engine.
The electric motor is charging
the IMA battery.
Power is supplied with only the
engine.
Power is supplied with only the
engine and the electric motor
is charging the IMA battery.
