IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
INSIDE CEILING LIGHT
To change the bulb, proceed as follows:
❒ using the screwdriver provided, extract
the ceiling light A-fig. 32 working in the
point indicated by the arrow;
NUMBER PLATE LIGHTS fig. 31
To replace the bulbs proceed as follows:
❒ work in the point shown by the arrow
and remove lens A;
❒ change the bulb releasing it from the
side contacts and making sure the new
bulb is correctly fastened between the
contacts;
❒ reinstall the lens.
fig. 30 F0S0059m

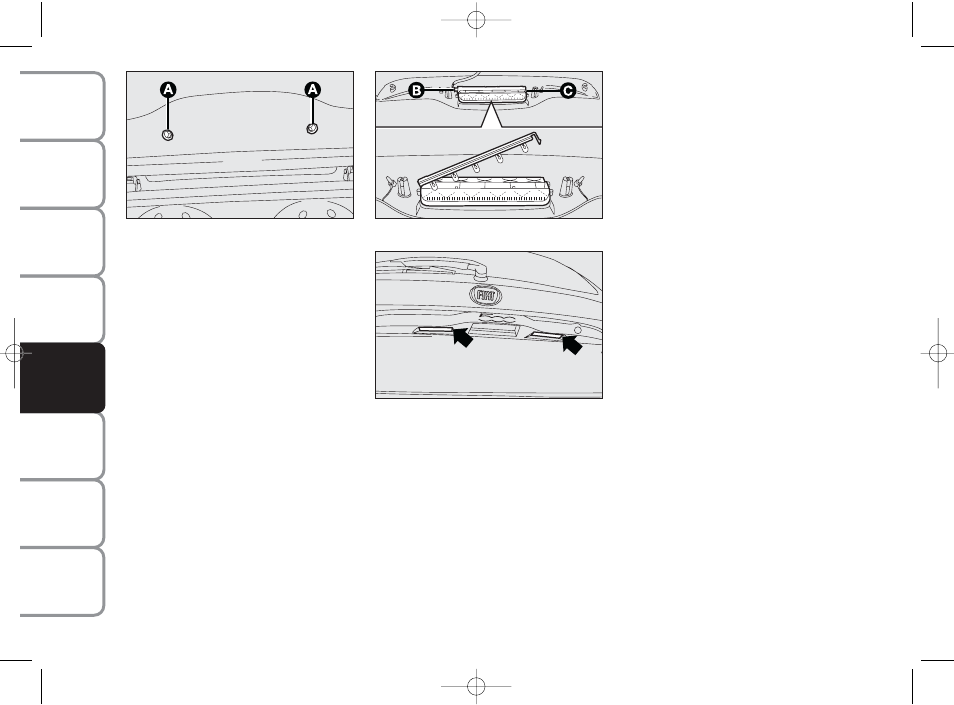

THIRD BRAKE LIGHT fig. 29-30
To change the bulb proceed as follows:
❒ remove the two guard caps and un-
screw the two fastening screws A;
❒ withdraw the assembly;
❒ disconnect the electric connector B;
❒ press the retaining device C and open
the bulb holder;
❒ remove the snap-fitted bulb to be re-
placed and replace it;
❒ close back the cap locking it properly.
❒ screw in the two fastening screws and
reinstall the guard caps;
fig. 29 F0S0058m
fig. 31 F0S0139m
