Edimax Technology CV-7428nS - Manual (Page 21)

21

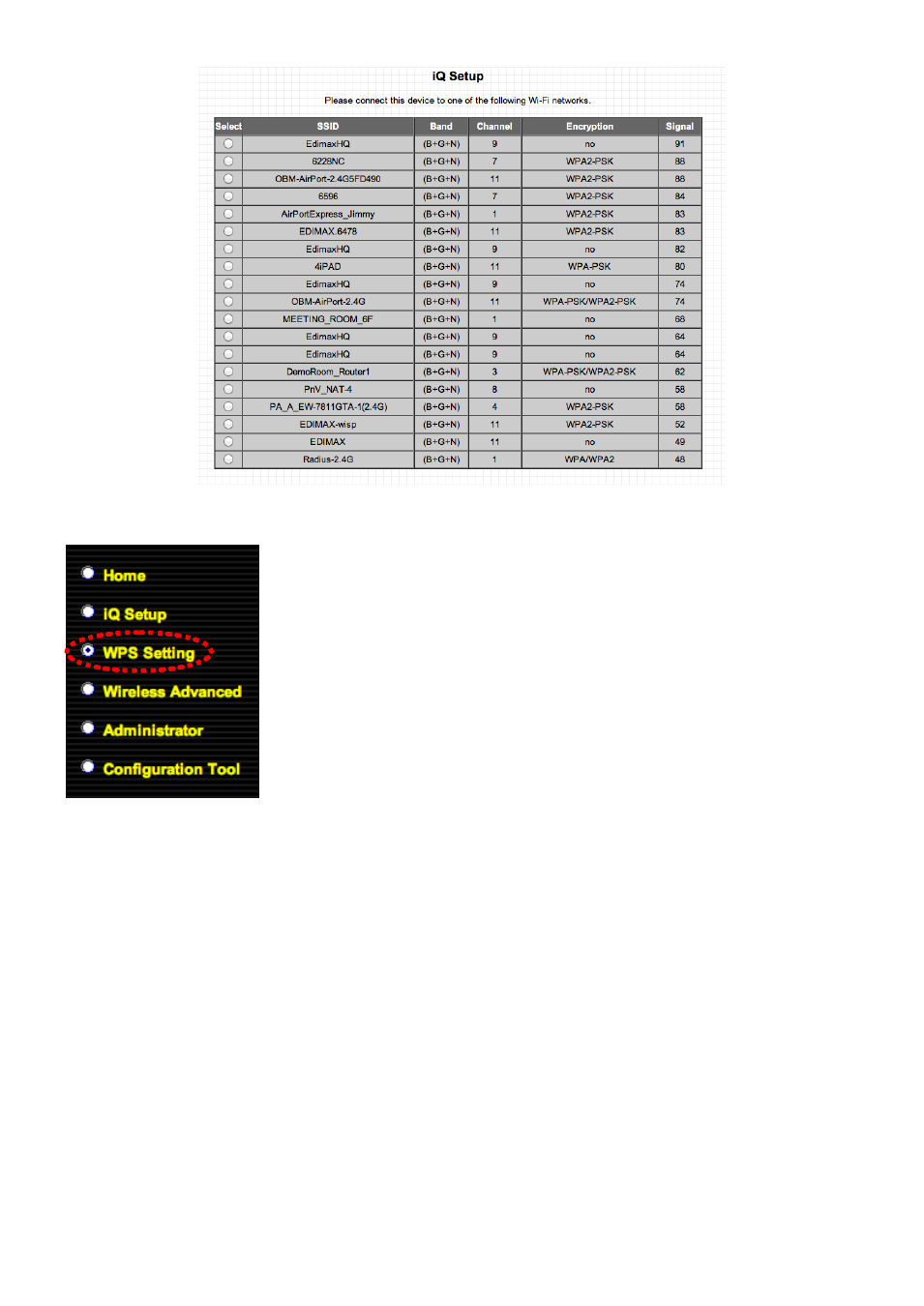

III-3. WPS Setting
Wi-Fi Protected Setup (WPS) is the simplest way to build
a connection between your wireless router/access point
and the wireless bridge. You don’t have to select an
encryption mode and enter a long encryption
passphrase – simply press a button on the
wireless
router/access point and on the wireless bridge, and WPS
will do the rest for you.
The wireless bridge supports two types of WPS:
Push-Button Configuration (PBC), and PIN code. If you
want to use PBC, you will need to switch the wireless bridge to WPS mode by
pushing the WPS/Reset button or clicking the “Start PBC” button in the web
configuration interface - and pushing a specific button on the wireless
router/access point. To use PIN code, you will need to enter the PIN code of
the
wireless router/access point you wish to connect to and then activate WPS
mode in the wireless router/access point.
