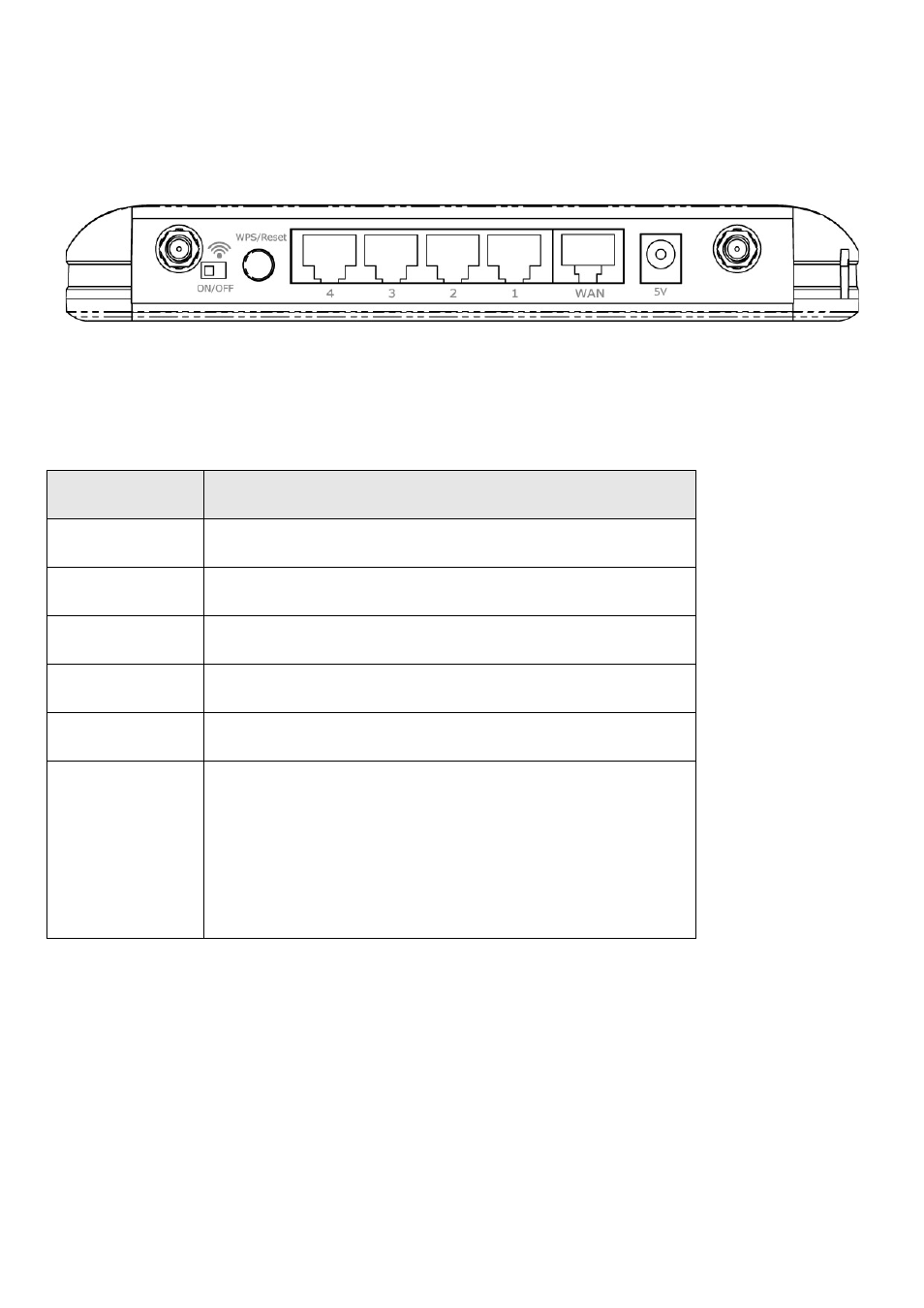

Back Panel

BR‐6428n

Item Name

Description

Antenna

Wireless antenna

1 – 4 (Yellow)

Local Area Network (LAN) ports 1 to 4

WAN (Blue)

Wide Area Network (WAN/Internet) port

5VDC

Power connector (connects to power adapter)

Wireless Switch Turn on/off the wireless signal

WPS/Reset

Resets the router to factory default settings (clears all
settings) or starts WPS function. Press this button
and hold for 20 seconds to clear all settings, or press
this button for less than 20 seconds to activate WPS
function.
