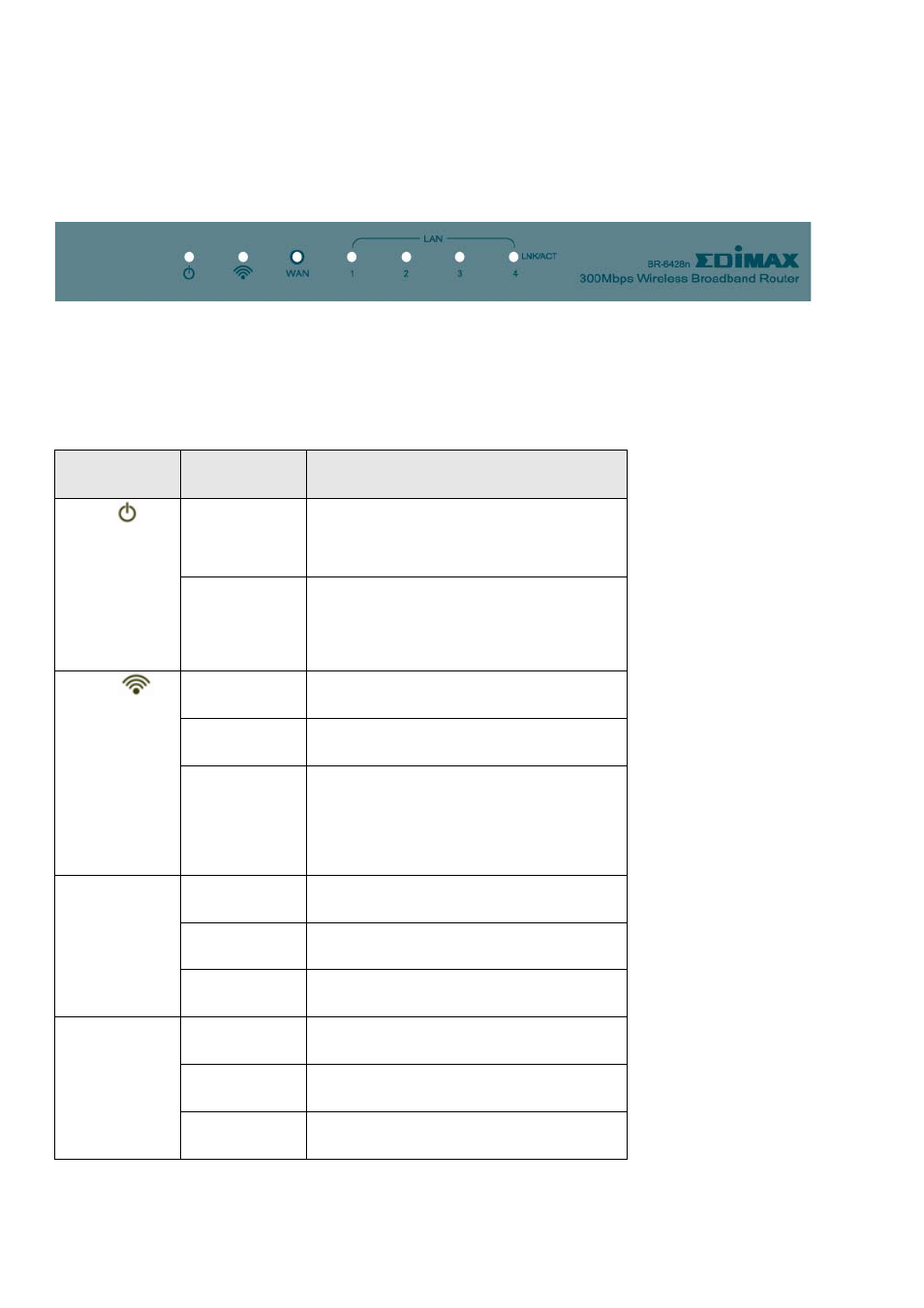

1‐5 Getting familiar with your new wireless broadband router
Front Panel
LED Name
Light Status Description
PWR
ON
Router is switched on and
correctly powered
OFF
Router is not powered
(or not correctly powered)
WLAN
On
Wireless network is switched on
Off
Wireless network is switched off
Flashing
Wireless LAN activity (transferring
data) or WPS mode activated (LED
will flash once every second)
WAN
On
WAN port is connected
Off
WAN port is not connected
Flashing
WAN activity (transferring data)
LAN
LNK/ACT
On
LAN port is connected
Off
LAN port is not connected
Flashing
LAN activity (transferring data)
