74

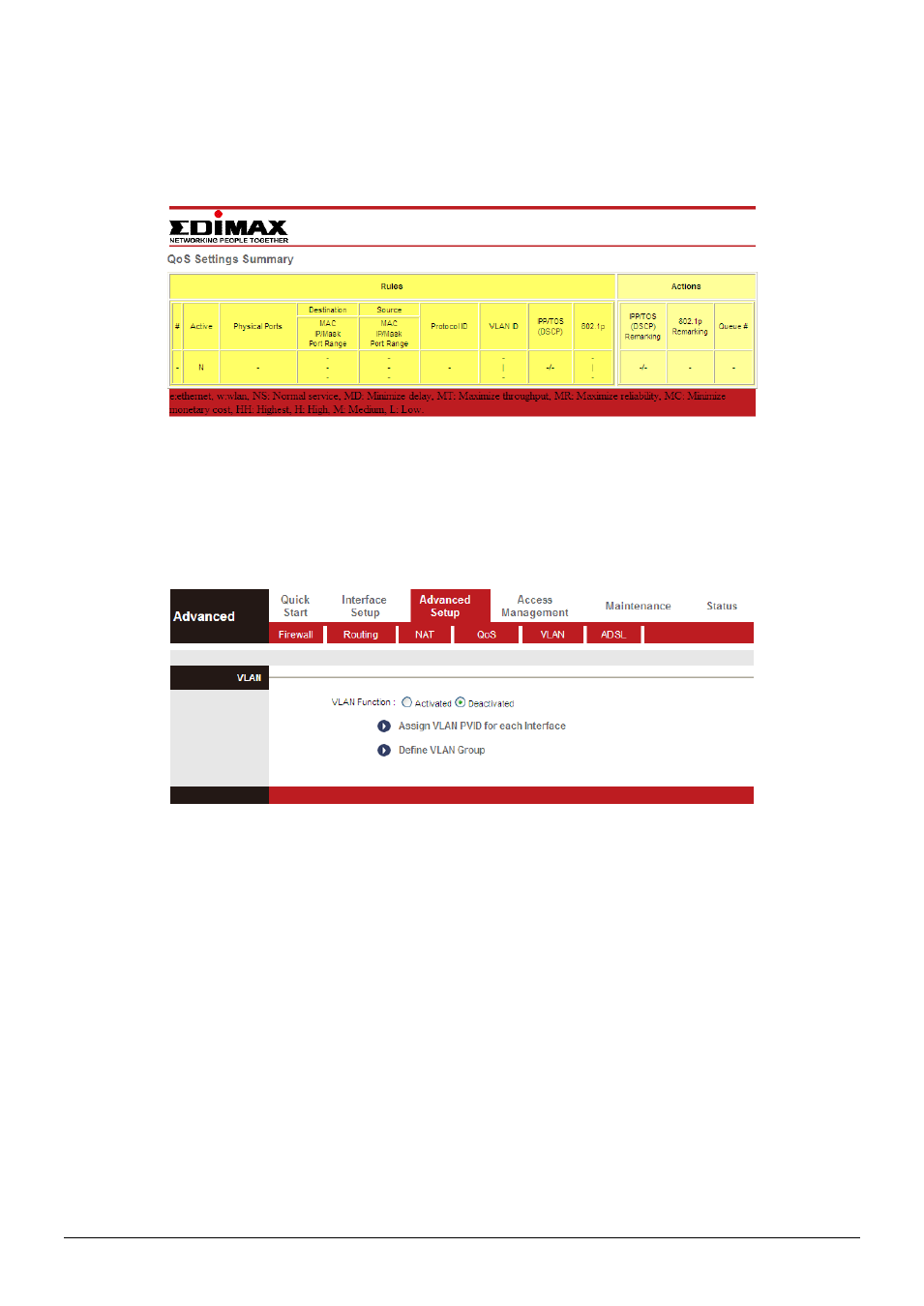

Click Save at the bottom of the page to save the discipline. To view the rules
and actions, click QoS Settings Summary to enter the page shown in the
following figure appears.
5.5.5. VLAN
Choose Advanced Setup > VLAN, the page shown in the following figure
appears.
Virtual LAN (VLAN) is a group of devices on one or more LANs that are
configured so that they can communicate as if they were attached to the same
wire, when in fact they are located on a number of different LAN segments.
Because VLANs are based on logical instead of physical connections, it is very
flexible for user/host management, bandwidth allocation and resource
optimization.
In the VLAN page, choose Activated and then Assign VLAN PVID for each
Interface, and the page shown in the following figure appears.
