11
3. Connect the power adapter to the router.
Plug one end of the power adapter into a wall outlet and connect the other
end to the 12V interface of the device.

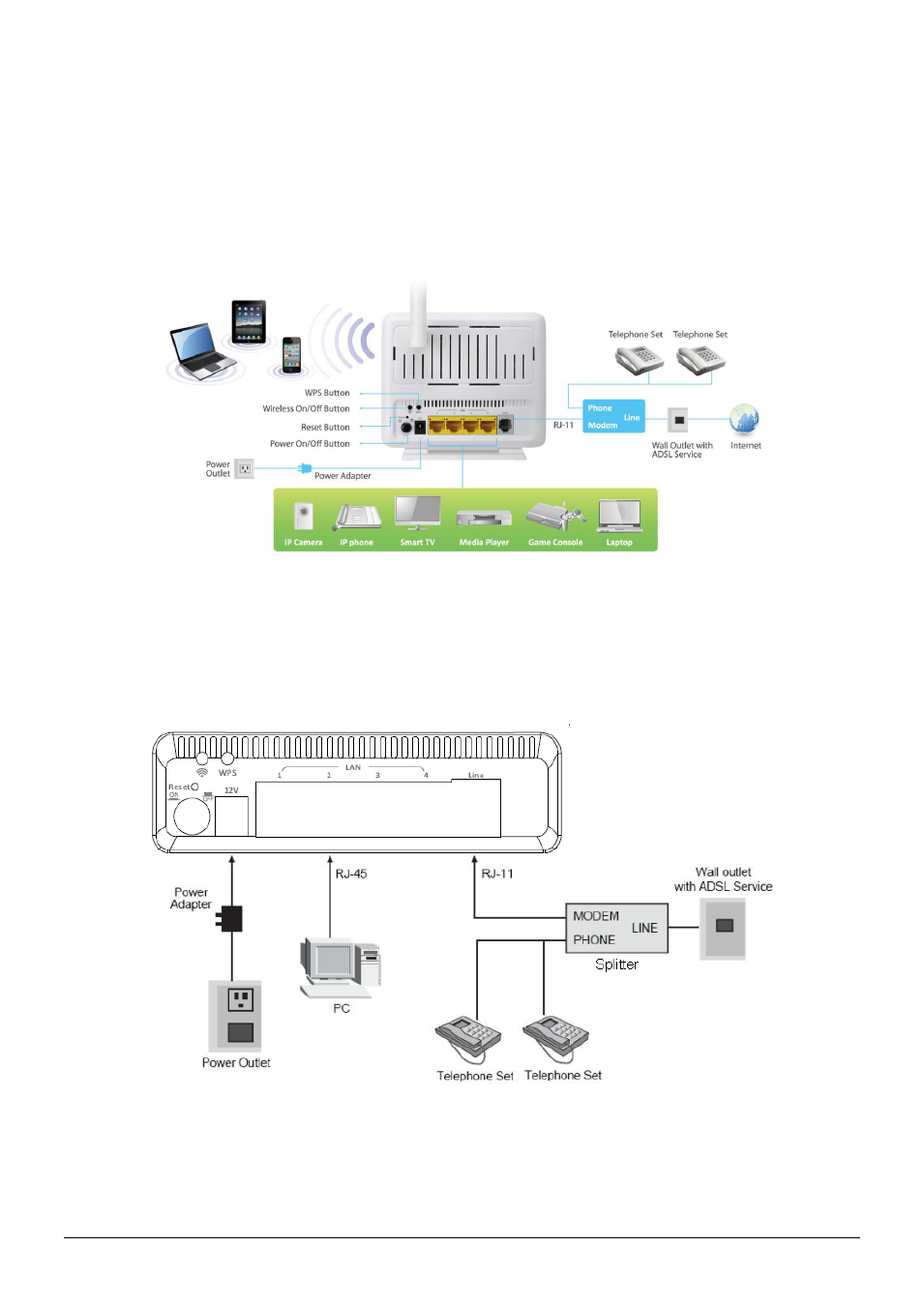

The following diagrams show how to correctly connect the router, PC,
splitter and the telephone sets under two different configurations:
Configuration 1
0 shows the correct connection of the router, PC, splitter and the telephone
sets, with no telephone set placed before the splitter.
Figure 1 –Connection diagram
(Without connecting telephone sets before the splitter)
