Please refer to the section “3M™ Dynatel™ Locator setup” for details on setting
up the Locator.
Thales™ MobileMapper™ / Dynatel™ Hookup
1. Secure the “null” modem adapter to the 3M™ Dynatel™ Locator serial
port connector.
2. Connect the MobileMapper™ to the null modem adapter using the cable
supplied with the MobileMapper™.
The users are encouraged to use third party accessories including null modem,
custom cable and mounting bracket are available (example: Igage Mapping
Corpn, Salt Lake city, UT 84105)

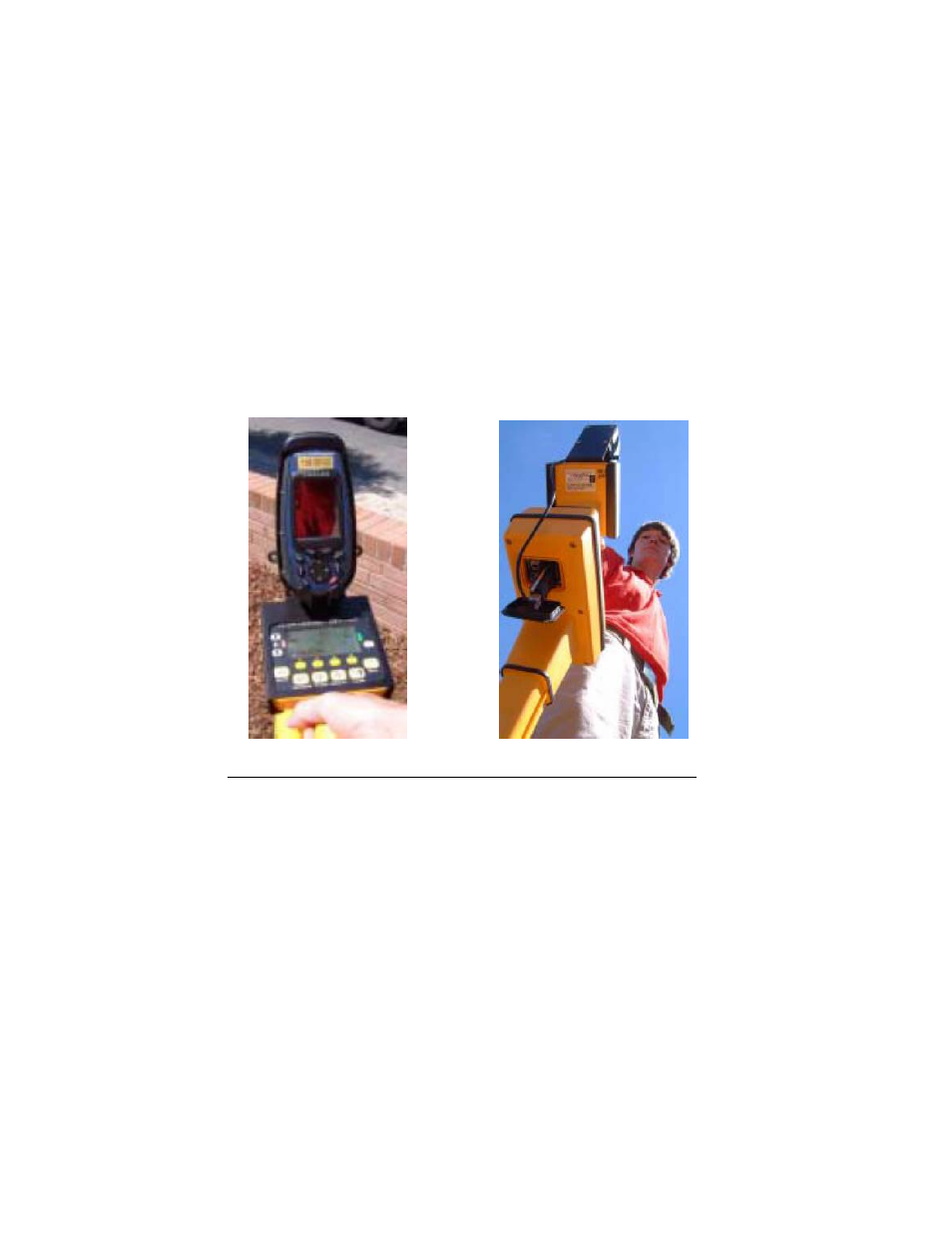

Figure 13. Thales™ MobileMapper™ mounted on 3M™ Dynatel™ Locator
Note: Remember to remove the null modem adapter before connecting the
3M™ Dynatel™ Locator to your PC to use PC Locator tools.
Thales™ MobileMapper™ / 3M™ Dynatel™ Locator Operation
1. If the MobileMapper™ GPS device has been connected to MobileMapper
Office™ since the last logging operation, setup NMEA to V2.1GSA and
Baud Rate to 4800 Baud.
2. Press LOG or MENU on the MobileMapper™ GPS device.
3. Select Create a New Job. Enter a Job Name and select OK and press
Enter.
4. From the Feature Library window, select DYNATEL.MMF and Enter.
18
