Hardware Connections

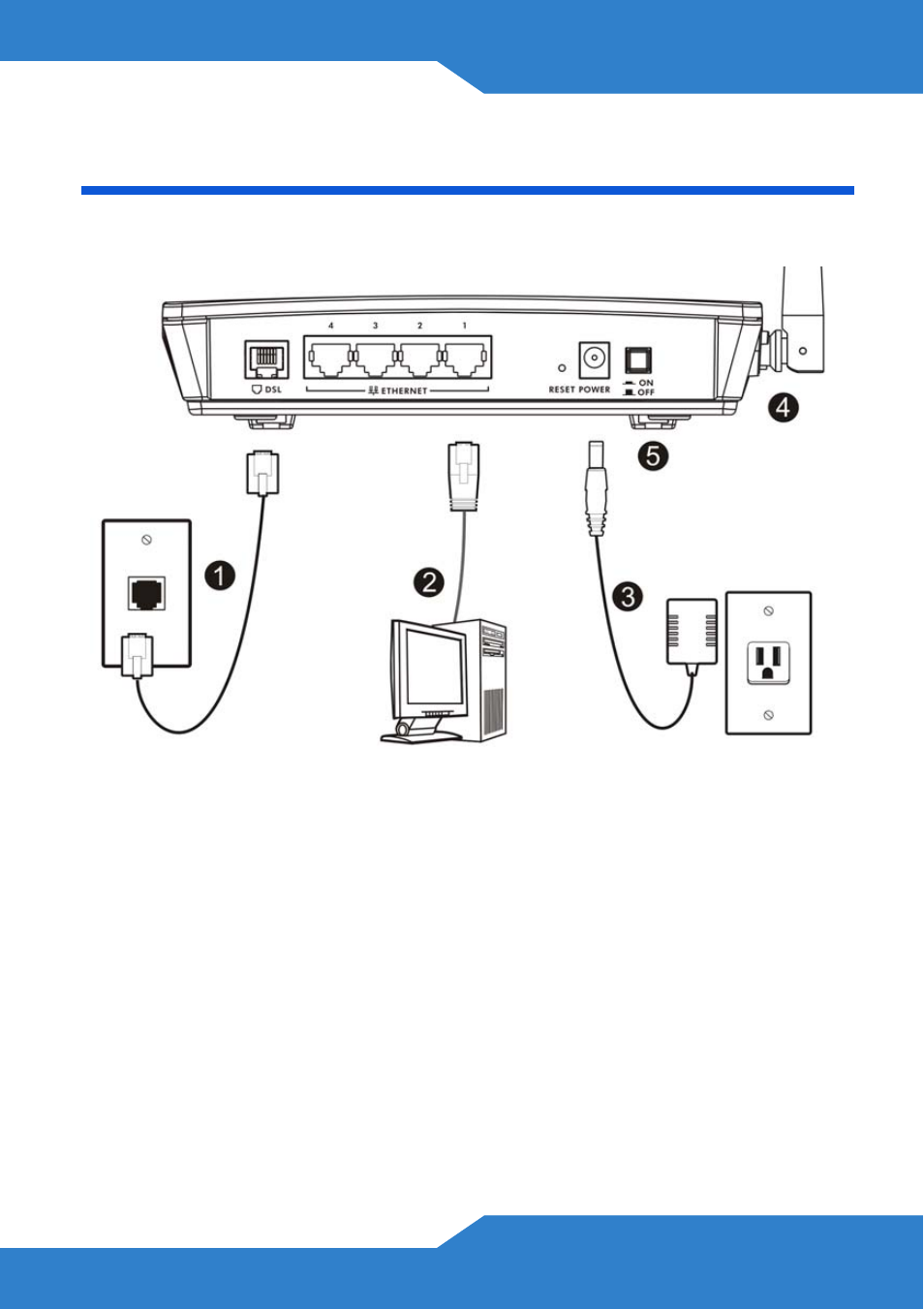

This section shows you how to set up your P-870H/HW-51a v2.
1. DSL: Use a telephone wire to connect this port to a telephone jack (or
the DSL or MODEM jack on a splitter, if one is already installed).
2. ETHERNET 1-4: Use an Ethernet cable to connect a computer to this
port for initial configuration and/or Internet access.
3. Use the power adaptor provided with your P-870H/HW-51a v2 to
connect an appropriate power source to this socket.
4. Attach the antenna onto the P-870HW-51a v2. The antenna is not
available on the P-870H-51a v2.
5. Push the power switch to the on position.
