P-660RU-Tx v2 Quick Start Guide
2 DSL: Use the gray telephone wire to connect your P-
660RU-Tx v2’s DSL port to a telephone jack (or to a
splitter, if one is already installed).
3 POWER: Use the power adaptor provided with your P-
660RU-Tx v2 to connect an appropriate power source to
the POWER socket. Make sure the power source is on.
4 Push in the POWER button.

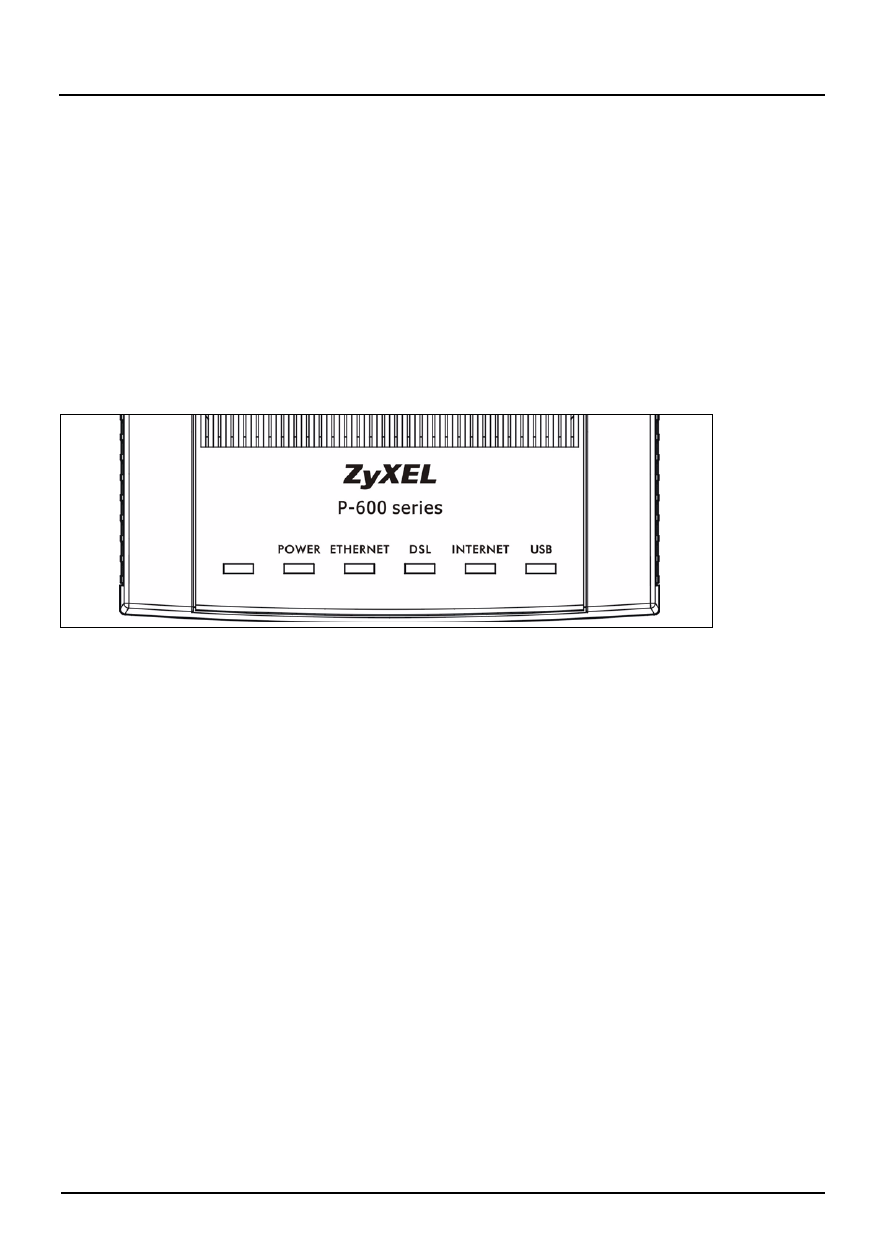

5 Look at the lights on the front panel.
• The POWER light blinks while your P-660RU-Tx v2 starts up
and stays on once it is ready.
• The DSL light is on when the P-660RU-Tx v2 has a DSL
connection.
• The INTERNET light is on when you are able to access the
Internet and blinks when the P-660RU-Tx v2 is sending or
receiving data.
• The ETHERNET light stays on if the corresponding ETHER-
NET port is properly connected and blinks when there is traf-
fic.
