Control Panel
Accessories
The Oven Cavity
Electric Grill Oven Light
FO 2653
Grill trivet
Grill/roasting pan
Removable
handles
Fitting the Splash back
A stainless steel splash back is supplied with the
appliance. This is meant to be fitted on the rear edge of
the cooker's hob. The splash back package is in the
oven cavity.
1. Unpack the splash back and dispose of the packaging
with due regard to safety and the environment.
2. Slide the two bayonets of the splash back into the
relevant supports on the rear edge of the cooker's
hob.
STOP
SET
TIME
PUSH
BOTH
- +
BACK LEFT FRONT LEFT FRONT RIGHT BACK RIGHT
GAS OVEN &
ELECTRIC GRILL GRILL TIMER
IGNITION
LIGHT

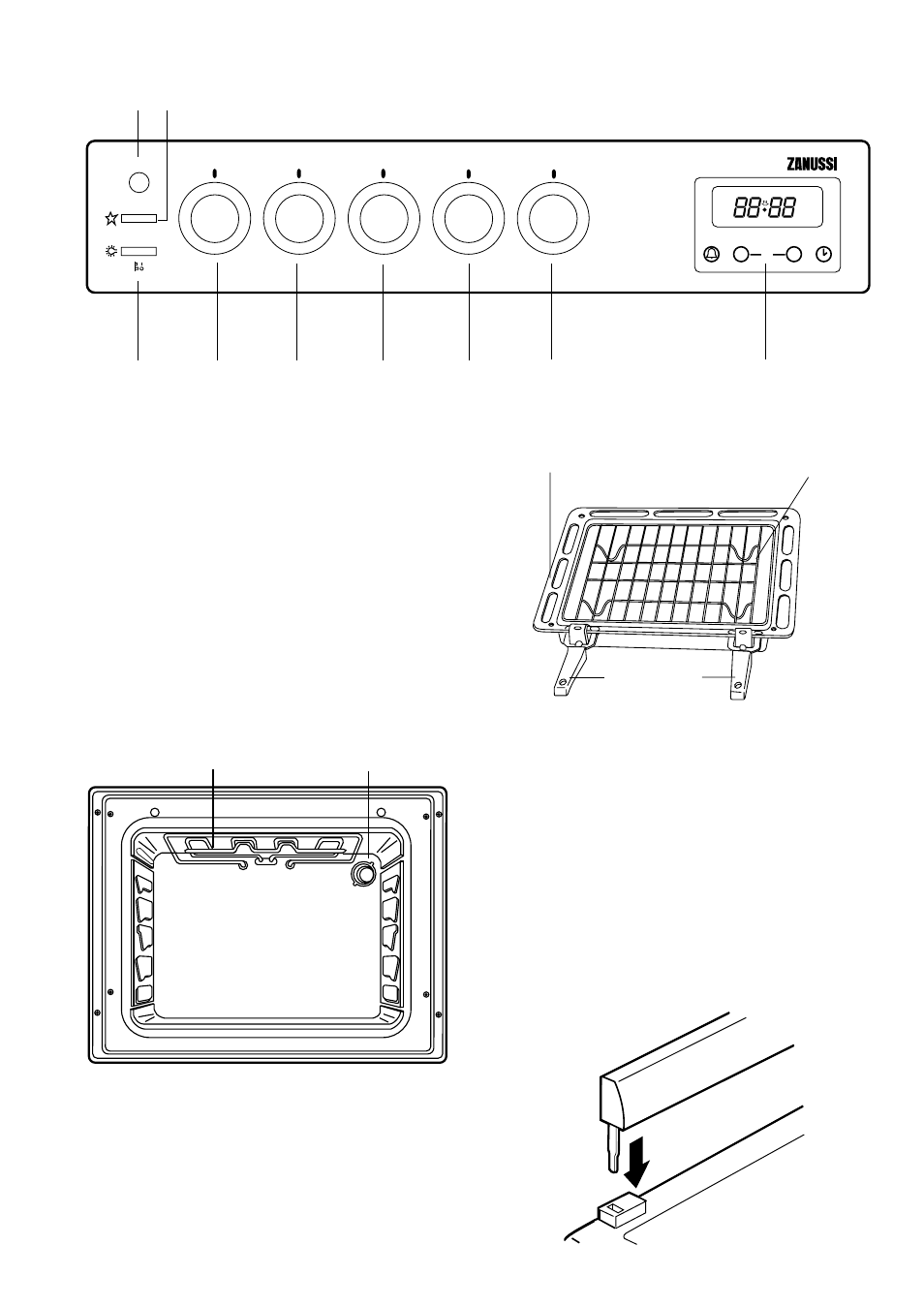

1. Grill function pilot light
2. Electric ignition push button
3. Oven Light push button
4. Back left burner control knob (semi-rapid)
5. Front left burner control knob (rapid)
6. Front right burner control knob (auxiliary)
7. Back right burner control knob (semi-rapid)
8. Oven function control knob
9. 24 hour clock
8 7 6 5
1 2
4 9 3
