4

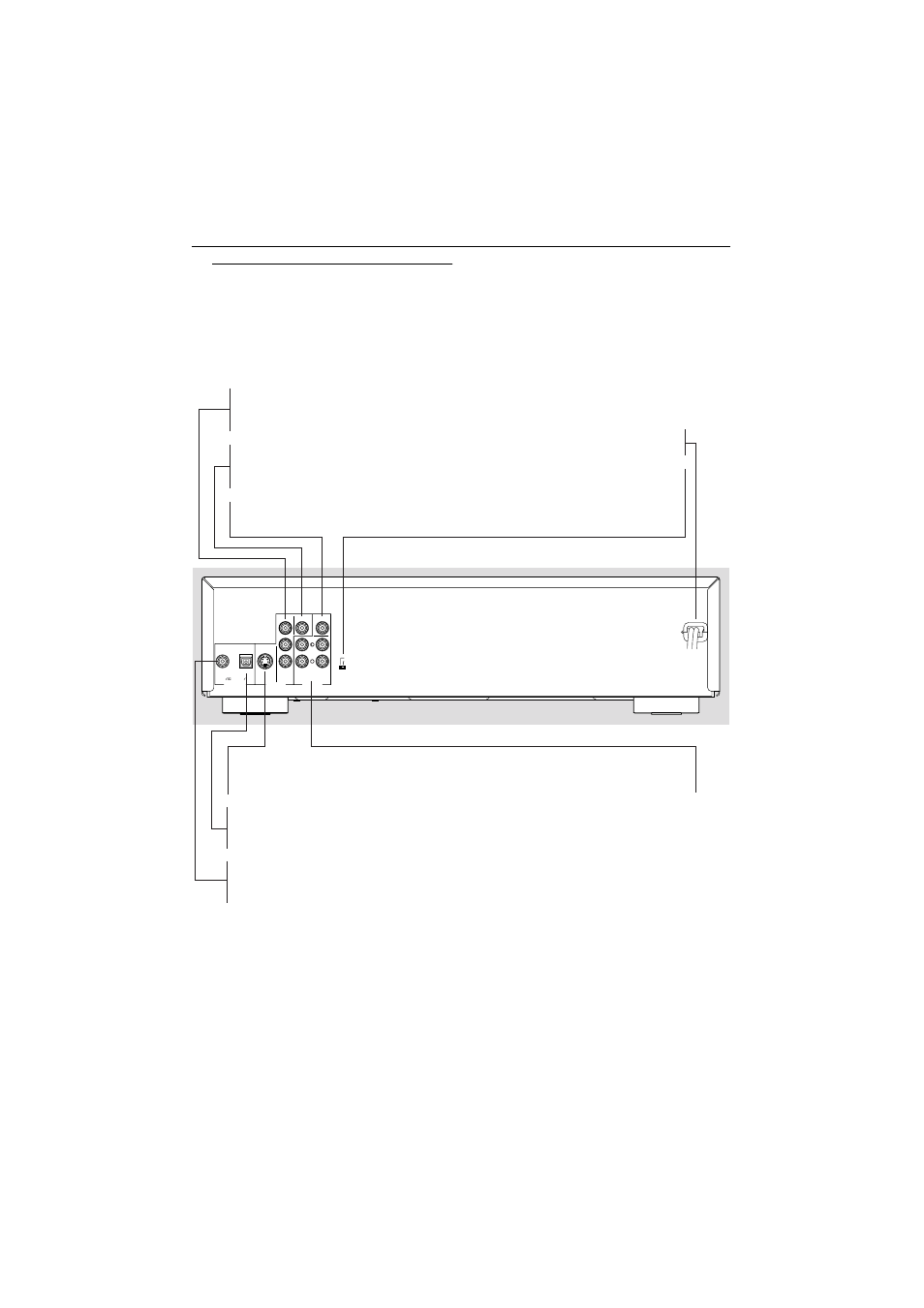

Rear Panel
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the player.
VIDEO OUT DIGITAL OUT AUDIO OUT
S VIDEO PCM DTS DIGITAL
COAXIAL OPTICAL
R
SUB WOOFER
COMPONENT
SCAN MODE
VIDEO
PR
PB
Y
1 2
480p
480i
SUBWOOFER
AUDIO OUT
– connect to AUDIO inputs of your AV
receiver or stereo system
Progressive / Interlace SELECTOR
(NTSC only)
– to switch between Progressive or
interlace depending on your monitor
AC Power Cord
– connect to a standard AC outlet
VIDEO OUT - S VIDEO
DIGITAL OUT - OPTICAL
DIGITAL OUT - COAXIAL
– connect to an active subwoofer
– connect to COAXIAL input of your
AV receiver
– connect to OPTICAL input of your
AV receiver
– connect to S VIDEO input of your
AV receiver
VIDEO OUT - COMPONENT
VIDEO OUT - VIDEO
– connect to VIDEO (composite)
input of your AV receiver
– connect to COMPONENT VIDEO
input of your AV receiver
Functional Overview
