Yamaha RGX-420/S/-D6/DZ - Manual

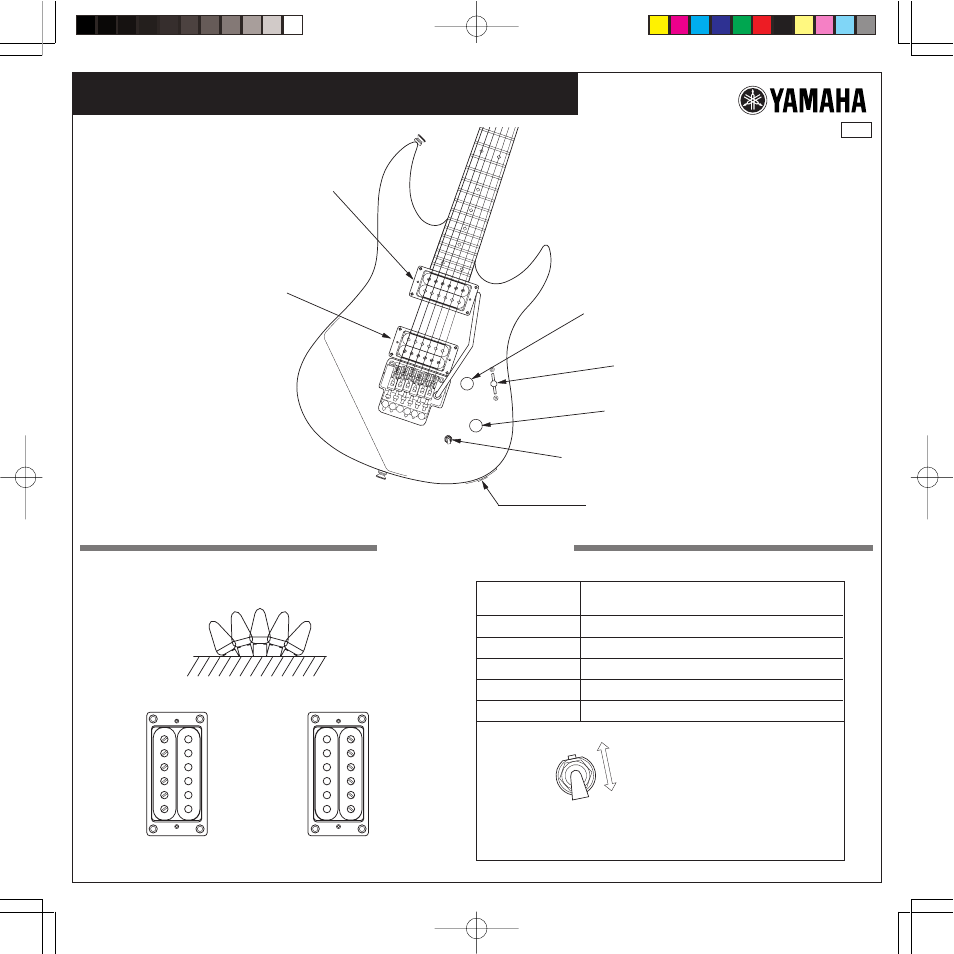

Selecting Pickups
[Pickup Selector]
Front
Pickup
Rear
Pickup
(R1) (R2)
Bridge Side → ← Neck Side
1
2 3
5
4
1 F1 + F2 (Regular Humbucker)
2 F1 + F2 (Parallel Connected)
3 F1 + F2 + R1 + R2
4 F1 + R1
5 R1 + R2 (Regular Humbucker)
Effective Pickup Coil
Pickup Selector
Position
When the direct switch is on, the master
volume, master tone and front pickup are
completely bypassed.
The result is rear humbucker only with full.
This is regardless of the pickup selector
position.
[Function of Direct Switch]
QC60980 0009
Printed in Taiwan
(F1) (F2)
OFF
ON
Output Jack
Master Volume Control
Pickup Selector
Front Pickup
Rear Pickup
Master Tone Control
Direct Switch
