Connections
Connect the analog audio output jack on your portable
audio player to the AUX 3 input jack on the front panel of
this unit.
3.5 mm stereo mini plug cable
Connect the monaural input jack on your subwoofer to the
SUBWOOFER OUT jack on this unit.
This connection alone does not output sound from the
connected subwoofer. To output sound from the connected
subwoofer, turn on the power of your subwoofer and then
run AUTO SETUP (see page 29) or select SUBWOOFER
for BASS OUT in SUBWOOFER SET (see page 80).
Subwoofer pin cable

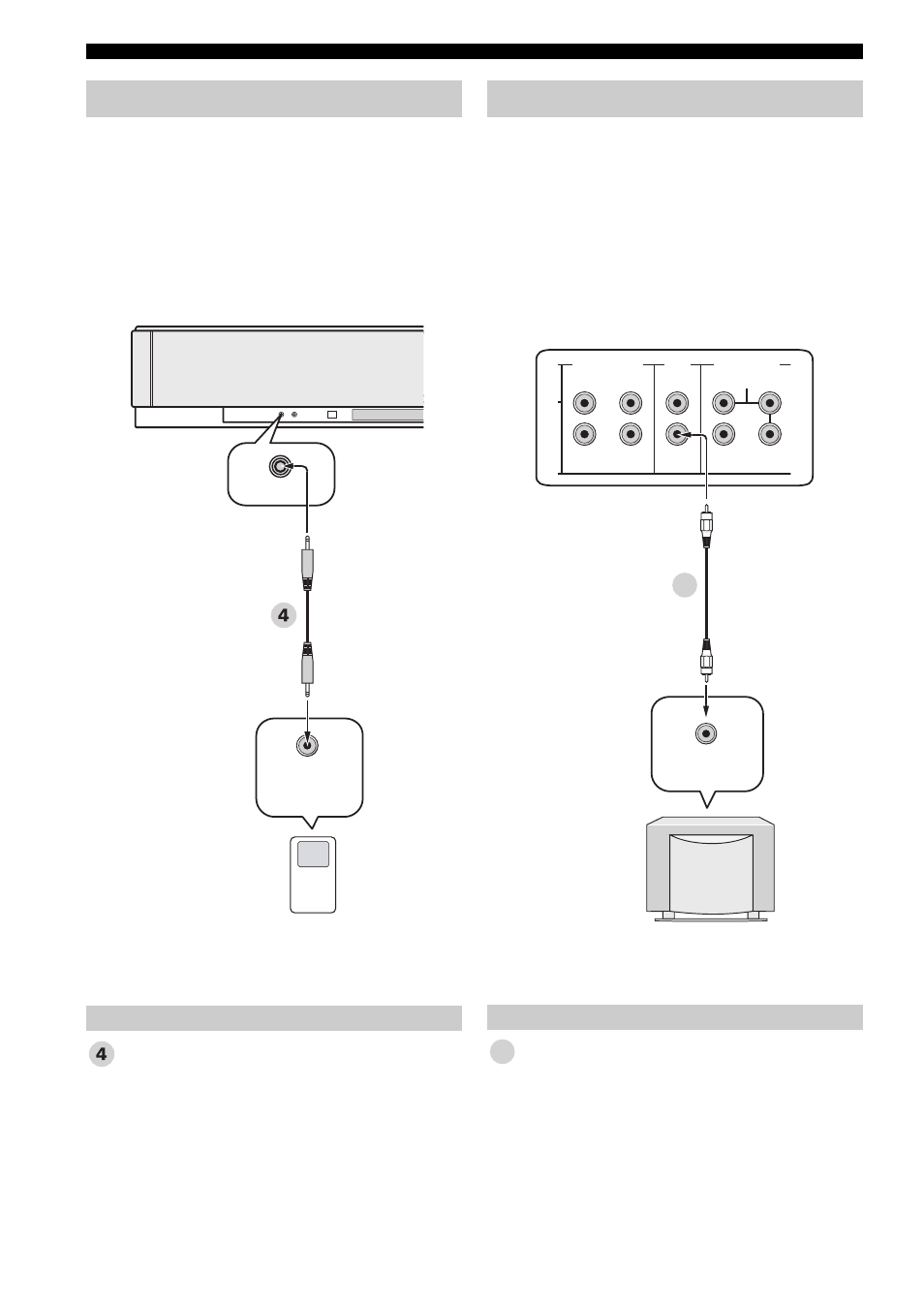

Connecting a portable audio player
Audio
AUX 3
Portable audio player
Front panel of this unit
Analog
audio
output
Connecting a subwoofer
Audio
VIDEO INPUT
VIDEO COMPONENT
SUBWOOFER AUX 1 TV/STB STB DVD
OUT AUDIO INPUT
5
Monaural
input
Subwoofer
Rear panel of this unit
5
