21
En
Connections
PREP
ARA
TION
English
For audio connection, connect the analog audio output jacks on your TV to the TV/STB AUDIO INPUT jacks on this
unit. If your TV has an optical digital output jack, connect the optical digital output jack on your TV to the TV/STB
OPTICAL DIGITAL INPUT jack on this unit.
For video connection, connect the video input jack on your TV to the VIDEO OUT jack on this unit to display the OSD
for easy viewing when you adjust the system parameters in SET MENU.
y
To prevent the optical cable from being unplugged, affix the optical cable in the supplied cable clamp (see page 17).
If you make analog and optical digital audio connections at the same time as shown in the illustration below, the digital audio signals
input at the TV/STB OPTICAL DIGITAL INPUT jack take priority over the analog audio signals input at the TV/STB AUDIO INPUT
jacks.

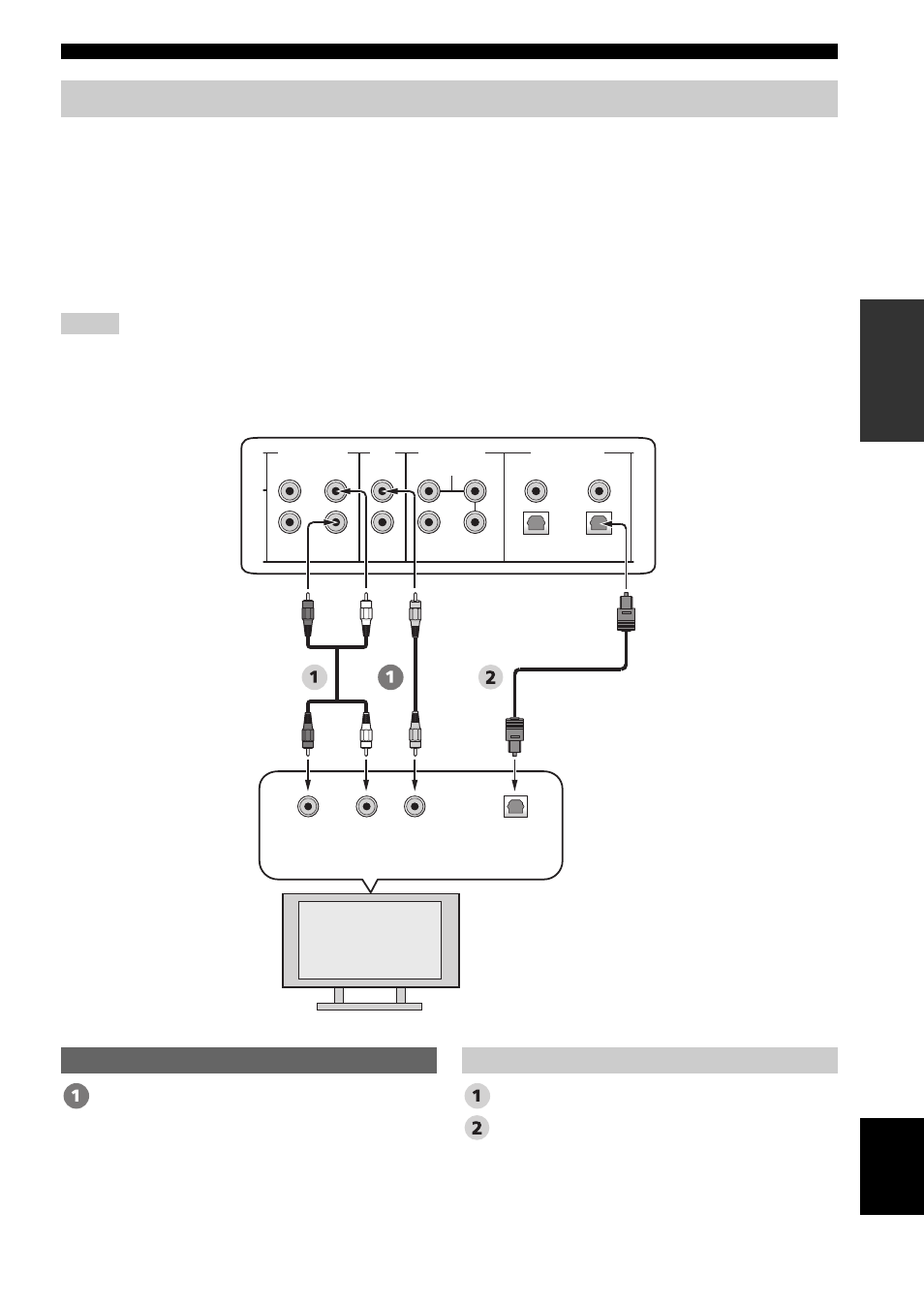

OSD video pin cable Audio pin cable
Optical cable
Connecting a TV without an HDMI cable
Notes
DIGITAL INPUT VIDEO INPUT
VIDEO COMPONENT AUX 2 DVD
SUBWOOFER AUX 1 TV/STB STB DVD TV/STB
COAXIAL
OPTICAL
AUX 1
OUT AUDIO INPUT
Rear panel of this unit
TV
Optical
digital
output
R L
Video
input
Analog audio
output
Video Audio
