5
EM-412 User’s Guide
2 Cable Connectivity
"

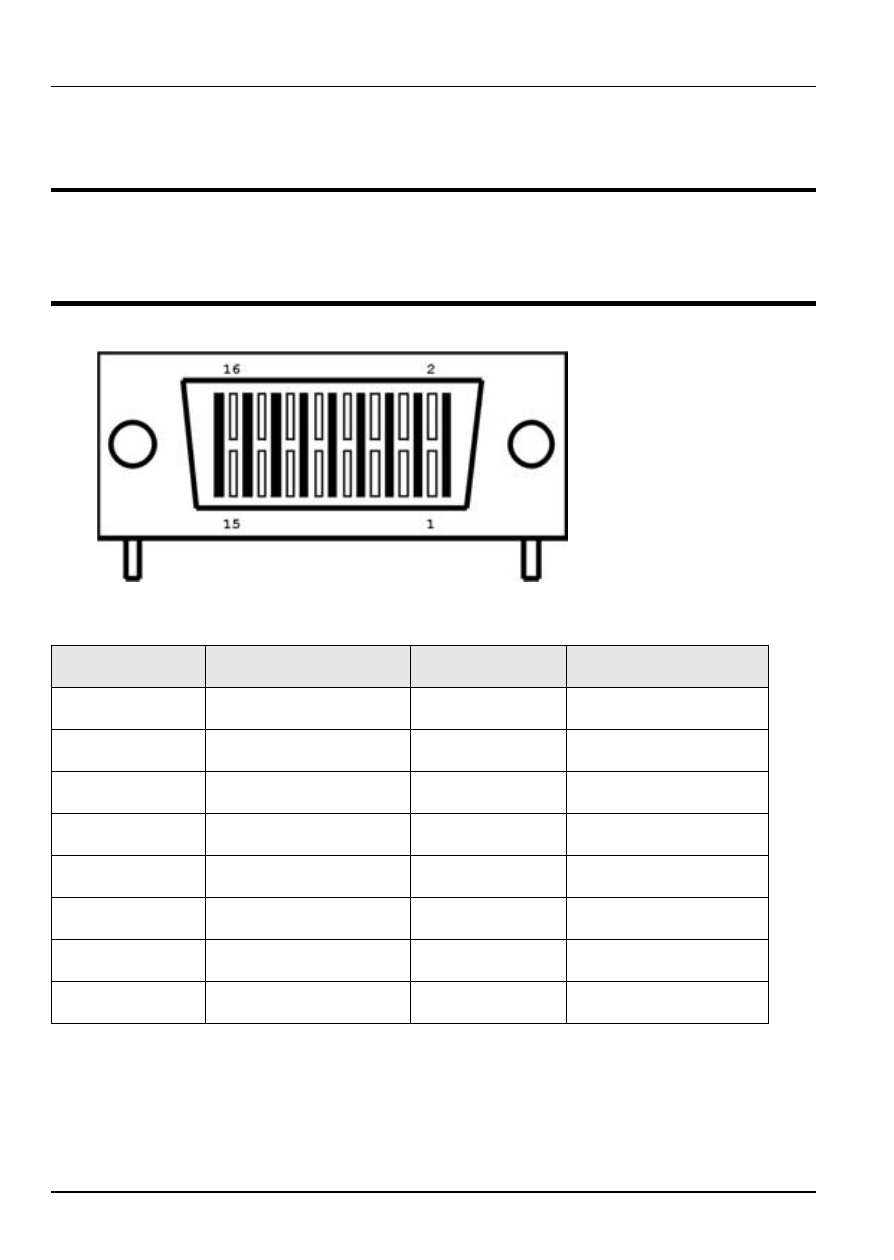

Use the correct 10GBase-CX4 cable with the correct
PIN assignment.
The following table lists the components on the main board.
Pin Number Signal Name Pin Number Signal Name
1 RX+0 9 TX-3
2 RX-0 10 TX+3
3 RX+1 11 TX-2
4 RX-1 12 TX+2
5 RX+2 13 TX-1
6 RX-2 14 TX+1
7 RX+3 15 TX-0
8 RX-3 16 TX+0
