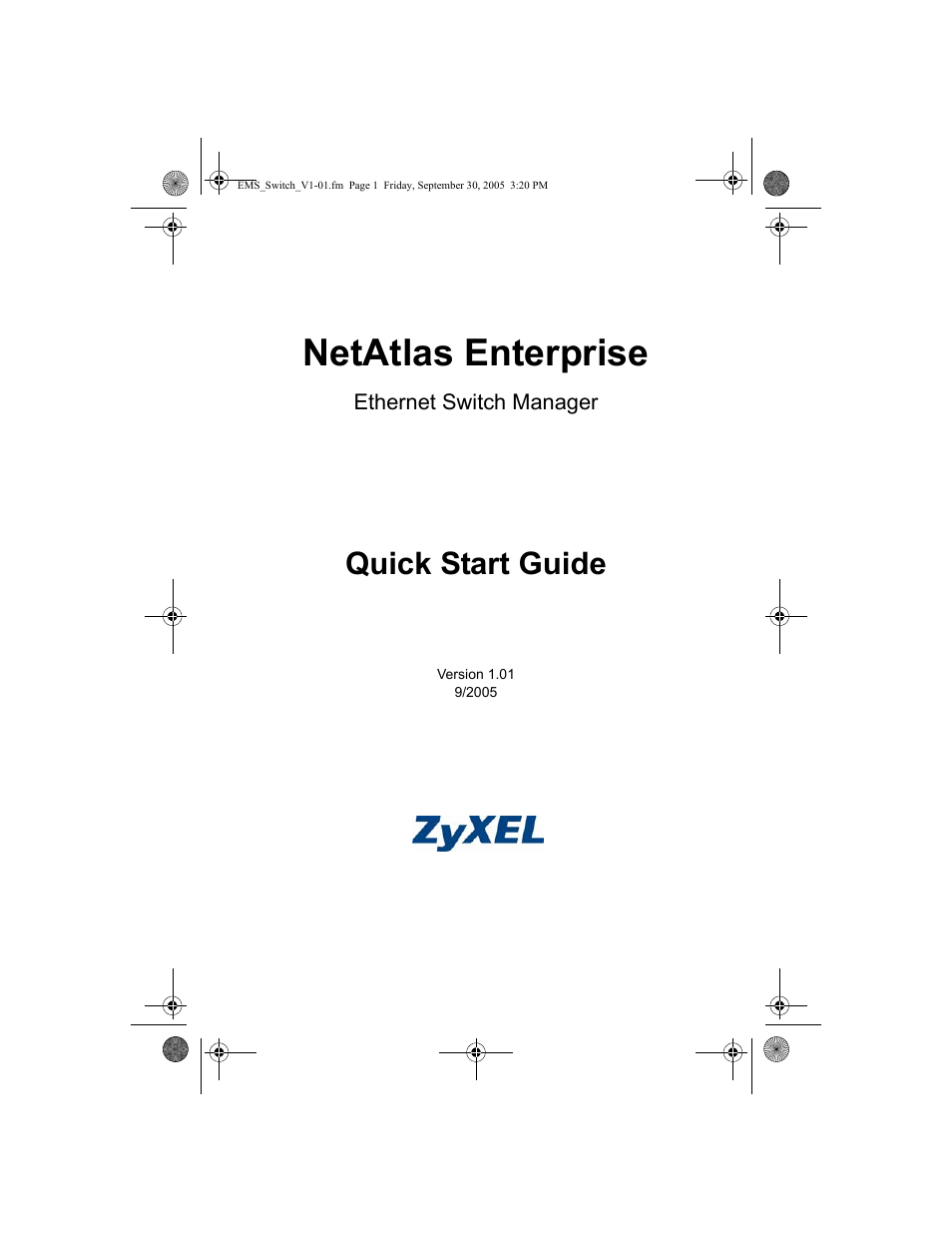

Netatlas enterprise, Quick start guide
Table of contents
Document Outline
- Quick Start Guide
- 1 Introduction
- 2 System Requirements
- 2.1 Device and Firmware Versions Supported
- 2.2 EMS Installation Overview
- 1 Install SNMPc. See the documentation that comes with your SNMPc for information.
- 2 Install the EMS. The PostgreSQL database will be installed during the EMS installation.
- 3 Add custom MIB files in SNMPc.
- 4 Locate device(s) that you want the EMS to manage.
- 5 If required, configure the ODBC driver to connect to the database.
- 3 Installing the EMS
- 1 Install SNMPc if it is not already installed. See the user’s guide for more information.
- 2 Find and double-click NetAtlasEnterprise_S101.exe on your EMS CD.
- 3 A Welcome screen displays. Click Next to continue.
- 4 Read the license agreement. Click Yes to accept the agreement.
- 5 Type your name and company name in the following screen. Click Next to continue.
- 6 You must select the same directory where you installed SNMPc. Click Browse if it’s different from the destination folder shown.
- 7 In the next screen, click Next to begin the installation and start copying files.
- 8 The installation program will proceed to install PostgreSQL if you have not already installed it. This may take a few minutes.
- 9 When the installation process is complete, a screen displays as shown. Click Finish.
- 4 SNMPc Network Manager Startup
- 5 Adding MIBs
- 1 From the SNMPc Network Manager main screen, click Config, MIB Database.
- 2 In the Compile Mibs screen that displays, scroll down to the bottom of the Mibs to Compile list box and click Add.
- 3 Select the following MIBs in the Add Mibs list box:
- 4 Click OK.
- 5 Click Compile in the Compile Mibs screen.
- 6 Click Yes when asked to confirm, then click OK.
- 7 Finally click Done in the Compile Mibs screen.
- 6 Finding your Switch
- 7 Using SNMP
- 1 Right-click the Device icon and select Properties.
- 2 Click the Access tab.
- 3 Set the specified fields in the Map Object Properties screen exactly as shown in the figure.
- 4 Click OK. After the device has been found, the icon and label appear in the network manager view window.
- 5 Right-click on the device icon to view a set of SNMPc network manager shortcuts. Click Properties to verify the information you entered in the previous step.
- 6 Make sure the PostgreSQL database is running. PostgreSQL should start automatically when you start Windows. If it does not, click Start (or start), Programs, PostgreSQL 8.0 and then click Start service.
- 8 Accessing NetAtlas
- 9 Troubleshooting
- 1 SNMPc, EMS and/or PostgreSQL will not install properly
- 2 I cannot find my device in the SNMPc Management screen.
- 9.1 Configuring the ODBC Driver
- 1 Click Start, Settings and Control Panel to open the Control Panel screen. Double-click Administrative Tools.
- 2 Double-click Data Source (ODBC).
- 3 A screen displays as shown. In the User DNS screen, select PostgreSQL and click Configure.
- 4 The PostgreSQL ODBC Driver Setup screen displays. Configure this screen exactly as shown in the figure. The default password is “1234”.
- 5 Click Save to save the changes and close this screen.
