Dimension GS-1116A/GS-1124A Gigabit Switch
Hardware Description and Installation 2-7
)
Make sure the cable length between connections does not exceed 100
meters (328 feet).
2.4.5 Front Panel LEDs
The LEDs give real-time status information.

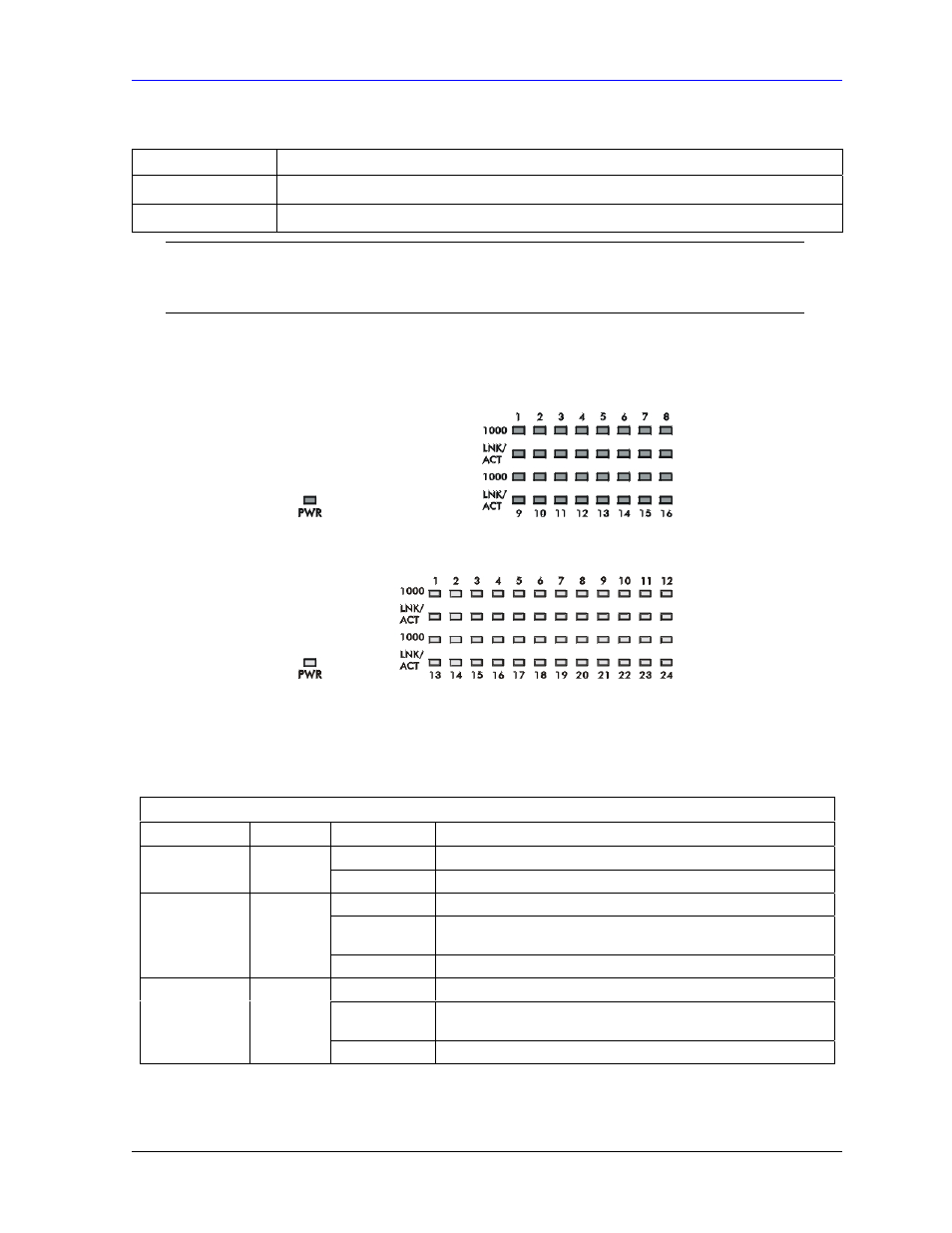

Figure 2-9 GS-1116A Front Panel LEDs
Figure 2-10 GS-1124A Front Panel LEDs
The following table provides LED descriptions.
Table 2-2 Network Cable Types
SPEED NETWORK CABLE TYPE
100Mbps 100Ω 2-pair UTP/STP Category 5
1000Mbps 100Ω 4-pair UTP/STP Category 5
Table 2-3 Front Panel LED Descriptions
SYSTEM
LED COLOR STATUS DESCRIPTION
On The switch is turned on and receiving power.
PWR
Green
Off The switch is off or not receiving power.
On A link to a 1000Mbps Ethernet device is up.
Blinking
A link to a 1000Mbps Ethernet device is up, and the port is
receiving or transmitting data.
1000
Green
Off The port is not connected to a 1000Mbps Ethernet device.
On The port is connected to a 10/100Mbps Ethernet device.
Blinking
A link to a 10/100Mbps Ethernet Device is up, and the port is
receiving or transmitting data.
LNK/ACT
Green
Off The port is not connected to a 10/100Mbps device.
