Dimension GS-1116A/GS-1124A Gigabit Switch
Hardware Description and Installation
2-5

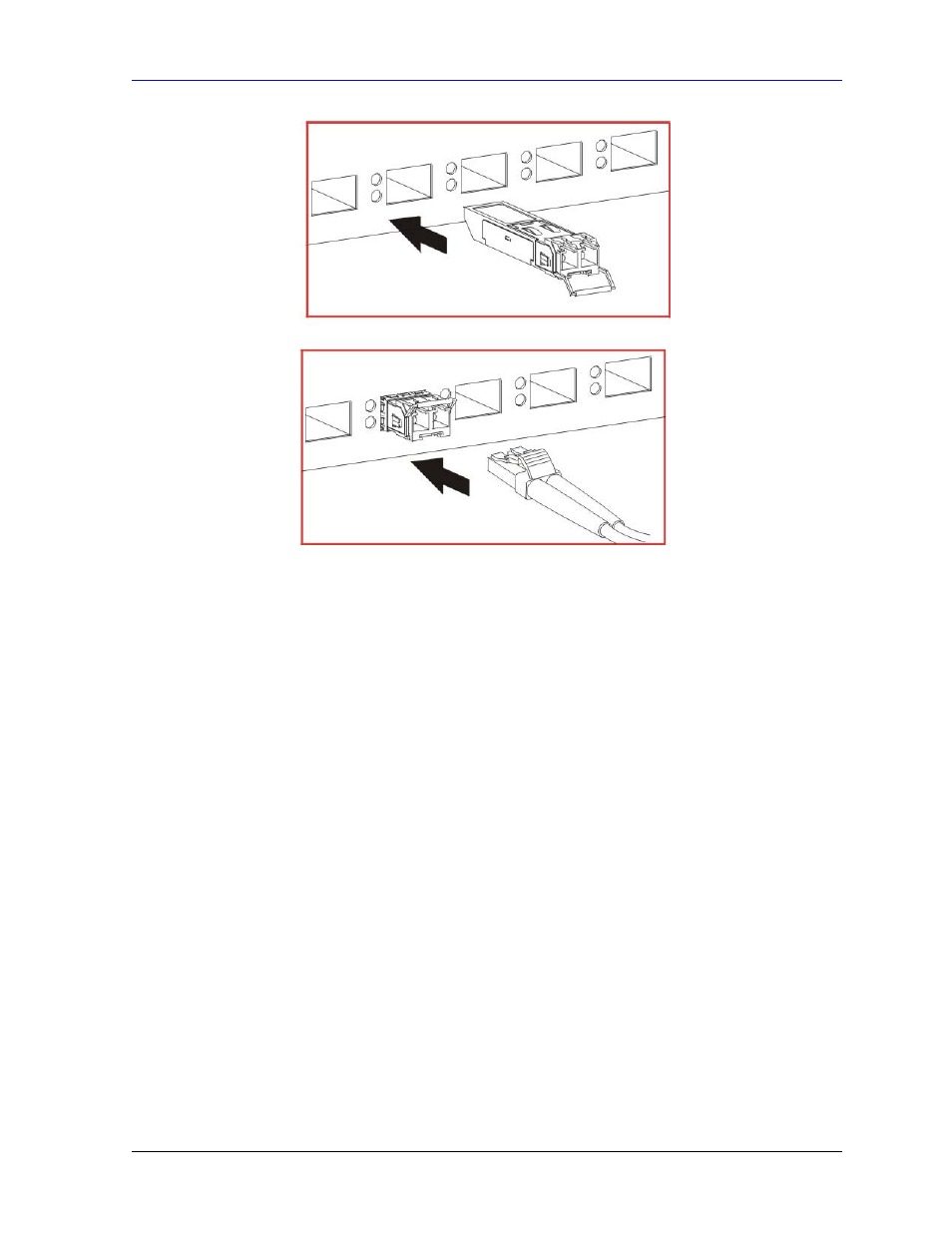

Figure 2-7 Transceiver Installation Procedure
Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module) from the GBIC port.
1.
Remove the fiber-optic cables from the transceiver.
2.
Unlock the transceiver’s latch (latch styles vary).
3.
Pull the transceiver out of the slot.
4.
Put the transceiver’s dust cover on the transceiver.
