Yazoo/Kees ZHDD61270 - Manual (Page 16)

14
CONTROLS
Engaging the Mower Deck
In order to engage the mower deck, pull the
knob out; the mower deck is disengaged
when the knob is depressed.
Deck should be engaged at mid throttle and
disengaged at idle speed to prolong clutch
life.
Parking Brake
The parking brake is found on the left of the
machine. Pull the lever back to activate the
brake and push forward to release it.
Seat Adjustment
Located on the left side of the seat is the seat
adjustment lever. Pull outward to slide the
seat either forward or backward.
Suspension resistence (weight) can be
adjusted at the front of the seat.
Backrest tilt and lumbar support can also be
adjusted using dials on the sides of the seat.

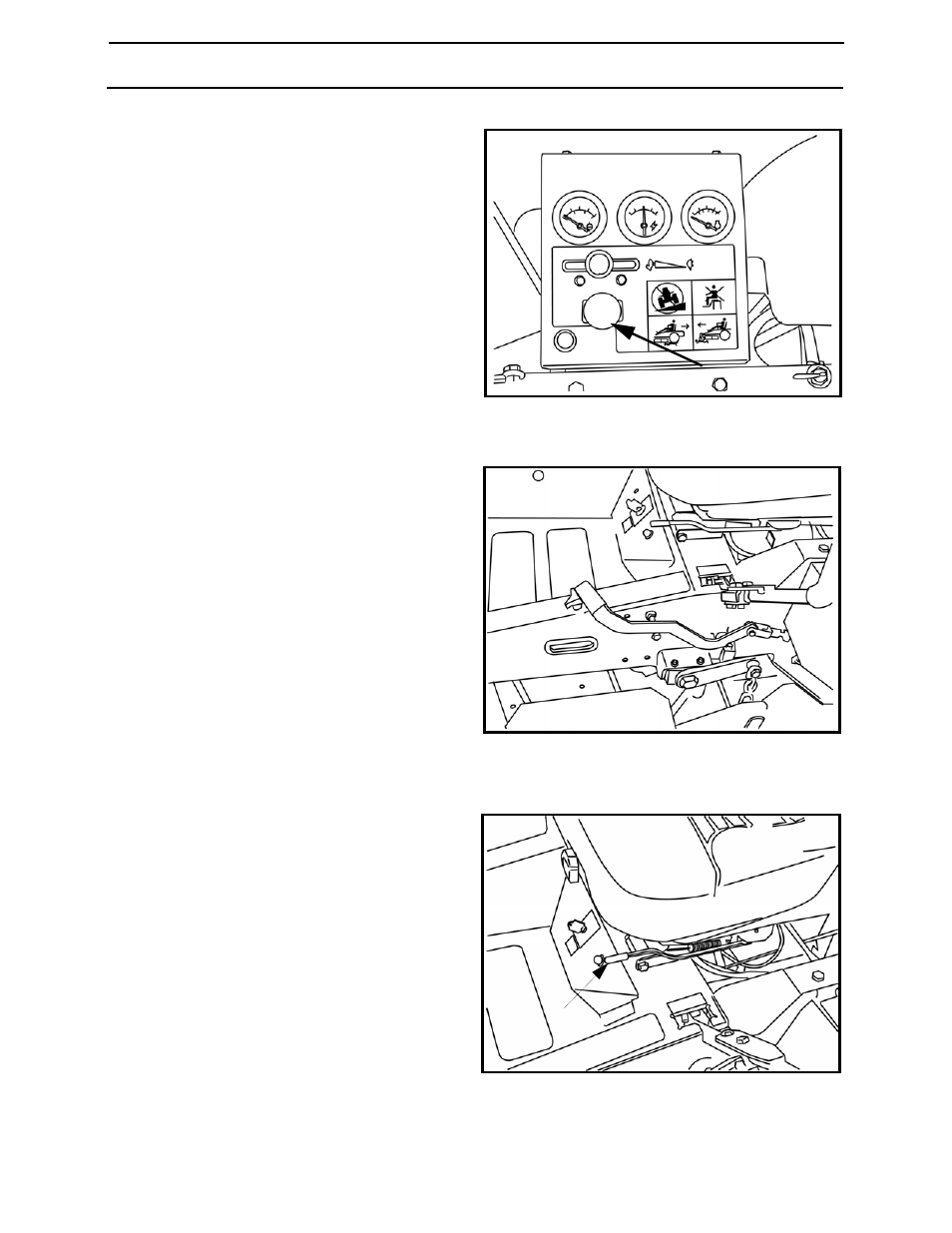

Engaging the mower deck
BAM-2
Parking brake not activated
BAM-4
Seat Adjustment Lever & suspension adjustment
BAM-5
