12
CONTROLS
Presentation
This operator’s manual describes the
Husqvarna Lever-Steered Rider Mower. The
mower is fitted with a liquid cooled, 3 cylinder
Daihatsu diesel engine (27 HP) or Daihatsu
Turbo diesel engine (34 HP).
Transmission from the engine is made via two
belt-driven hydraulic pumps, which in turn
drive a hydraulic motor for each drive wheel.
Using the left and right steering controls, the
flow is regulated and thereby the direction
and speed.

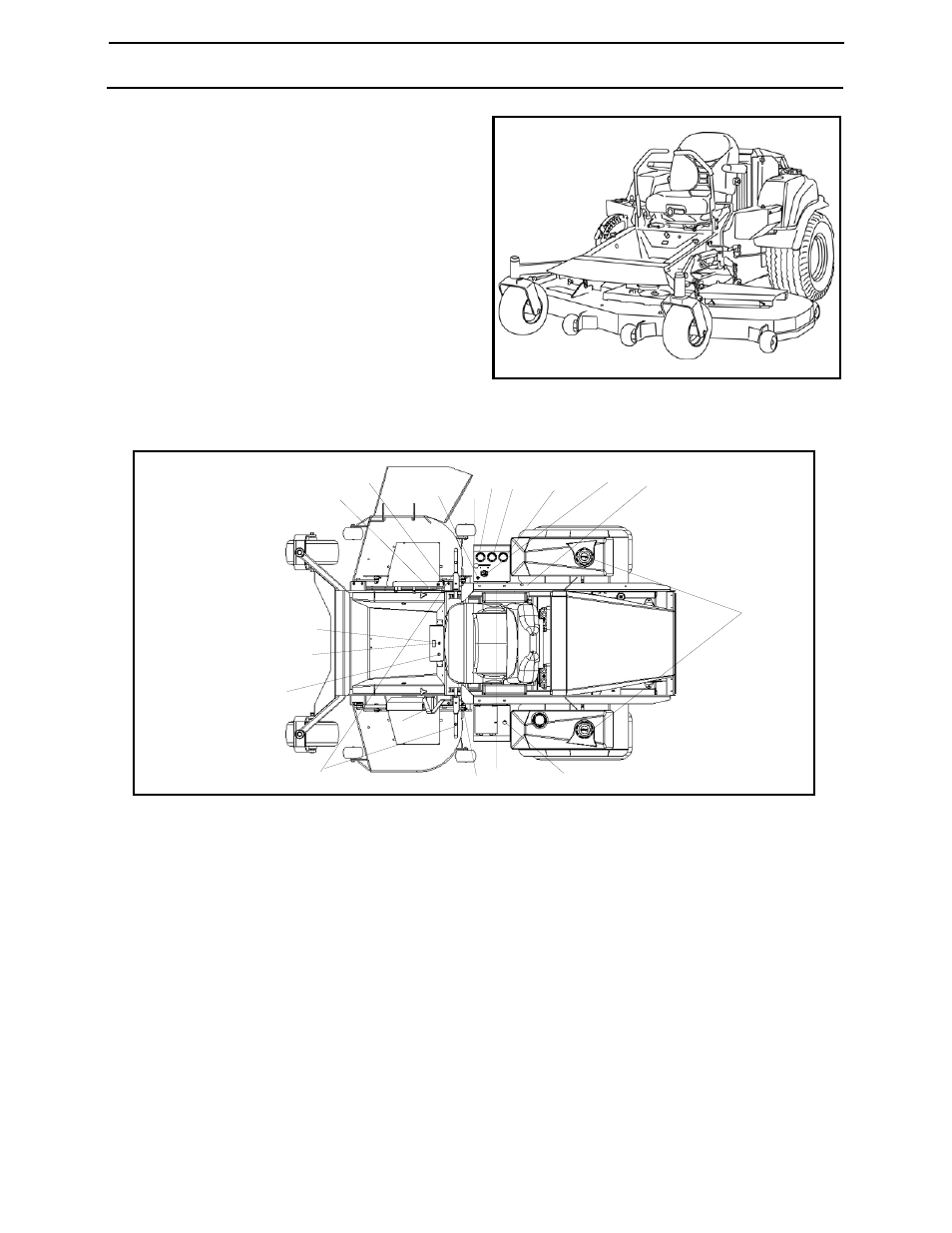

Component Locations
BAM-1
Lever-Steered Rider
Component Locations
10
1
2
3
4
5
6
7
8
9
11
12
13
14 15 16 17
18
1. Steering control left & right
2. Hour meter
3. Parking brake
4. Control for engaging the mower deck
5. Ignition
6. Relays
7. Glow plug lamp
8. Fuel tank caps
10. Seat adjustment lever
11. 12V DC adapter
12. Throttle- regulates the engine speed
13. Cutting height adjuster
14. Manual deck lift
15. Water temperature gauge
16. Ammeter gauge
17. Oil pressure gauge
18. Hydraulic deck lift switch
9. Fuel shut-off
