Selecting the I/O Source for the DS2416
11
AX16-AT—Owner’s Manual
Selecting the I/O Source for the DS2416

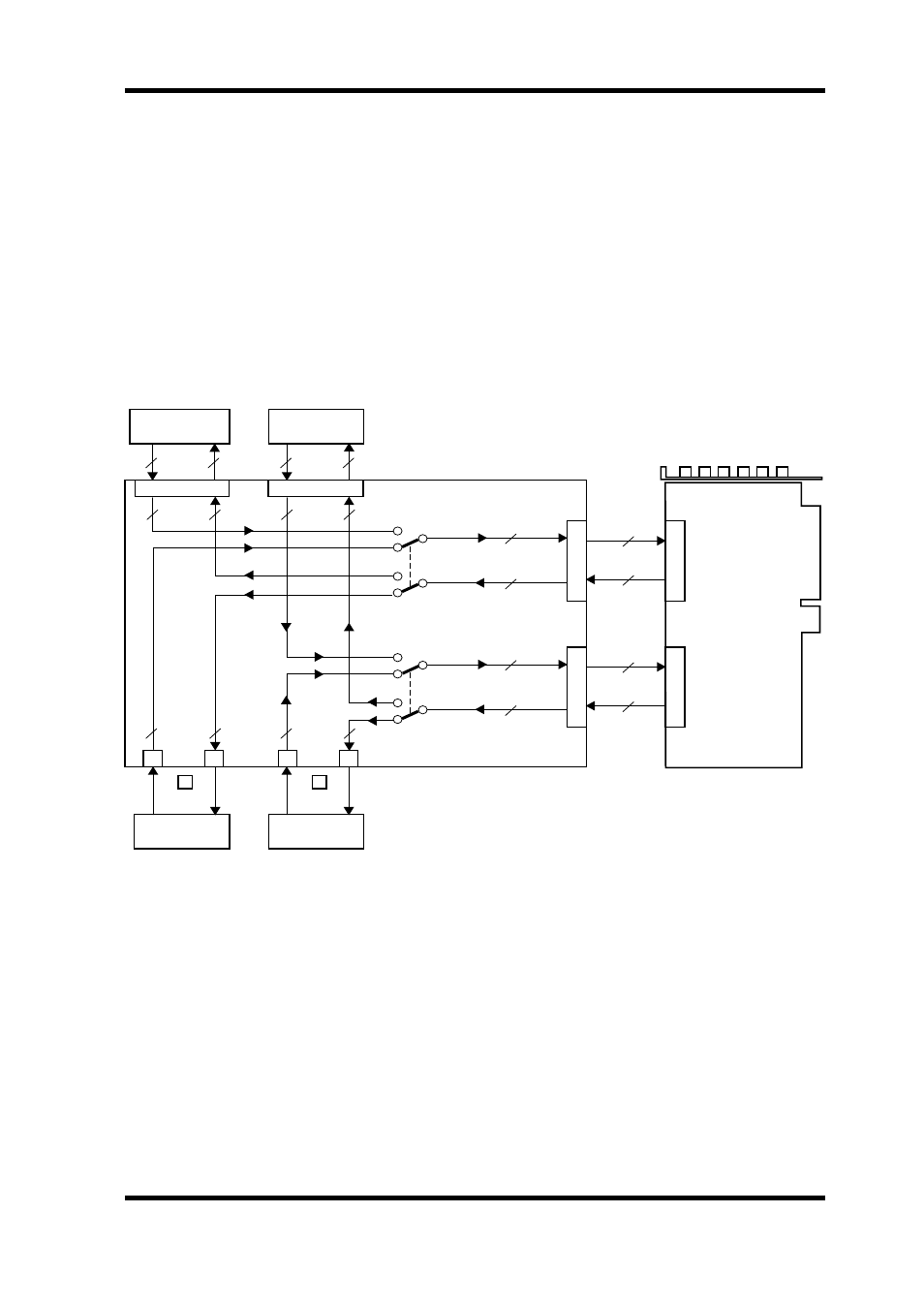

The ADAT/THRU switches select the input and output sources for the IO-A
and IO-B connectors on the DS2416. In the ADAT position, the DS2416
receives and transmits signals via the ADAT IN and OUT connectors on the
AX16-AT, as shown in the following diagram. In the THRU position, the
DS2416 receives and transmits signals via the AX44s. IO-A and IO-B can be
switched independently.
The lines from the DS2416 are labeled “4 or 8” because they carry four audio
channel when set to THRU (i.e., AX44) and eight channels when set to ADAT.
A B
THRU-A
ADAT/
THRU-B
THRU-B
4 4
4 4
4 4
4 4
8 8 8 8
AX44-B AX44-A
4 or 8
4 or 8
ADAT/
THRU-A
4 or 8
4 or 8
4 or 8
DS2416
AX16-AT
IO-A
IO-B
IO-A
IO-B
4 or 8
4 or 8
4 or 8
IN OUT IN OUT
ADAT-B ADAT-A
