8
Building In
30
20 min 60
a
b
FO 1013
Building over a cupboard or drawer
If the hob is to be installed above a cupboard or
drawer it will be necessary to fit a heat resistant
board below the base of the hob on the
underside of the work surface.

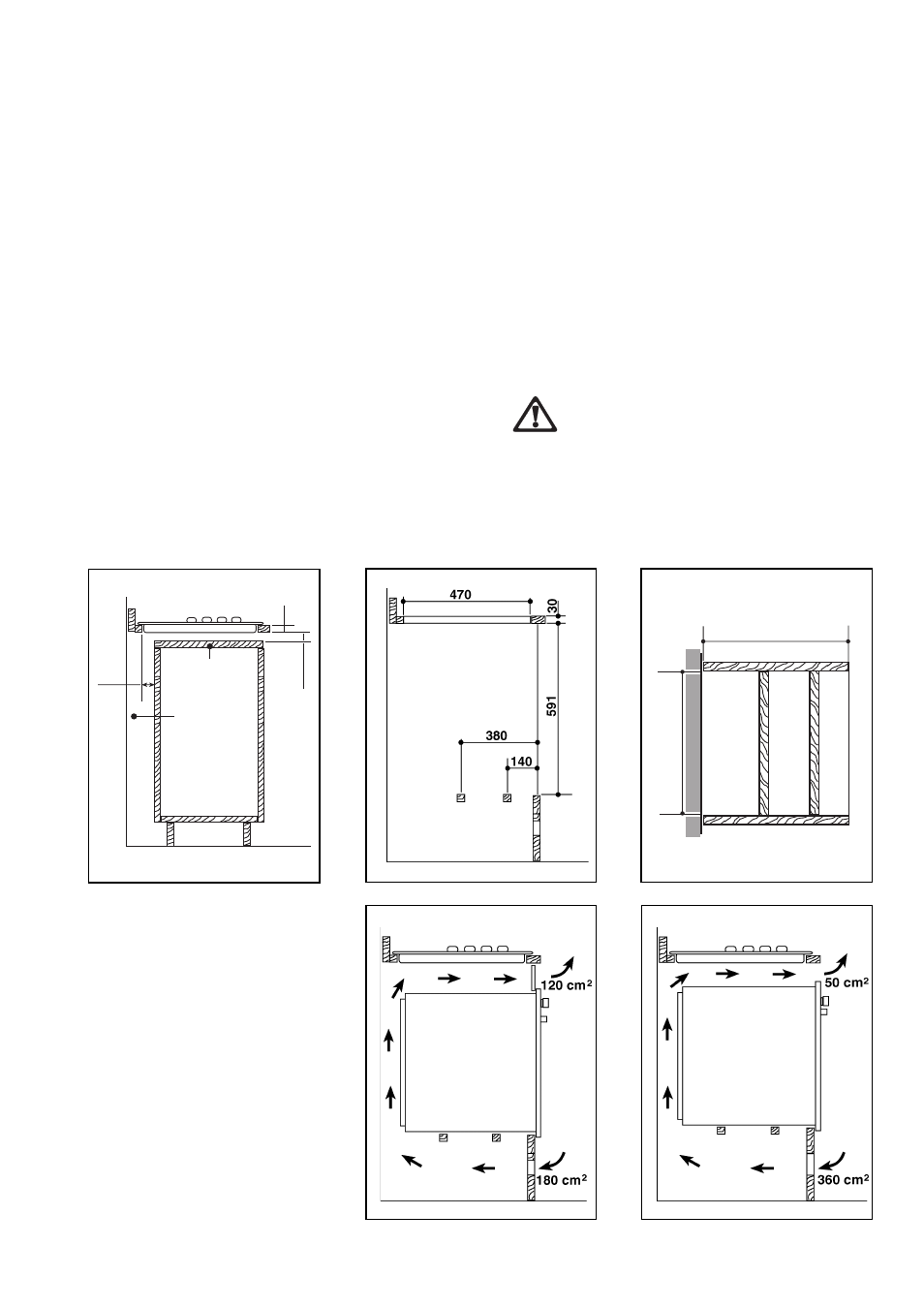

Building over a kitchen unit with
door
Proper arrangements must be taken in
designing the furniture unit, in order to avoid
any contact with the bottom of the hob which
can be heated when it is operated. The
recommended solution is shown in diagram 1.
The panel fitted under the hob ("a") should be
easily removable to allow easy access if
technical assistance is needed. The space
behind the kitchen unit ("b") can be used for
connections.
a) Removable panel
b) Room for connections
550 min.
560 min.
FO 0947
FO 0939 FO 0938
FO 0198
Building over a kitchen unit with
oven
If the hob is built into a kitchen unit with an oven
underneath, the recess must have the
dimensions shown in diagrams 2 and 3, and
should also incorporate suitable oven
crosspiece supports to ansure an efficient
cooling air circulation.
Diagrams 4 and 5 give two building-in
examples.
The electric connection of the hob and
the oven should be carried out
separately, for electrical safety reasons
to permit easy extraction of the oven
from the front part of the kitchen unit.
1 2 3
4 5
