Page 6

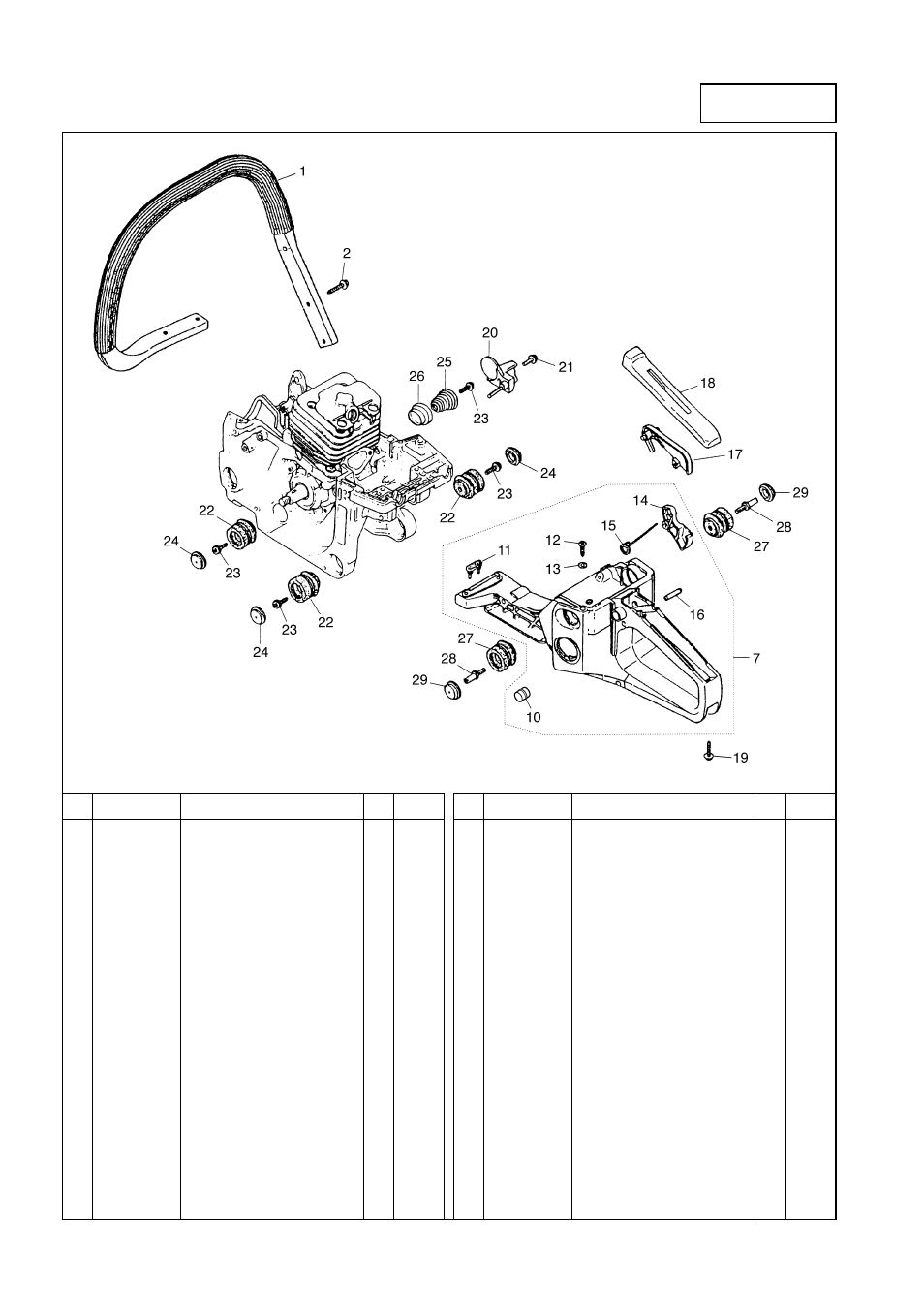

Fig.3 HANDLE
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1
2880-32101 Left handle comp.
1
2
8488251901 Screw M5x19 BT
4
7 848C803308 Right handle assy
1
10 848C8033Y0 • PLUG
1
11
2810-33280 • Damper (A)
1
12
2670-75520 • Screw
1
13
2810-33211 • Gasket
1
14
2670-33311 • Throttle lever
1
15
3356-33321 • Throttle spring
1
16 04025-00524 • Spring pin ø5.2x24
1
17 848C3033E3 Arm
1
18
2670-34110 Grip cover
1
19
8488251901 Screw M5x19 BT
1
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
20
2810-25210 Chain catcher
1
21
2670-14320 Screw M5x14
1
22
2880-35111 Damper
3
23
8488251601 Screw M5x16 BT
4
24
2810-35150 Damper cap
3
25
2881-35110 Spring
1
26
2881-35120 Spacer
1
27
2880-35211 Damper
2
28
3350-35170 Bolt
2
29
2880-35250 Cap
2
G4500
