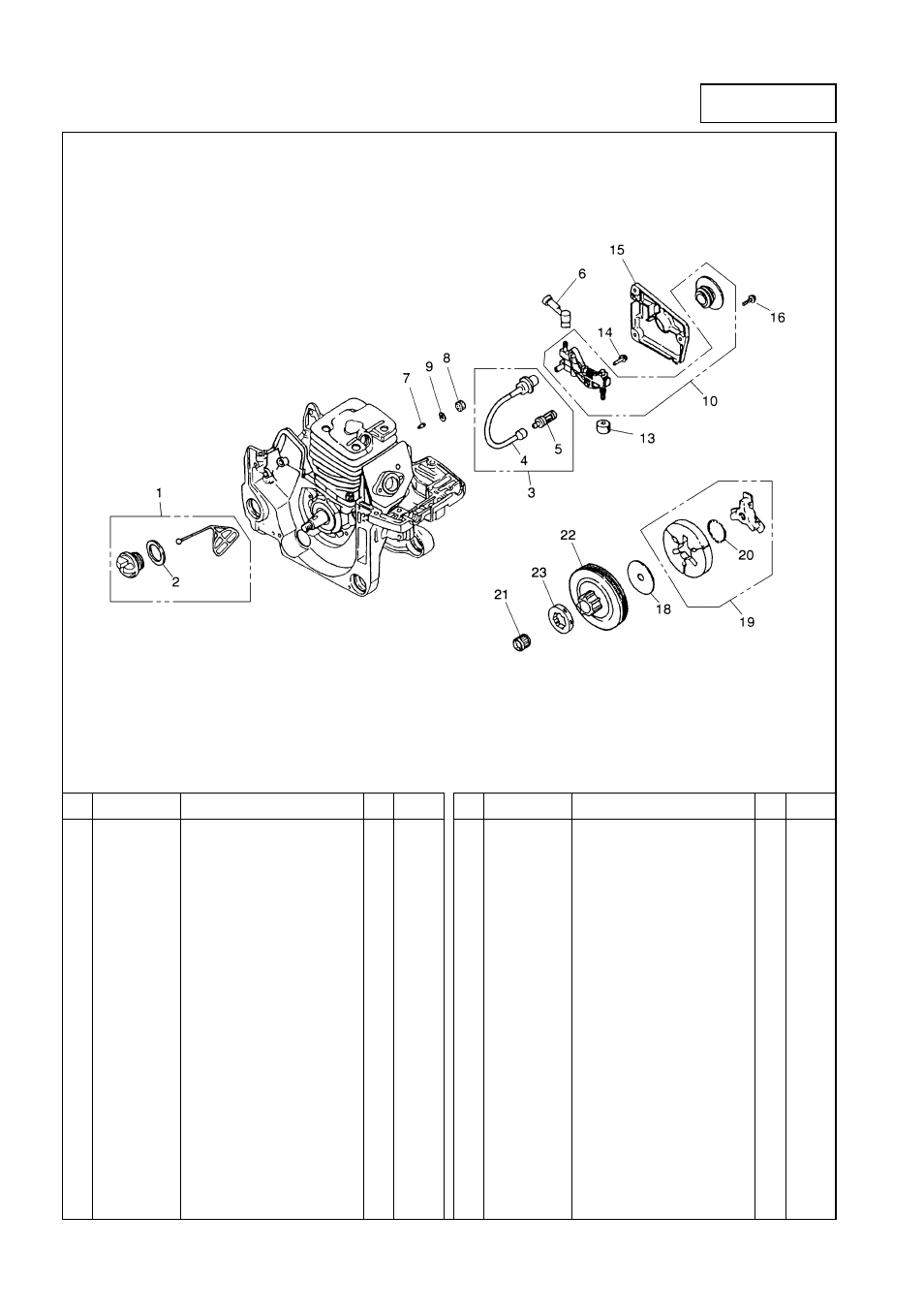

Fig.5 OIL SYSTEM, CLUTCH

Q'TY

Key# PART NUMBER

DESCRIPTION

NOTE

/UNIT

1 848C108512 Oil cap assy

1

2

2841-31820 • Gasket, cap

1

3

2670-23101 Oil pipe compete

1

4

2670-23120 • Pipe

1

5

2670-23131 • Oil filter

1

6

2670-23210 Pipe

1

7

3330-23121 Valve

1

8

3350-26220 Seal

1

9

3350-26230 Clip

1

10 848CA66700 Oil pump assy

1

• Oil pump

1

• Worm Gear

1

13

2670-55220 Seal

1

14

2670-55410 Screw M4x14

2

15

2670-55610 Pump cover

1

16

2670-55410 Screw M4x14

3

18

2670-51210 Plate

1

Q'TY

Key# PART NUMBER

DESCRIPTION

NOTE

/UNIT

19 848C805121 Clutch assy

1

20

3317-51231 • Spring

1

21

2810-51310 Needle bearing 12x15x14

1

22

2880-51110 Clutch drum

1

23

3350-51121 Rim 325P

1

G4500
