G5200, Fig.6 carburetor – Zenoah G5200 User Manual
Page 13

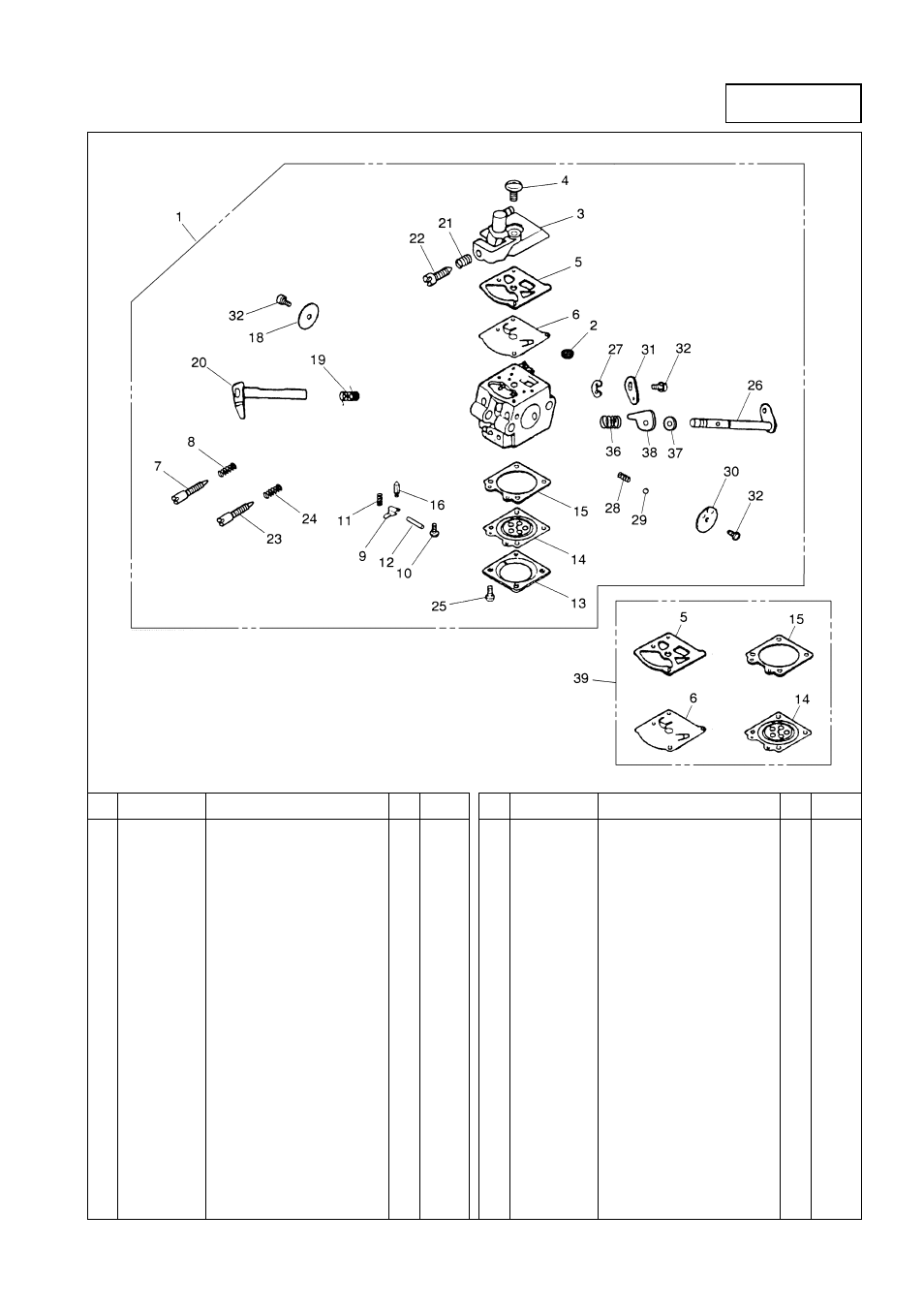

Fig.6 CARBURETOR
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1 848C8A8102 Carburetor assy
1
WT-281A
2
3306-81380 • Screen
1
3
2810-81120 • Pump cover
1
4
3310-81130 • Screw
1
5
3304-81140 • Gasket, pump
1
6
1172-81150 • Diaphragm, pump
1
7
2810-81170 • L needle
1
8
1491-81160 • L needle spring
1
9
3310-81230 • Lever
1
10
3310-81240 • Screw M lever pin
1
11
1262-81270 • Spring
1
12
3310-81250 • Pin, lever
1
13
3310-81280 • Cover
1
14
3310-81260 • Diaphragm assy
1
15
3310-81290 • Gasket
1
16
3356-81310 • Valve, inlet
1
18
3356-81340 • Throttle valve
1
19
2670-81410 • Throttle spring
1
20
2880-81420 • Throttle shaft
1
21
2630-81460 • Idle spring
1
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
22
2670-81430 • Idle screw
1
23
2880-81331 • H needle
1
24
3080-81320 • H needle spring
1
25
3310-81351 • Screw
4
26
2880-81460 • Choke shaft
1
27
1148-81390 • Ring
1
28
3350-81350 • Choke spring
1
29
3350-81220 • Boll
1
30
2670-81450 • Choke valve
1
31
2810-81440 • Throttle lever
1
32
2880-81470 • Screw, valve
3
36 848C8080D0 • Spring
1
37
1751-81190 • Washer
1
38 848C8089D0 • Lever
1
39
2810-06021 Gasket Kit
1
G5200
