G4500, Fig.7 breaking systems – Zenoah G5200 User Manual
Page 14

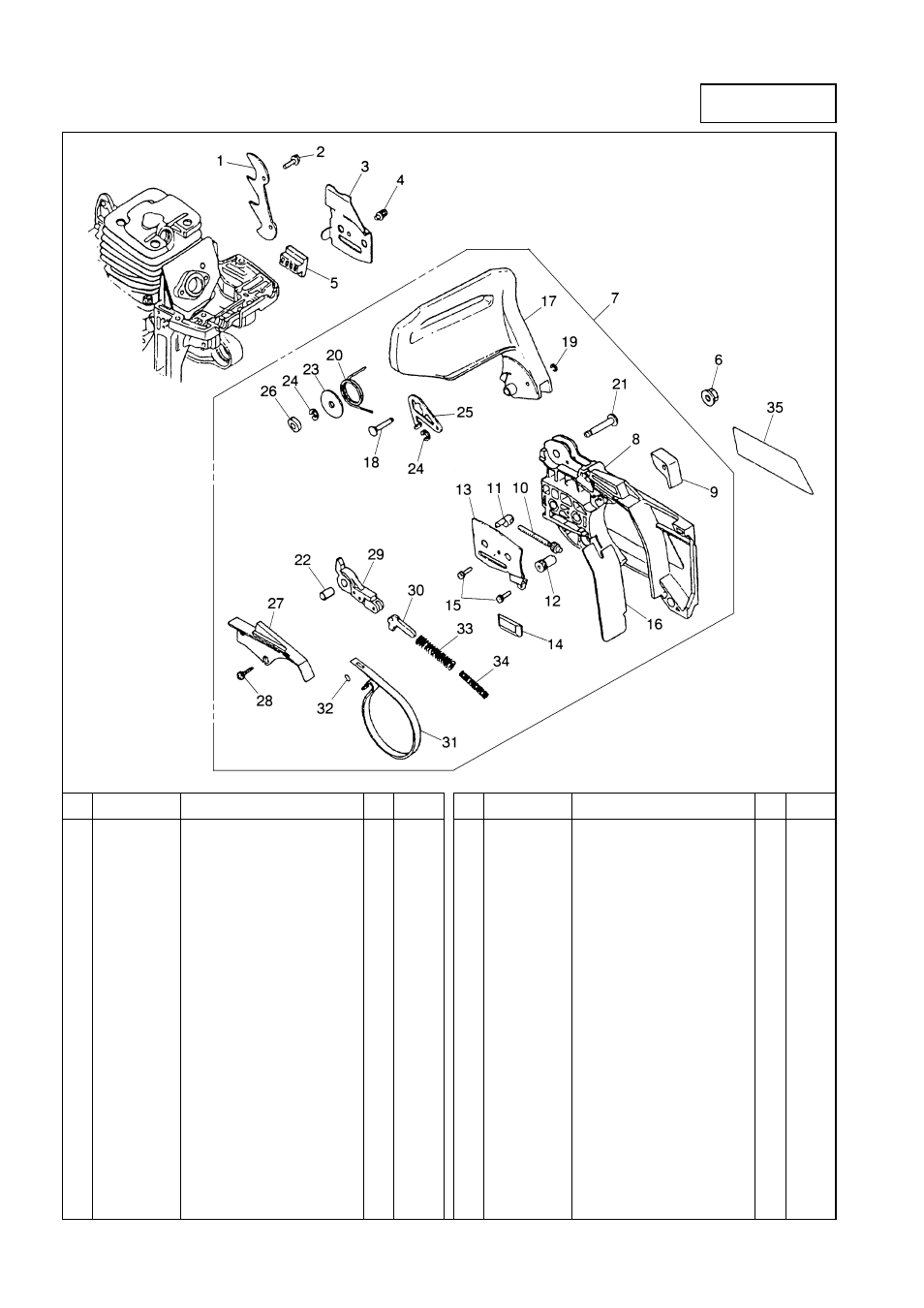

Fig.7 BREAKING SYSTEMS
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1
2670-25310 Bumper
1
2
2670-14320 Screw M5x14
2
3
2810-25421 Plate
1
4
2670-25430 Screw M4x10
1
5
2670-25410 Guide
1
6
3350-53410 Nut M8
2
7
2881-54003 Chain cover assy
1
8 848C8053A5 • Chain cover
1
9
2880-53150 • Stopper
1
10
2671-53210 • Screw
1
11
2810-53221 • Nut
1
12
2671-53230 • Gear
1
13
2671-53240 • Plate
1
14
2670-25410 • Guide
1
15
2670-54630 • Screw M4x12 BT
2
16
2671-53311 • Protector
1
17
2880-54112 • Front guard
1
18
2670-54121 • Pin
1
19
0308-00030 • Ring
1
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
20
2670-54210 • Spring
1
21
2670-54220 • Pin
1
22
2670-54231 • Spacer
1
23
3238-15230 • Washer
1
24
0308-00040 • Ring
2
25
2810-54240 • Plate
1
26
2810-54260 • Spacer
1
27
2670-54621 • Cover
1
28
2670-54630 • Screw M4x12 BT
3
29
2670-54302 • Brake lever comp.
1
30
2670-54411 • Slide arm
1
31
2670-54510 • Brake band
1
32
3356-24140 • Roller
1
33
2670-54610 • Brake spring
1
34
2880-54650 • Return spring
1
35
2811-53123 Label, Chain cover
1
G4500
