Adsl control and status interface screen -2, Figure 3-2 control and status application -2, 2 adsl control and status interface screen – ZyXEL Communications 630 User Manual
Page 30
Prestige 630 ADSL USB Modem
3.2 ADSL Control and Status Interface Screen

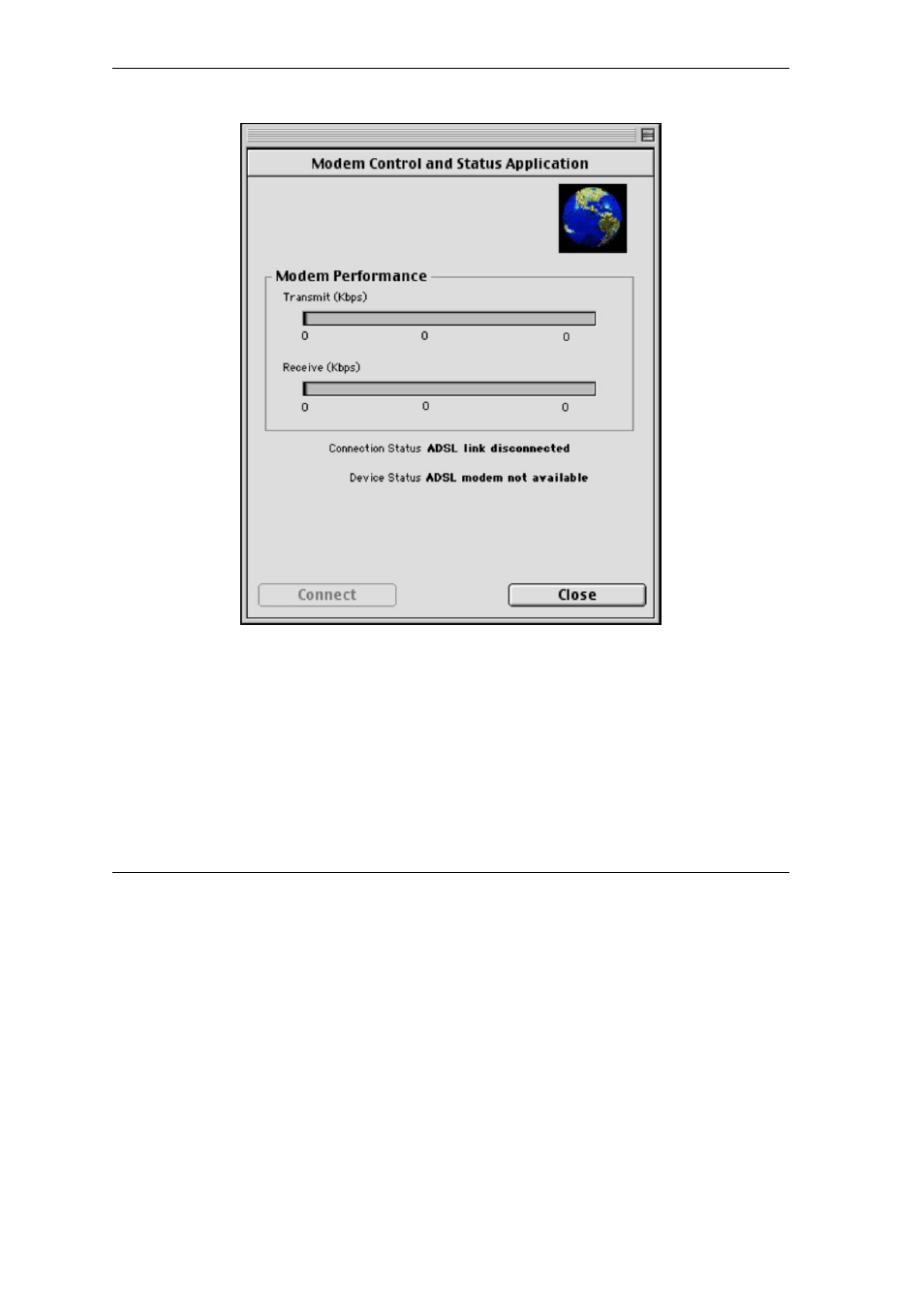

Figure 3-2 Control and Status Application
3.2.1 Modem Performance
Two bar graphs indicate the throughput rates. One indicates the transmit rate (upstream) of data being sent
out from the modem and the second indicates the receive rate (downstream).
3.2.2 Connection Status
This field displays ADSL link connected when there is an ADSL connection. It displays ADSL link
disconnected when there is not an ADSL connection.
3-2
Control and Status
