GB-8
EXZ2610DL (HE-EX)
Insert the cable
to the end of
adjuster
Full on stopper
Idling adjust screw
M3 screw
Adjuster

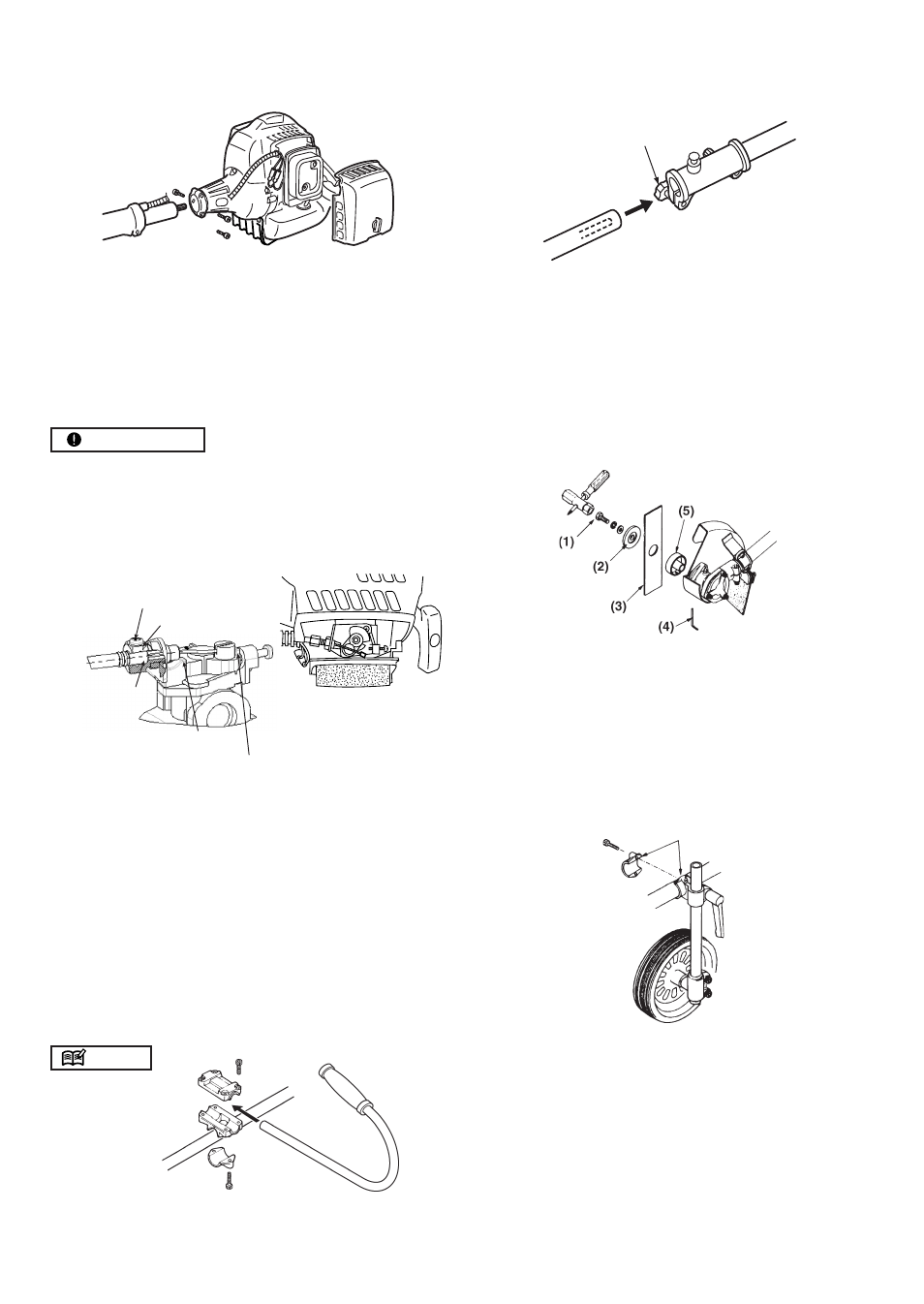

MOUNTING ENGINE
1. Push the shaft tube toward the clutch housing and
rotate it by hand to check that the drive shaft is en-
gaged with the gears.
2. Insert the shaft tube into the clutch housing until it
bottoms, and align the positioning holes on the clutch
housing and the shaft tube and install the screw. When
difficult to engage, twist the engine slightly.
3. Fasten the clamp securely with two screws.
IMPORTANT
Tighten the screws gradually by turns.
CONNECTING THROTTLE WIRE
1. Remove the air cleaner cover.
2. Connect the end of the throttle wire to the joint on the
top of the carburetor.
1. Connect throttle wire with carburetor. Insert the cable
to the end of adjuster fix the throttle cable by tighten-
ing M3 screw. (Tightening torque: 0.4 ~ 0.8 N.m.)
2. Make sure the ‘STOPPER-PLATE’ of carburetor moves
to contact with ‘IDLING ADJUST SCREW’ and the
‘SWING-ARM’ of carburetor moves to contact with
‘FULL ON STOPPER’ by gripping throttle lever.
CONNECTING SWITCH WIRES
• Connect the switch wires between the engine and the
main unit. Pair the wires of the same color.
6. Set up
JOINT ATTACHMENT
• Insert the attachment to the main shaft.
• Tighten the knob bolt securely.
Knob bolt
INSTALLING HANDLE
NOTE
INSTALLING BLADE
1. Place the blade between the cutter holders (A) and
(B) while locking the gear shaft by putting the bar,
one of the tools provided, through the key holes on
the holder (A) and the angle transmission. Use the
socket and the screwdriver as shown in the picture
below to tighten the blade mounting bolt.
(1) Blade mounting bolt (Left-handed)
(2) Cutter holder (B)
(3) Blade
(4) Bar
(5) Cutter holder (A)
INSTALLING WHEEL
1. Split the bracket and install the wheel assembly to
the shaft tube and clamp at a position best for your
job.
Bracket
• Install the J-shaped handle to the shaft tube and clamp
at a position best for your job.
