GB-13
EXZ2610DL (HE-EX)
WARNING
• Make sure that the engine has stopped and is cool
before performing any service to the machine. Con-
tact with moving cutting head or hot muffler may
result in a personal injury.

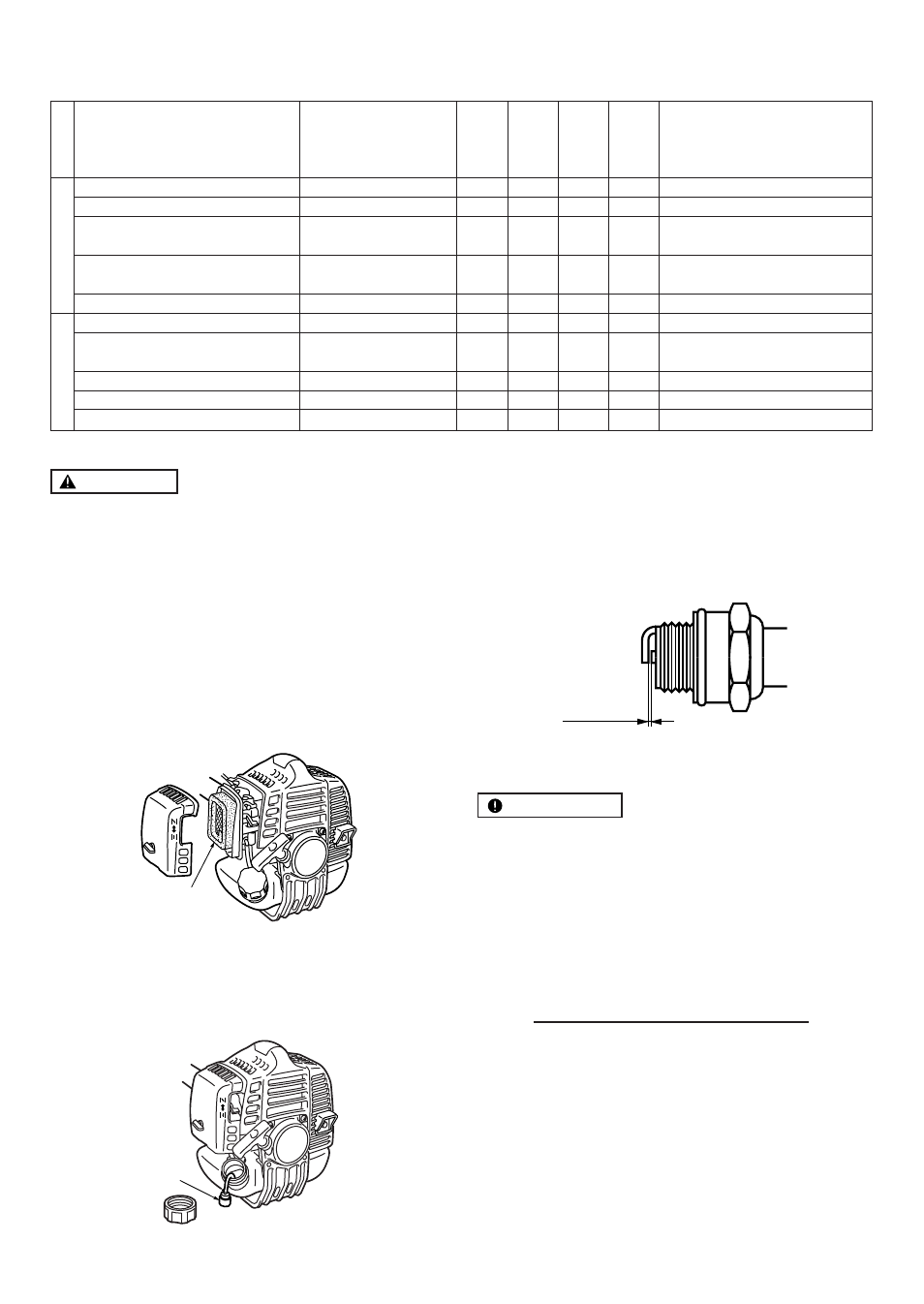

AIR FILTER
• The air filter, if clogged, will reduce the engine perfor-
mance. Check and clean the filter element in warm,
soapy water as required. Dry completely before in-
stalling. If the element is broken or shrunk, replace
with a new one.
(1)
(1) Air filter
FUEL FILTER
• When the engine runs short of fuel supply, check the
fuel cap and the fuel filter for blockage.
(1)
(1) Fuel filter
9. Maintenance
Every Every Every
25 50 100
System/components Procedure
Before
hours hours hours Note use
after after after
fuel leaks, fuel spillage wipe out
✔
fuel tank, air filter, fuel filter inspect/clean
✔ ✔
replace, if necessary
see adjusting replace carburetor
idle speed adjuster
idling speed (p. 11)
✔
if necessary
clean and readjust GAP: 0.026 in (0.65 mm)
spark plug
plug gap
✔
replace, if necessary
intake air cooling vent clean
✔
throttle trigger, stop switch check operation
✔
replace if
cutting attachment
something’s wrong
✔
transmission grease
✔
screws/nuts/bolts tighten/replace
✔ ✔
not adjusting screws
cutting attachment guard make sure to attach
✔
ENGINE
SHAFT
SPARK PLUG
• Starting failure and misfiring are often caused by a
fouled spark plug. Clean the spark plug and check
that the plug gap is in the correct range. For a re-
placement plug, use the correct type specified by
ZENOAH.
• REPLACEMENT PLUG IS A NGK CMR7H.
IMPORTANT
• Note that using any spark plug other than those des-
ignated may result in the engine failing to operate prop-
erly or in the engine becoming overheated and dam-
aged.
• To install the spark plug, first turn the plug until it is
finger tight, then tighten it a quarter turn more with a
socket wrench.
0.026 in (0.65mm)
TIGHTENING TORQUE:
9.8 ~ 11.8 N.m.
(1 ~ 1.2 kg.m.)
