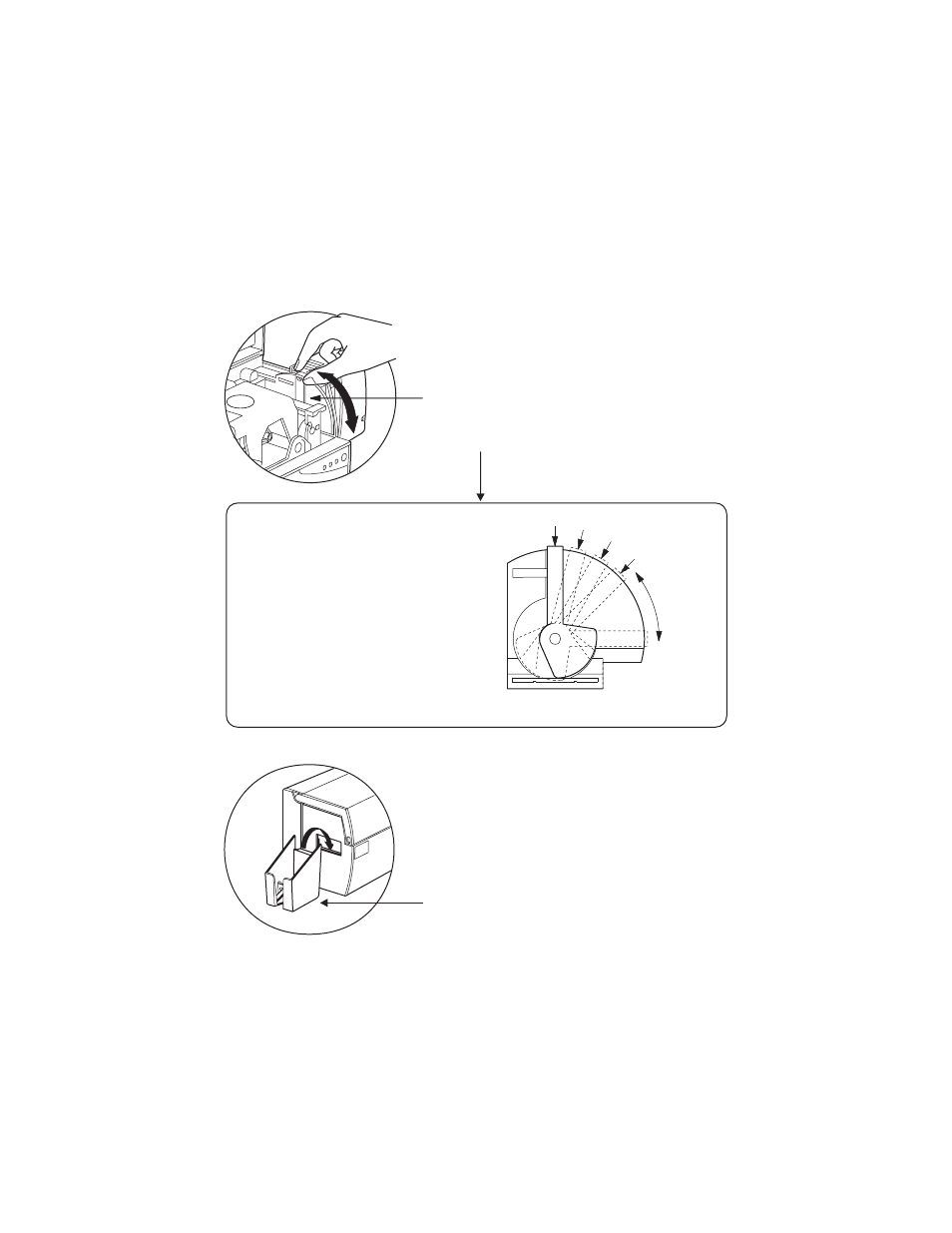

Install Card Output Hopper onto printer
by hooking over bottom edge of card exit
aperture.
Open Cover, and adjust lever to correct
position. Repeat for different card
thickness. (Factory setting is for 30mil
(0.762mm) card thickness. See diagram
below:
B - CARD THICKNESS CONTROL LEVER
This item is operated by the user to
prevent more than one card feeding into
the printer at the same time and causing a
jam.
C - CARD OUTPUT HOPPER
For collecting printed cards
Card Thickness:
A - 60mil (1.524mm) to 50mil (1.27mm)
B - 40mil (1.016mm)
C - 30mil (0.762mm)
D - 20mil (0.508mm)
E*- Less than 20mil (0.508)
* Start at lowest position and move lever
up to match card thickness.
For other card thickness, start lever at
lowest position and move up until cards
feed.
