ZyXEL Communications Bridge/Router G-2000s User Manual
Page 19
ZyAIR G-2000 Plus Quick Start Guide
19
Free-standing
Place your ZyAIR on a flat, level surface (on a desk or shelf) that is strong enough to support the weight of
the ZyAIR with connection cables.
1.

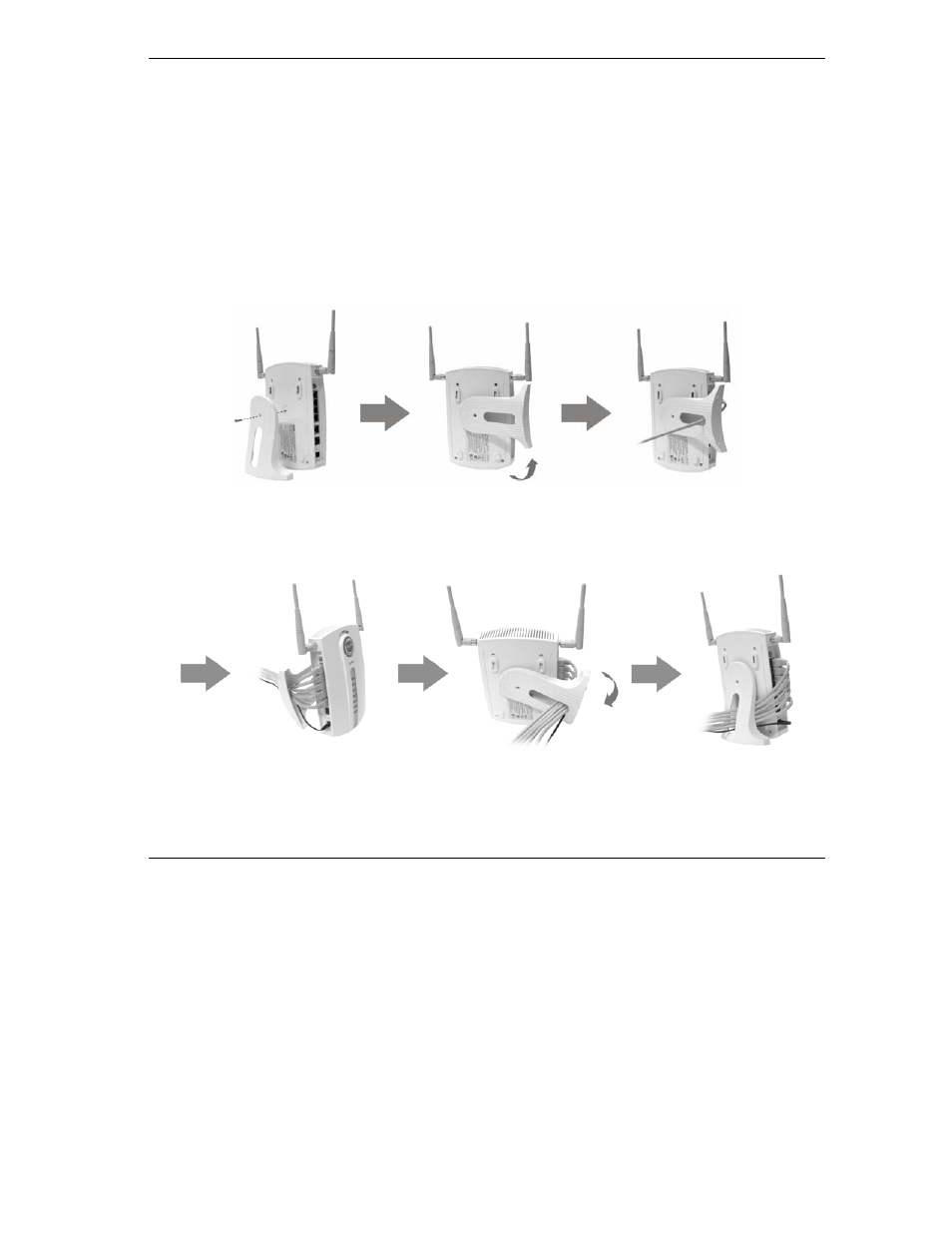

Follow the steps to position your ZyAIR on a level surface. You can use the diagrams below for
instructions on how to do this.
2.
Connect the screw (included) to the support holder.
3.
Connect the support holder to the ZyAIR but do not tighten the screw.
4.
Twist the support holder to the side.
5.
Run the connection wires through the gap in the support holder
Figure 9 Support Holder Connections
6.
Twist the support holder back to the vertical position and tighten the screw that connects the
support holder to the ZyAIR.
Figure 10 Support Holder Connection Pass Through
