Zebra Technologies Zebra P330i User Manual
Page 27

Installation and Setup
Installing the Card Cleaning Cartridge
980459-001 Rev. A
P330i User’s Manual
15
4.

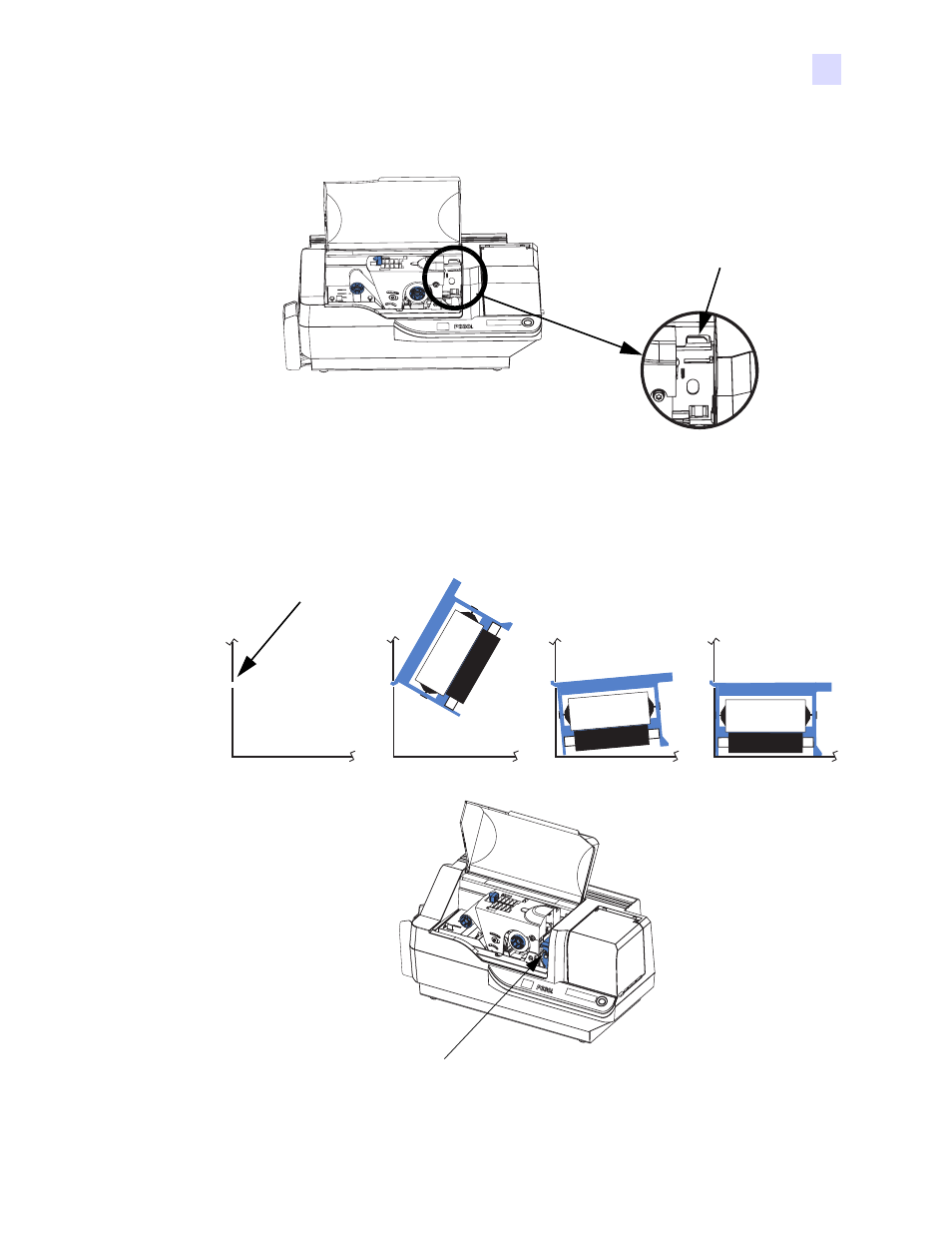

Locate the slot at the rear of the Card Cleaning Cartridge mounting location; see below.
5.
Hold the Card Cleaning Cartridge by the extended “handle” (so the large arrow on the top
is pointing away from you). With the cartridge at about a 30
°
angle (pointing downward),
insert the lip of the cartridge into the slot, until the cartridge seats against the back wall.
Then press the front of the cartridge down until it seats all the way down and latches with
an audible “click”. See below.
6.
Close the printer’s Main Cover.
Card Cleaning
Cartridge
Positioning Slot
Slot
Card Cleaning Cartridge in final position
