30

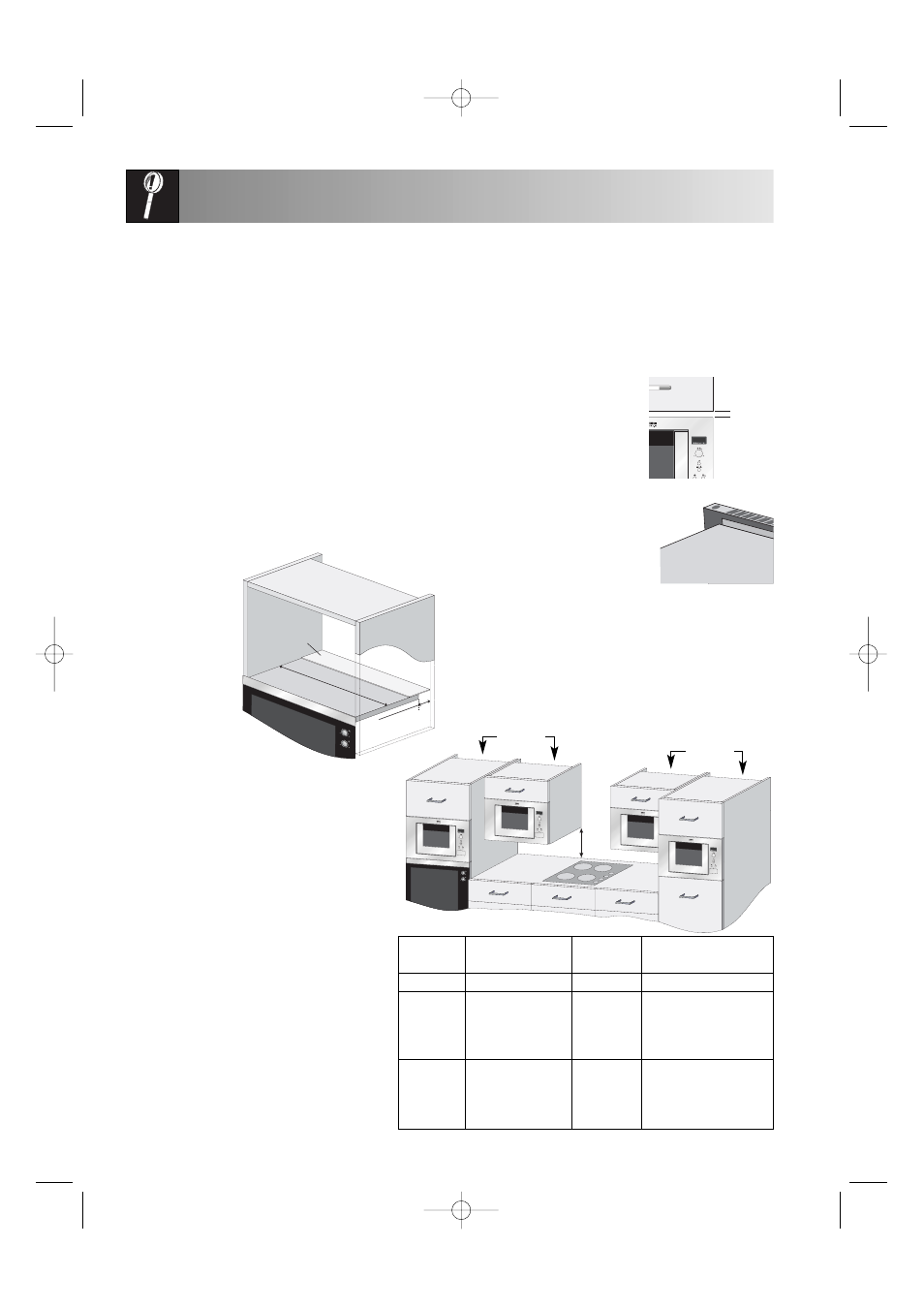

INSTALLATION

If fitting the microwave in position B or C:
• The cupboard must be a minimum of 500

mm (E) above the worktop and must not be
installed directly above a hob.

• This appliance has been tested and approved

for use near domestic gas, electric and
induction hobs only.

• Sufficient space between hob and

microwave should be allowed to prevent
overheating of microwave oven,
surrounding cupboard and accessories.

• Do not operate the hob without pans when

the microwave oven is operating.

• Care should be taken when attending to the

microwave oven while the hob is on.

E

D

SAFE USE OF THE APPLIANCE

INSTALLING THE APPLIANCE

1. Remove all packaging and check carefully for

any signs of damage.

2. This oven is designed to fit into a 360mm high

cupboard as standard.
When fitting into a 350mm high cupboard:-
Unscrew and remove the 4 feet from the bottom
of the oven. There are 3 tall feet and 1 short
foot. Replace the 3 tall feet with those provided
in the accessory pack. Do not replace the short
foot.

3. If fitting the microwave oven above a

conventional oven (position A) then use the mylar
sheet provided.
a. Cut the Mylar sheet to fit the internal width of

the unit.

b. Peel back the

protective
cover on the
tape and fix
to the rear of
the shelf so
that it covers
the service
gap. (See
diagram).

4. Fit the appliance into the kitchen cupboard

slowly, and without force, until the front frame of
the oven seals against the front opening of the
cupboard.

5. Ensure the appliance is

stable and not leaning.
Ensure that a 5mm gap is
kept between the cupboard
door above and the top of
the frame (see diagram).

6. Fix the oven in position with

the screws provided.
The fixing points are located
on the top and bottom
corners of the oven (see
diagram, item 9, on page 4).

7. It is important to ensure that the installation of

this product conforms to the instructions in this
operation manual and the hob or conventional
oven manufacturer’s installation instructions.

5 mm

Position A

Position B

Position C

Position D

Conventional

oven

Mylar sheet

Conventional

oven

Inter

nal width

Service gap

POSITION

NICHE SIZE

CHIMNEY

Gap Between

W

D

H

(min)

Cupboard & Ceiling

A

560 x 550 x 360

50

50

B + C

460 x 300 x 350

18

50

460 x 300 x 360

18

50

560 x 300 x 350

18

50

560 x 300 x 360

18

50

D

460 x 500 x 350

18

50

460 x 500 x 360

18

50

560 x 500 x 350

18

50

560 x 500 x 360

18

50

Measurements in (mm)

Chimney

Chimney
