Zebra )100 User’s Guide
!
there until you have printed some labels and see a need to change it.
When you are satisfied with your settings, Click OK.
You can return to the A100’s Setup Dialog at any time from the Printers Con-
trol Panel (or Printer Settings in Windows 95) and from the print dialog of
most Windows applications.
BAR-ONE Installation
If you wish to use a customized label design package to create labels for use
with your A100 printer, you may also install BAR-ONE software. However,
this software is optional: you will not need to use BAR-ONE software if you
are printing label formats created in another Windows-compatible applica-
tion.
1. If you have not installed the A100 Printer Driver, do so now.
2. Start Windows.
3. Insert disk 1 of the BAR-ONE software in your floppy disk drive (A: or
B:).
4. In Program Manager, click on the File menu. Select Run. (Windows 95

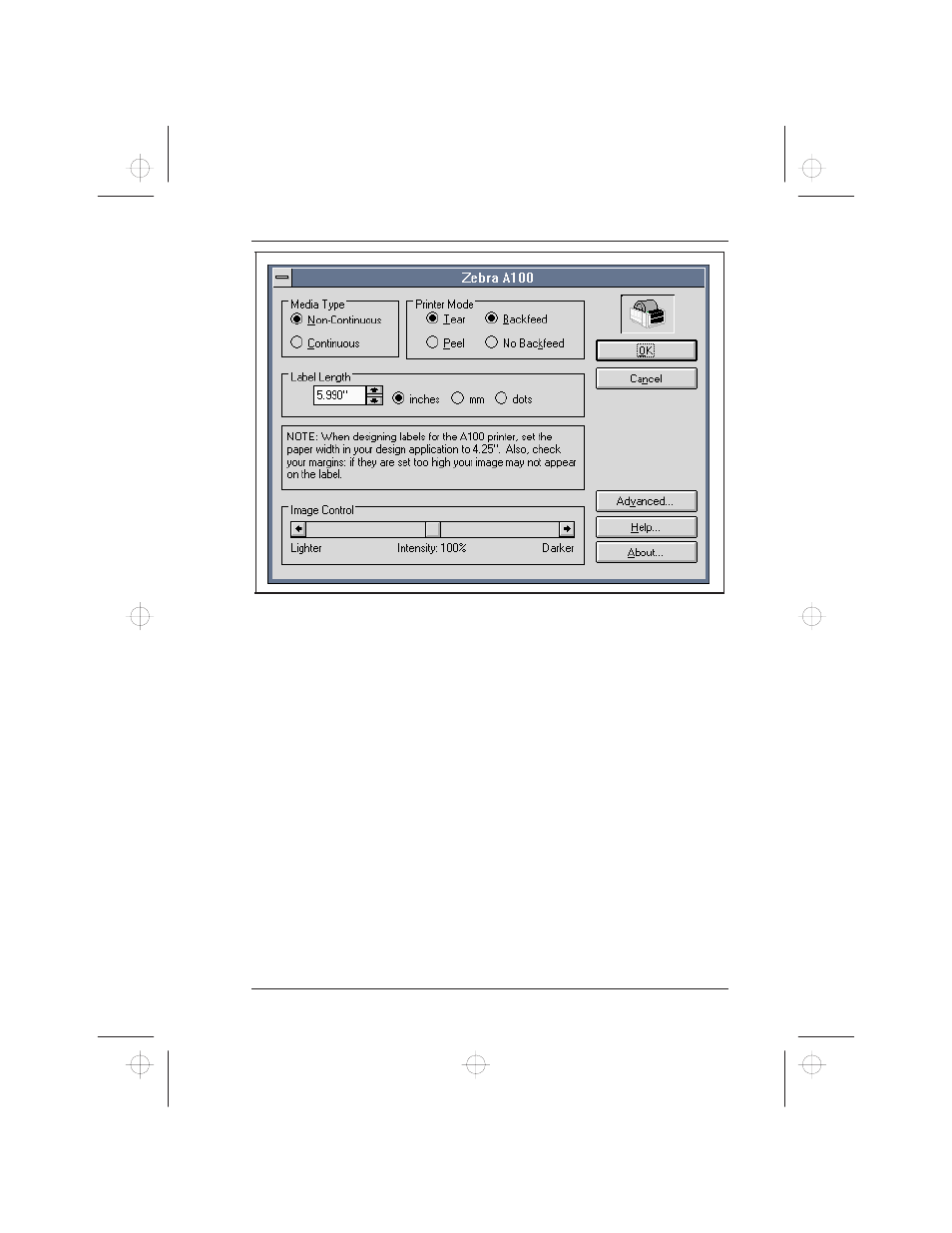

Figure 3: Print Setup Dialog Box
55501lr3 Page 13 Wednesday, March 26, 1997 1:08 PM
