Front Panel
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 15
Front Panel
The front panel contains LED indicators that show the status of the unit.

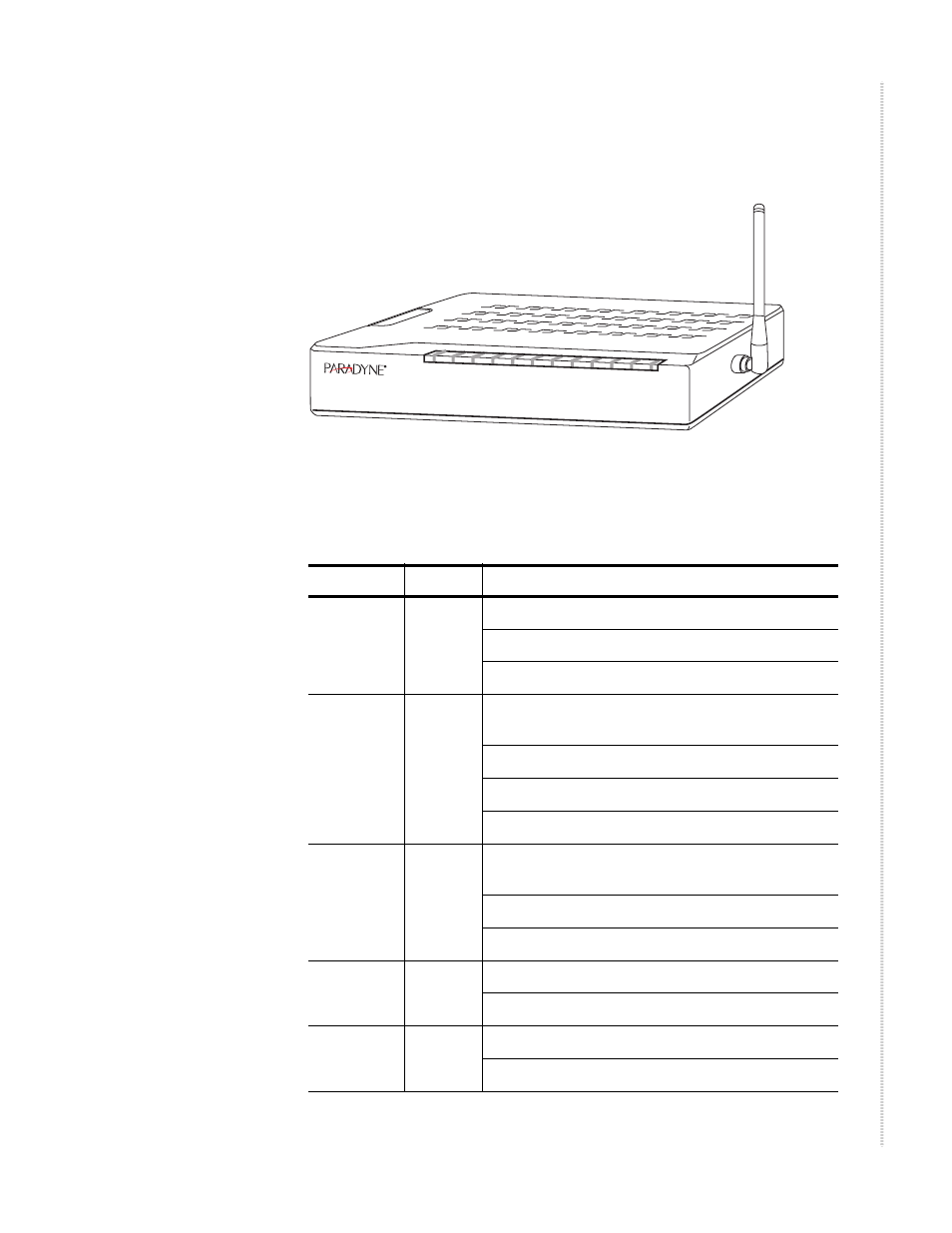

Figure 1: Front Panel LEDs
Table 1: Front Panel Label and LEDs
Label Color Function
xDSL LNK Green On: ADSL link is established.
Flashing: ADSL link is established and active.
Off: No ADSL link.
xDSL ACT Green Off: No PPP connection is established or the
connection is not used.
Blinking: a PPP connection is being attempted.
Solid: A PPP connection is established.
Flickering: There is activity over the link.
LAN 1–4 Green On: The Ethernet interface is successfully
connected to a device through the LAN port.
Flashing: Data transfer at LAN connection
Off: No LAN link
ALARM Red On: ADSL is not connected.
Off: ADSL is connected.
POWER Green On: Unit is powered on.
Off: Unit is powered off.
ALARM LAN4 LAN3 LAN2 LAN1 POWER
xDSL
ACT
xDSL
LINK
AP
05-17713
