23
• Place the ashpan under the grate
• Refit the drop in front plate
• Check that the door closes and seals correctly

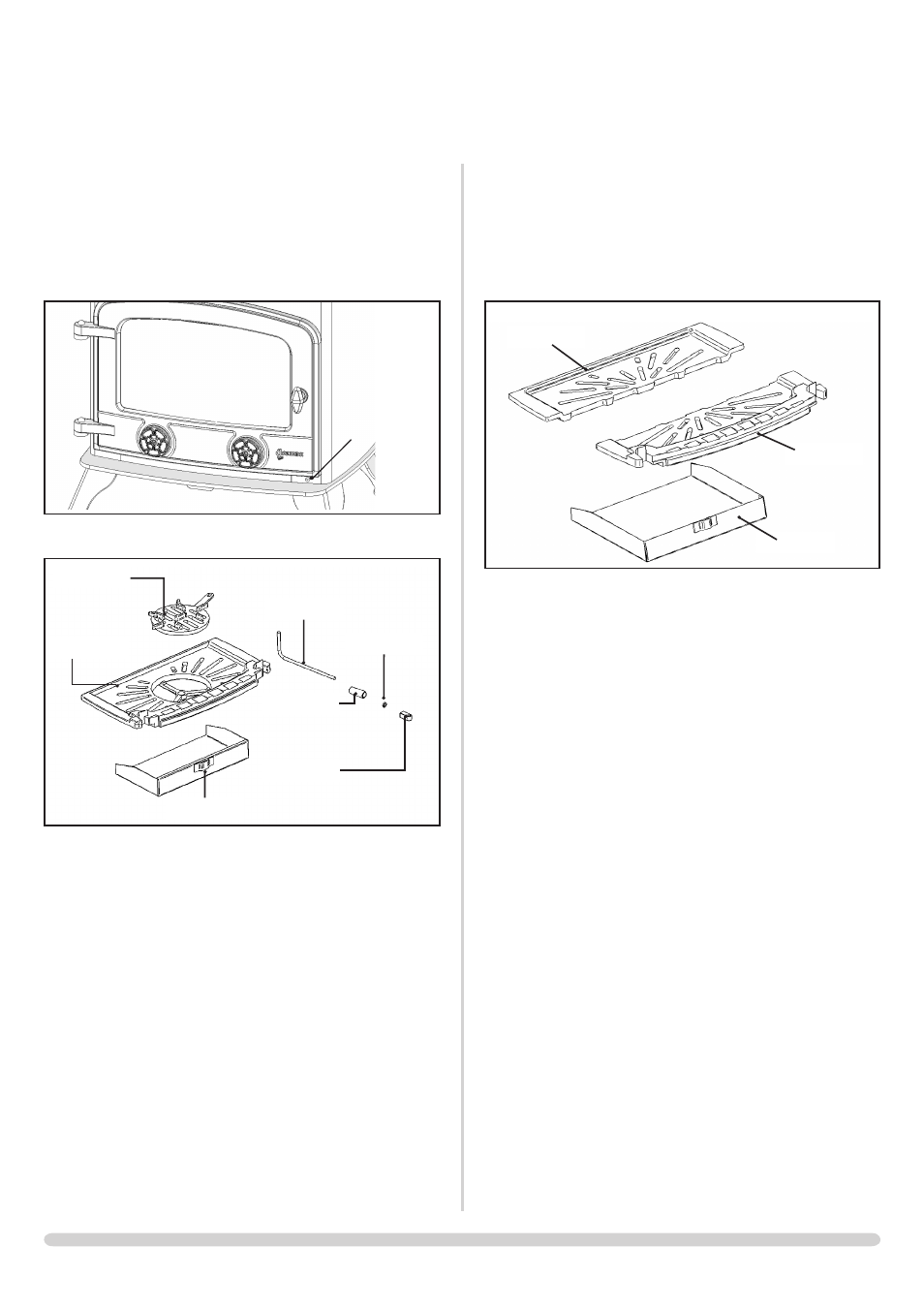

County Model
Rear Grate
Front Grate
Ashpan
5.3 • Place the rear grate in position on the steel runners as far
back as it will go against the rear steel chamber
• Place the front grate on the steel runners and locate the
back edge against the front edge of the rear grate
Ensure the grates sit flat on the supports.
• Refit the firebricks above the grate*
The reverse of the process of removal.
• Refit the log guard into slots in the front sides of the front
grate
• Place the ashpan under the grate
• Refit the drop in front plate
• Check that the door closes and seals correctly
* Note: The 2 lower firebricks are not required with the
riddling kit.
INsTALLATION INsTRUCTIONs
• Remove the fire bricks
• Remove the blanking bolt that is fitted in the grate
operating rod hole
This is located on the front of the stove near the lower right
hand corner of the door (not applicable for County models).
To do this loosen the M8 nut on the inside of the stove.
Blanking Bolt
Exmoor, Exe & Devon Models
Centre Grate
Riddling Sleeve
Operating Rod
Lock Nut
Operating Knob
Main Grate
Ashpan PR7516
5.2 • Place the main grate into place on the steel runners in the
sides of the stove
Ensure that the grate sits flat on the supports.
• Remove the operating knob and nut from the end of the
rod and fit the operating rod to the centre grate by
positioning the rod from inside
• Slide the riddling sleeve over the rod
• Feed the operating rod through the hole in the front of
the appliance from inside the firebox, while dropping the
centre grate into position in the main grate.
Ensure that the riddling sleeve is located on the boss on the
inside of the carcass.
• Lock into position with the nut, and refit the operating
knob on the front face of the appliance
• Refit the firebricks above the sides of the main grate*
• Refit the log guard into slots in the front side of the main
grate
