4
ASSEMBLY
1
74
56
3
3
8
11 51
27
1
4
3
1
51
27
High
Side
5

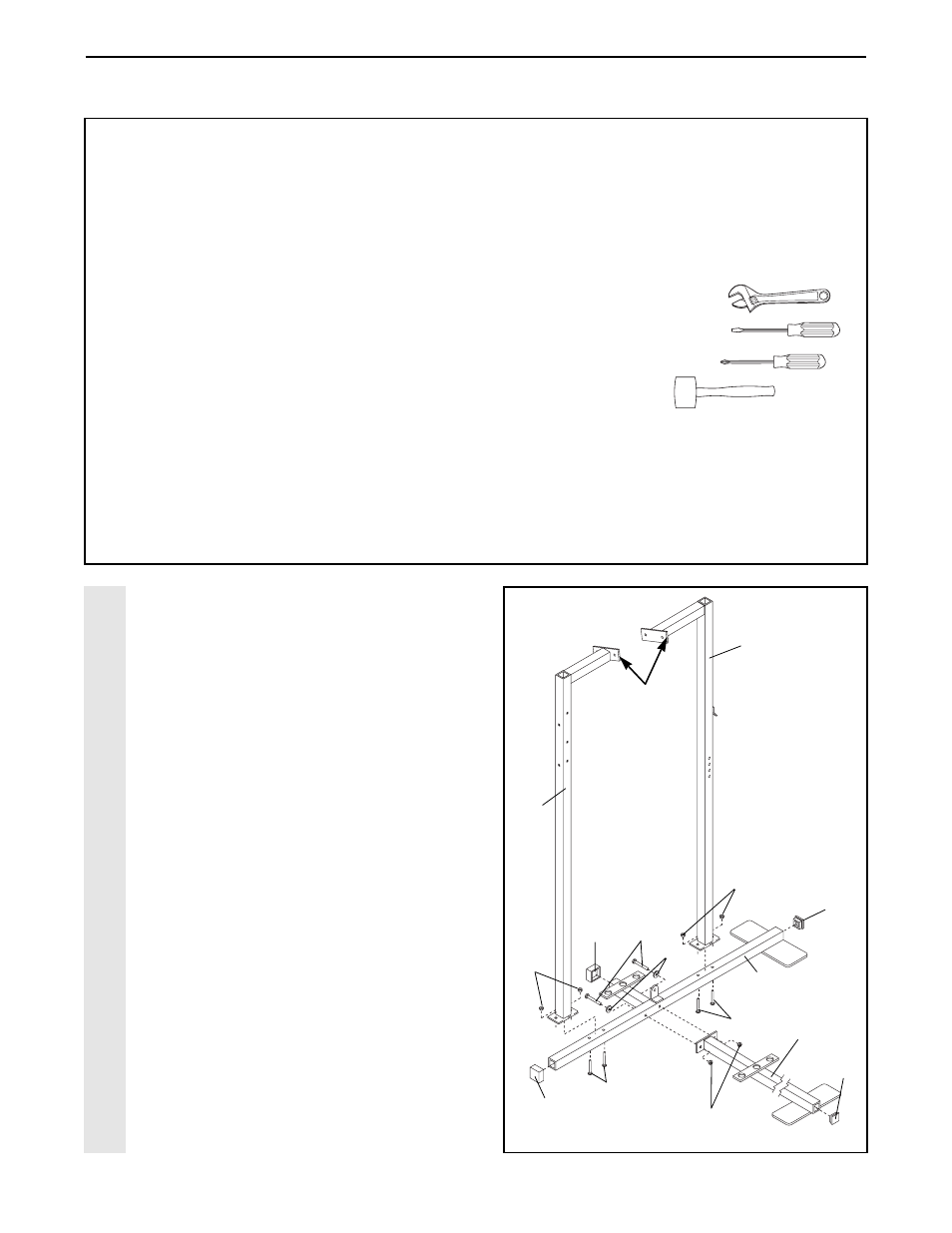

1. Before beginning assembly, be sure that
you have read and understand the infor-
mation in the box above.
Press a 2Ó Inner Cap (27) into the indicated
end of the Stabilizer (5). Press 2Ó Outer
Caps (51) onto the other two locations on
the Stabilizer. Press a 2Ó Inner Cap into the
end of the Base (4).
Insert four 5/16Ó x 2 1/2Ó Carriage Bolts (1)
up through the Stabilizer (5).
Attach the Base (4) to the Stabilizer (5) with
two 5/16Ó x 2 3/4Ó Bolts (11), two 5/16Ó Flat
Washers (8), and two 5/16Ó Nylon Locknuts
(3). Do not tighten the Nylon Locknuts
yet.
Slide the VKR Upright (74) and the Squat
Arm Upright (56) onto the 5/16Ó x 2 1/2Ó
Carriage Bolts (1) in the Stabilizer (5). The
high side of the brackets on the VKR
Upright and Squat Arm Upright should be
on the side shown. Hand-tighten four 5/16Ó
Nylon Locknuts (3) onto the Carriage Bolts.
Do not tighten the Nylon Locknuts yet.
FRAME ASSEMBL
Y
Before beginning assembly, carefully read the
following information and instructions:
¥ Place all parts of the WEIDER 8530 in a cleared
area and remove the packing materials; do not
dispose of the packing materials until assembly is
completed.
¥ The assembly is broken into five stages: 1) frame
assembly, 2) press and butterfly arm assembly,
3) cable and pulley assembly, 4) seat and back-
rest assembly, and 5) VKR assembly. The hard-
ware for each stage is packaged separately.
¥ Wait until you begin each assembly stage to open
the parts bag labeled for that assembly stage.
¥ For help identifying the small parts used in
assembly, use the PART IDENTIFICATION
CHART located in the center of this manual.
Note: Some small parts may have been pre-
attached for shipping. If a part is not in the parts
bag, check to see if it has been pre-attached.
¥ As you assemble the WEIDER 8530, be sure that
all parts are oriented as shown in the drawings.
¥ Tighten all parts as you assemble them, unless
instructed to do otherwise.
THE FOLLOWING TOOLS (NOT INCLUDED) ARE
REQUIRED FOR ASSEMBLY:
¥ Two (2) adjustable wrenches
¥ One (1) standard screwdriver
¥ One (1) phillips screwdriver
¥ One (1) rubber mallet
¥ Lubricant, such as grease or petroleum jelly,
and soapy water will also be needed.
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches, or a set of ratchet wrenches.
