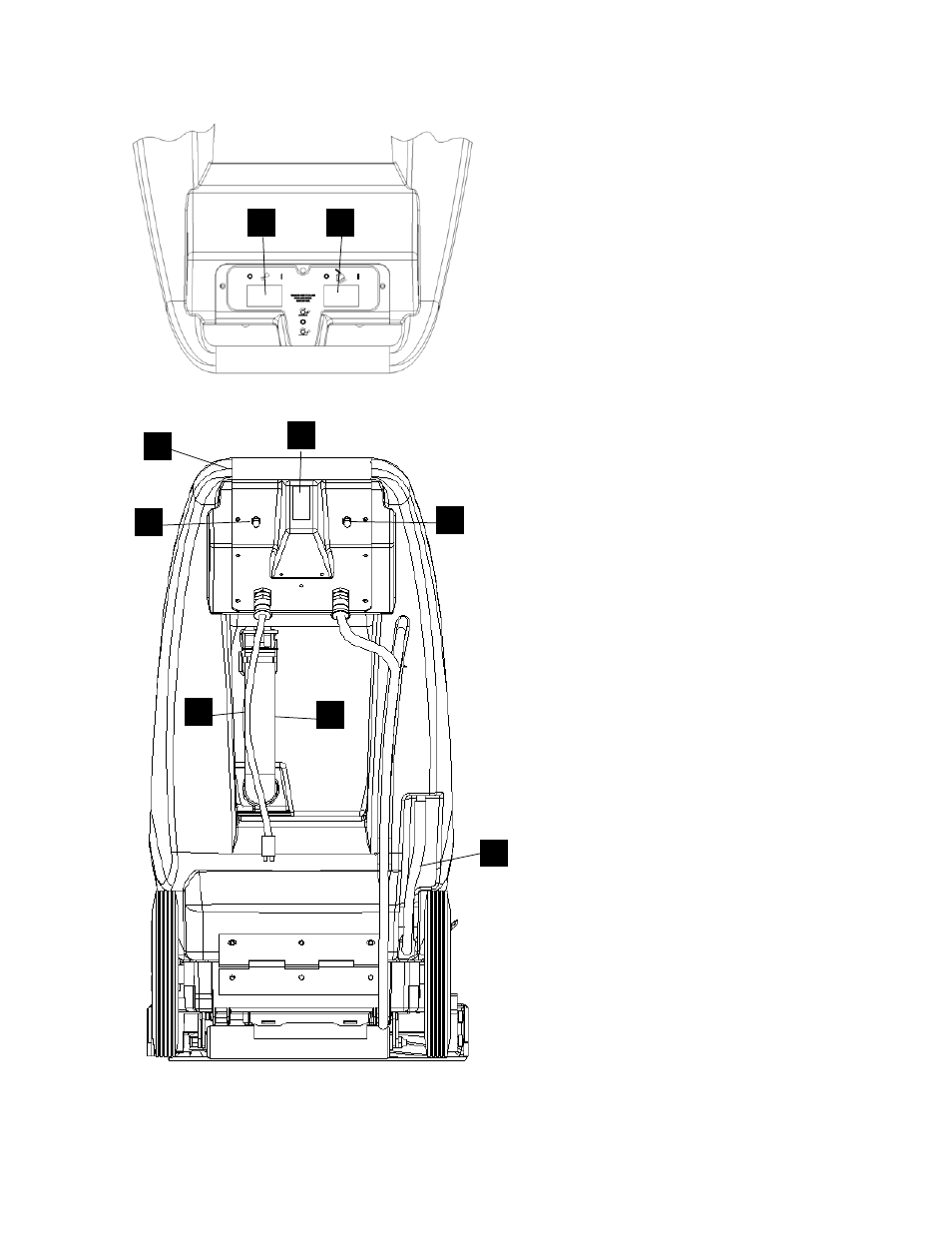

CONTROLS/COMPONENT LOCATIONS
1. Main Handle. Used to pull and maneuver
machine.
2. Electrical Cord.
3. Pump Switch. Turns on pump and enables
spray.
3 5
4. Brush/Spray switch. Turns on brush motor
and activates electro-valve to dispense solution
to floor through jets. Intermittent, off, and
continuous settings.
5. Vacuum Motor Switch. Turns on vacuum
motor
6. Brush Motor Circuit Breaker. 6 amp. Breaker
protecting brush motor.
4
1
7. Vacuum Motor Circuit Breaker. 15 amp.
Breaker protecting vacuum motor.
8. Recovery Dump Hose. Facilitates draining
dirty cleaning solution.
7
9. Solution Dump Hose. Facilitates draining
excess cleaning solution from solution tank.
2
6
8
9
CADET 86038220 03/16/07 3-2
