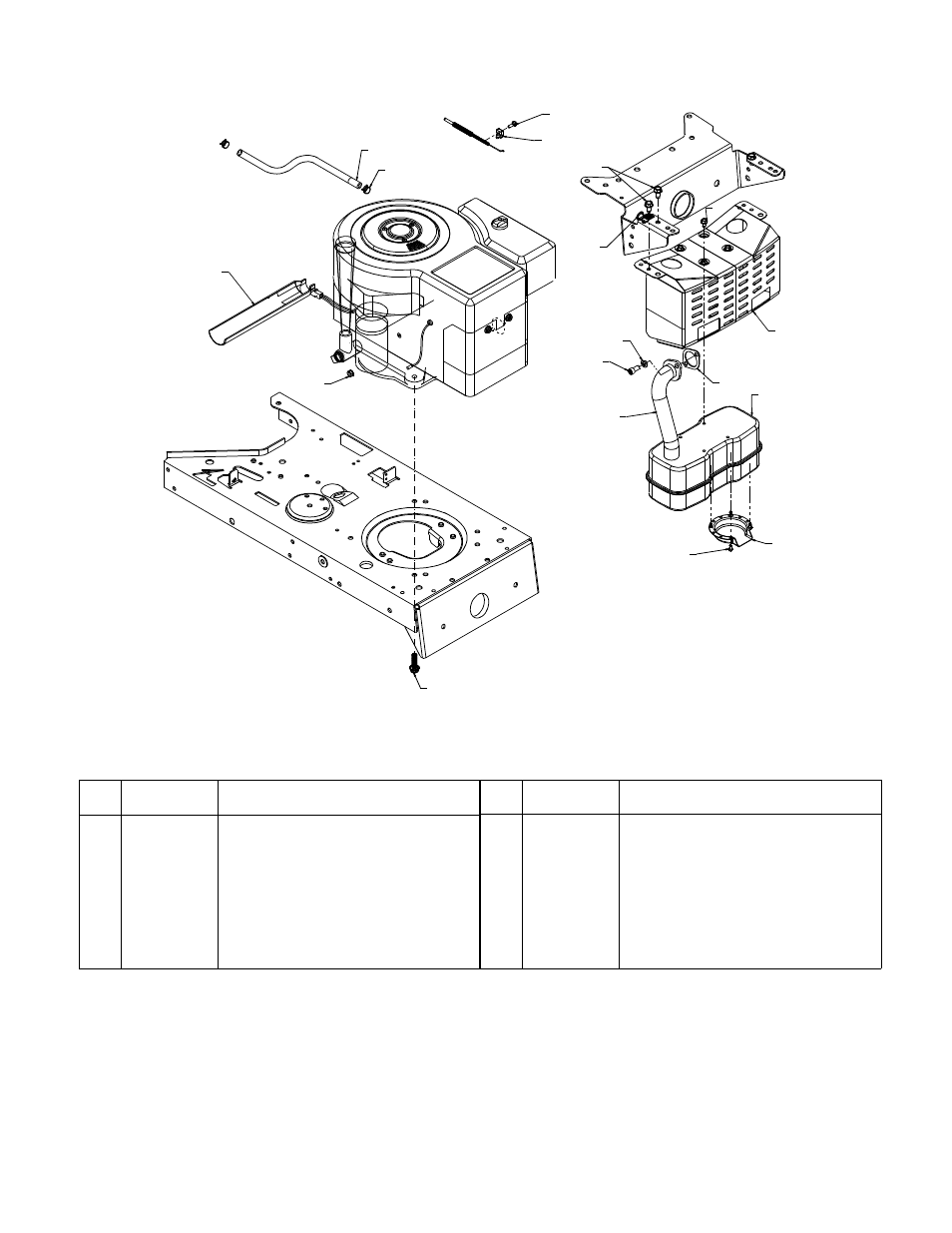

White Outdoor 693 - Manual (Page 32)

32
Model 693
19
8
4
6
16
17
5
1
2
3
12
18
15
10
7
14
11
9
REF.
NO.
PART
NO. DESCRIPTION
1 710-0148 Hex Slot Scr. #8-32 x .38" Lg.
2 710-0599 Hex Wash. TT-Tap Scr. 1/4-20 x .5" Lg.
3 710-0604A Hex Wash Hd. TT-Tap Scr. 5/16-18 x .62"
4 710-1237 Scr. #10-32:.620 Hx. Slot Wash.
5 710-1314 Socket Hd. Bolt 5/16-18 x .62" Lg.
6 710-1315 Scr. 3/8-16 x 1.25
7 712-0271 Nut, Hex 1/4-20
8 721-0208 Exhaust Gasket
9 726-0205 Hose Clamp .49 Dia.
10 726-0272 Clamp 9/16 Dia.
11 731-1682A Oil Drain Sleeve
12 736-0119 L-Wash. 5/16" I.D.*
14 751B213146 Casing Clamp, Throttle, B&S
15 751-0535-13 Fuel Line Hose
16 751-0564 Muffler Deflector
17 751-0617 Muffler
18 751-0619 Exhaust Pipe
19 783-0615 Muffler Heat Shield
