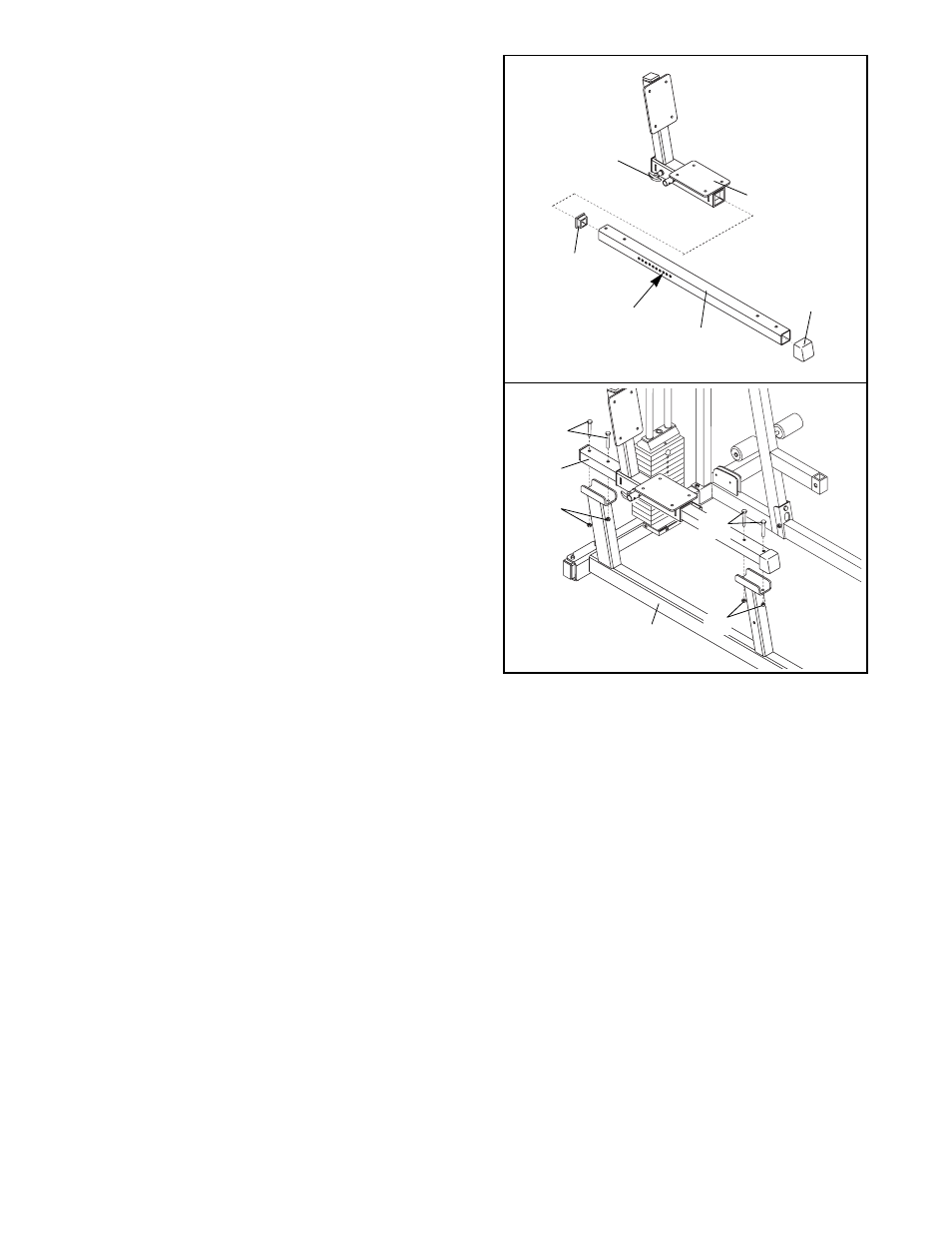

7. Turn the Adjustment Knob (9) counterclockwise to
loosen it. Pull out the Knob as far as possible and
slide the Seat Frame Channel (88) into the Sliding
Seat Frame (74). Release the Knob and let it snap
into one of the adjustment holes in the Seat Frame
Channel. Tighten the Knob fully.
Press a 2Ó Square Inner Cap (33) and an Angle Cap
(99) onto the indicated ends of the Seat Frame
Channel (88).
7
9
99
88
74
33
Adjustment
Holes
8. Attach the Seat Frame Channel (88) to the Leg Press
Base (84) with four 3/8Ó x 3Ó Carriage Bolts (107) and
four 3/8Ó Nylon Locknuts (50).
8
107
50
88
84
107
50
