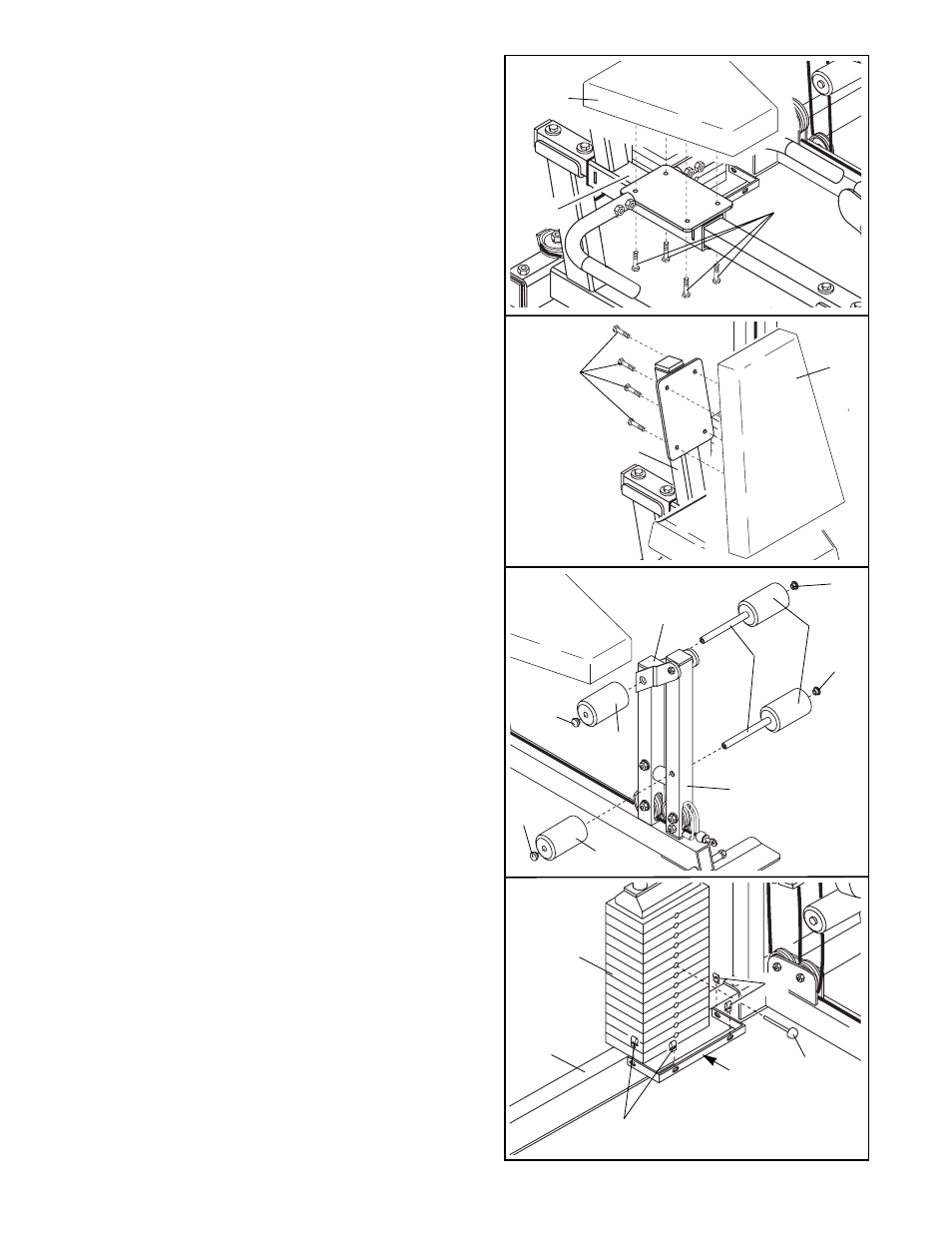

42. Attach the Leg Press Backrest (70) to the Sliding
Seat Frame (74) with four 1/4Ó x 3/4Ó Bolts (17).
41. Attach the remaining Seat (13) to the Sliding Seat
Frame (74) with four 1/4Ó x 3/4Ó Bolts (17).
42
17
41
13
17
74
74
44
38
Bracket
39
26
5
44. Slide the four Tinnerman Clips (38) down over the
slots in the bracket on the Stabilizer (5).
Insert the Weight Pin (39) under one of the Weights
(26).
38
43. Press 3/4Ó Round Inner Caps (34) into the ends of the
two Pad Tubes (28).
Slide one Pad Tube (28) into the hole in the front leg
on the Base (8). Slide a Foam Pad (30) onto each
end of the Pad Tube.
Slide the other Pad Tube (28) into the hole in the Leg
Lever (29). Slide a Foam Pad (30) onto each end of
the Pad Tube.
34
8
29
34
30
28
34
30
30
34
43
