THERMOSTAT QUICK REFERENCE

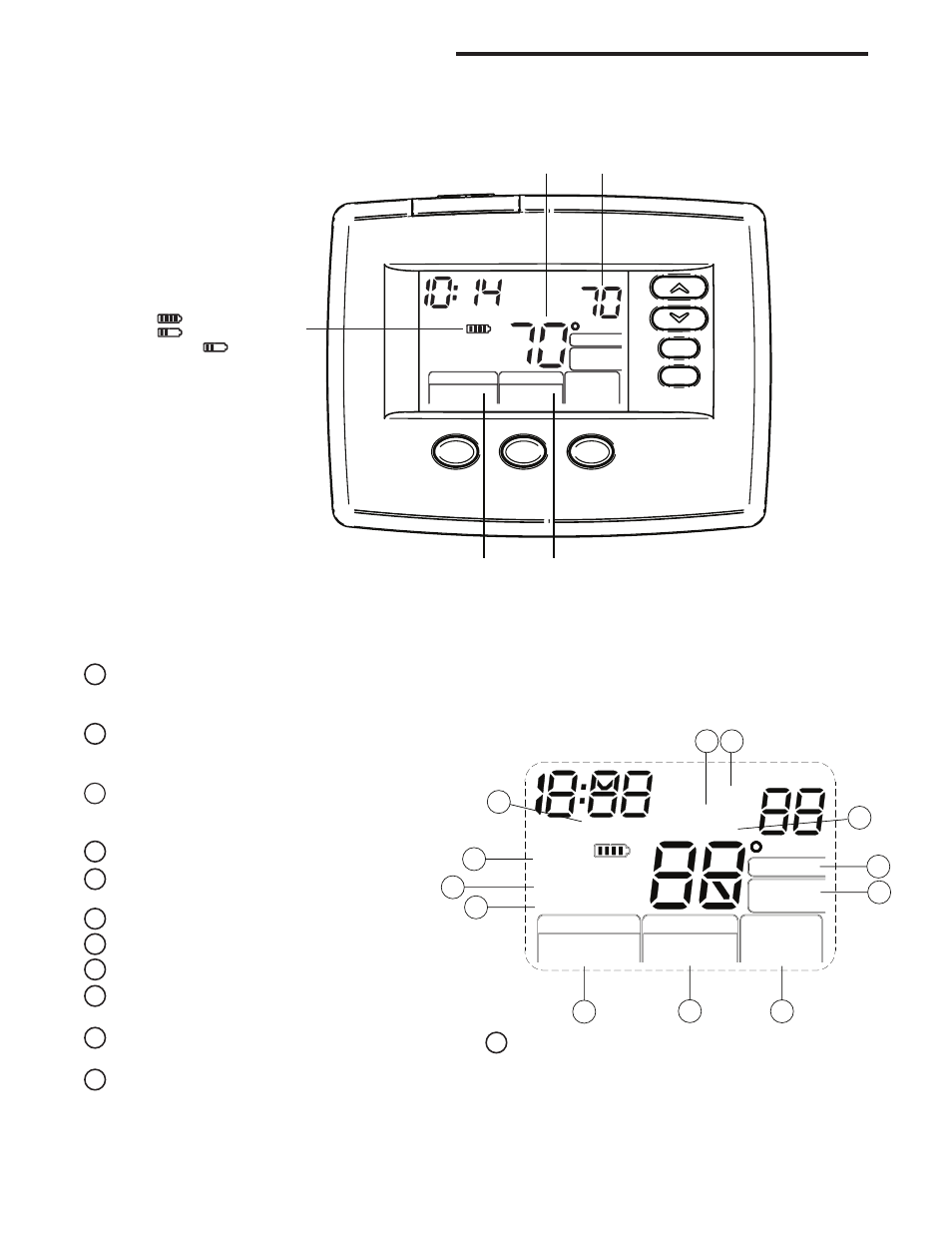

Figure 7 – Home Screen Display
Home Screen Description
Programming and Configuration Items
1 “System On” indicates when heating or cooling stage
is energized. “System On +2” indicates when a second
stage is energized.
2 The word “Hold” is displayed when the thermostat is in
the Hold mode. “ Temp Hold” is displayed when
the thermostat is in a Temporary Hold mode.
3 Displays “Change Filter” when the system has run for
the programmed filter time period as a reminder to
change or clean your filter.
4 Displays “Set” for setpoint when in Run Program mode.
5 Displays System Mode (Heat, Em, Auto, Cool, Off)
or “Time” in Menu Mode.
6 Displays Fan Mode (On, Auto) in Menu Mode.
7 Displays “Set Schedule”, “Schedule”, or “Menu”.
8 Displays “Save” when Cool Savings
TM is working.
9 Displays “Heat Pump” when system is configured
as Heat Pump thermostat.
10 Displays “Hold” in programmable mode. When not in
Hold mode, displays “Run” in program run mode.
11 Initially displays “Auto Sched”. If Auto Schedule had
been used or disabled, then it displays “Cool Savings”
when in the Cool Mode if Cool Savings has been ena-
bled in the menu.
12 “Call For Service” indicates a fault in the heating/
cooling system, it does not indicate a fault in the
thermostat.
Figure 8 – Programming & Configuration Items
