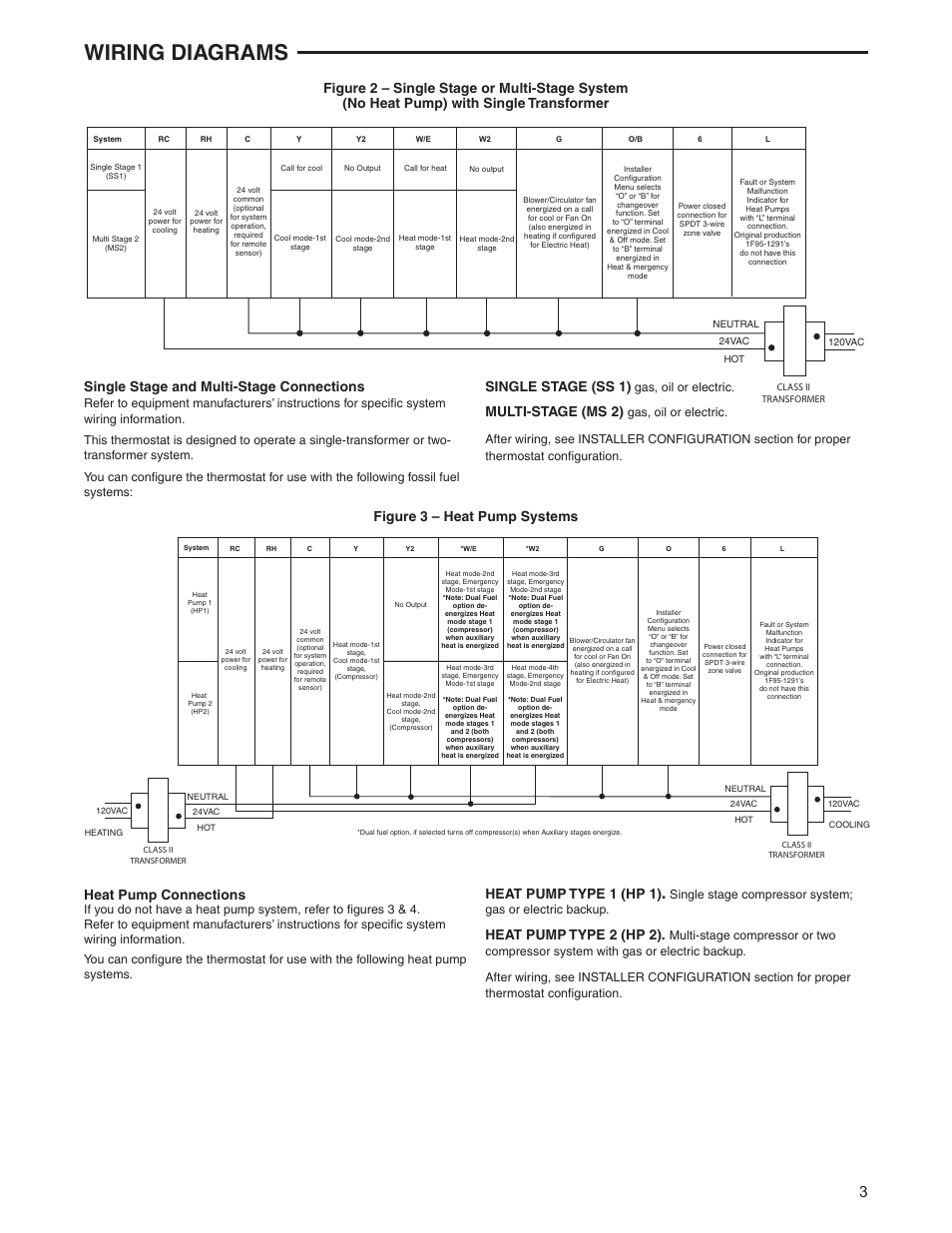

Wiring diagrams, Figure 3 – heat pump systems heat pump connections, Single stage and multi-stage connections – White Rodgers 1F95-1291 User Manual
Page 3: Single stage (ss 1), Multi-stage (ms 2), Heat pump type 1 (hp 1), Heat pump type 2 (hp 2), Gas, oil or electric
