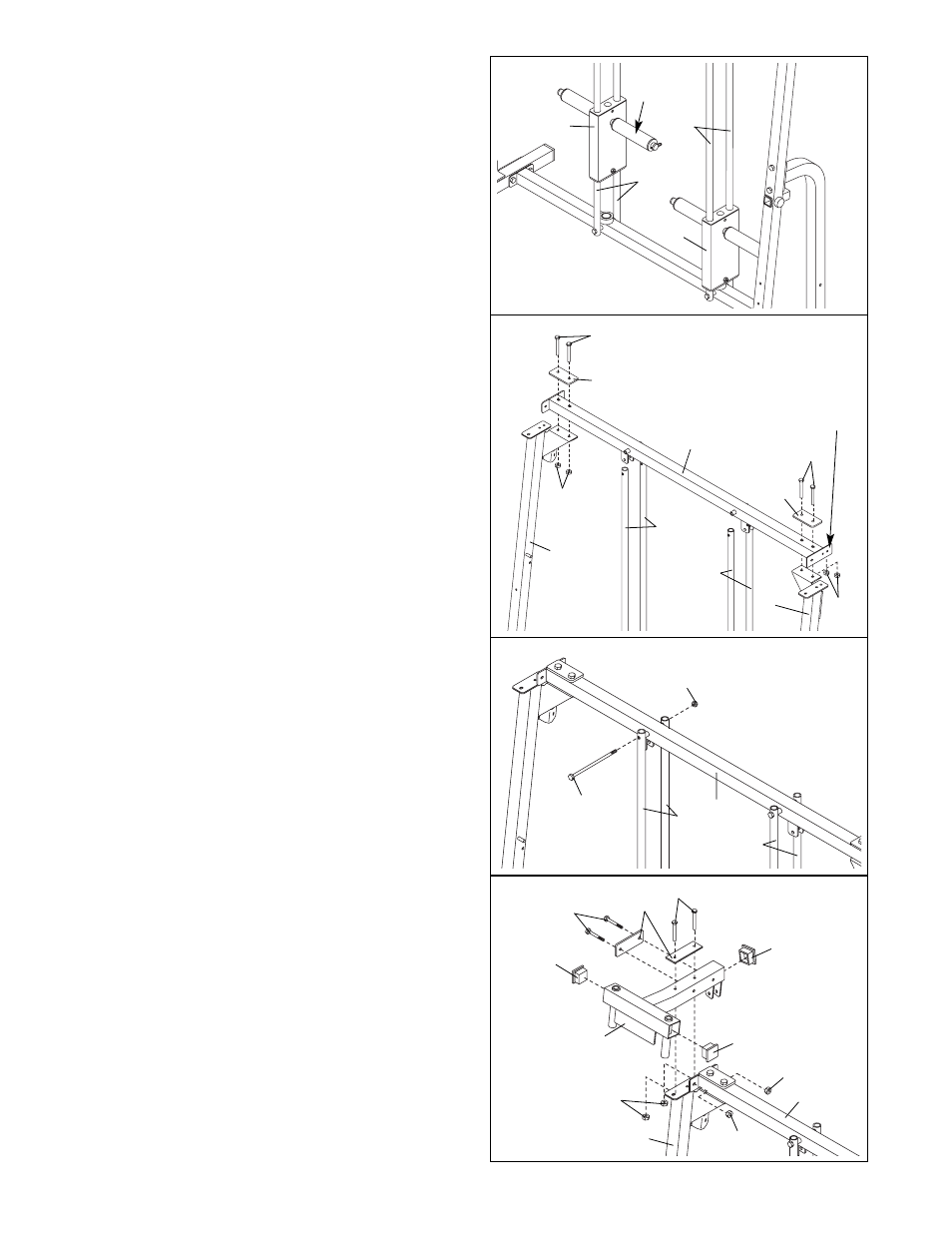

8. Attach the Top Frame (5) to the Butterfly Upright
(4) with two 3/8” x 2 3/4” Bolts (58), a Short
Support Plate (26), and two 3/8” Nylon Locknuts
(74). Note: Be sure that the Top Frame is ori-
ented with the long bracket on the side
shown, and that it rests between the Weight
Guides (33) as shown in step 9.
Attach the Top Frame (5) to the Press Upright (6)
in the same manner.
Do not tighten the 3/8” Nylon Locknuts (74) yet.
9. Attach each set of Weight Guides (33) to the Top
Frame (5) with a 3/8” x 6” Bolt (89) and a 3/8”
Nylon Locknut (74). Do not tighten the Nylon
Locknuts yet.
8
8
7. Slide a Weight Carriage (28) onto each set of
Weight Guides (33). Be sure the weight tubes
are near the top of the Weight Carriages
7
33
33
5 89
58
58
28
28
33
33
26
26
Long Bracket
74
33
33
74
5
74
4
6
Weight
Tube
10. Press three 2” Square Inner Caps (59) into the
Butterfly Top Frame (19).
Attach the Butterfly Top Frame (19) to the
Butterfly Upright (4) with two 5/16” x 2 3/4” Bolts
(55), a Long Support Plate (34), and two 5/16”
Nylon Locknuts (64).
Attach the Butterfly Top Frame (19) to the Top
Frame (5) with two 5/16” x 2 3/4” Bolts (55), a
Long Support Plate (34), and two 5/16” Nylon
Locknuts (64).
Do not tighten the 5/16” Nylon Locknuts (64)
yet.
10
9
4 64
64
64
5
19
34
59
59
59
55
55
