18

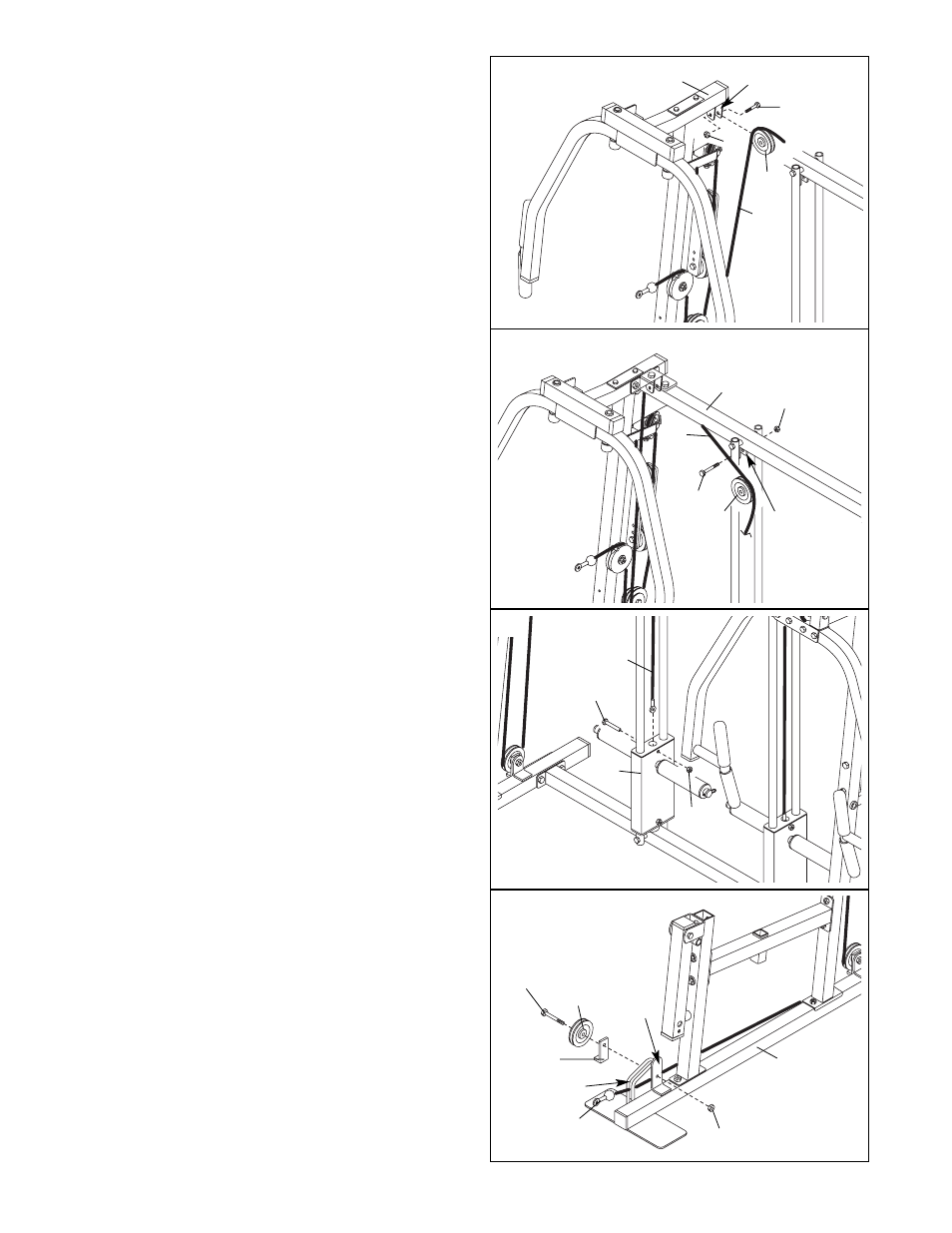

45. Wrap the Ab Cable (83) around a 3 1/2” Pulley
(37). Attach the Pulley to the bracket on the
Butterfly Top Frame (19) with a 3/8” x 2” Bolt (79)
and a 3/8” Nylon Locknut (74).
45
37
19
83
Bracket
74
79
46. Wrap the Ab Cable (83) around a 3 1/2” Pulley
(37). Attach the Pulley to the bracket on the Top
Frame (5) with a 3/8” x 2” Bolt (79) and a 3/8”
Nylon Locknut (74).
74
Bracket
79
37
47. Attach the end of the Ab Cable (83) to the indicat-
ed Weight Carriage (28) with a 3/8” x 2 1/2” Bolt
(78) and a 3/8” Nylon Locknut (74).
47
83
78
28
74
48. Identify the Leg Lever Cable (82). It is approxi-
mately 142.75” long and it has a ball on one end
and a loop on the other.
Route the loop end of the Leg Lever Cable (82)
through the cage on the Butterfly Base (1) and
under a 3 1/2” Pulley (37). Attach the Pulley and
a Cable Trap (44) to the bracket on the Butterfly
Base with a 3/8” x 2” Bolt (79) and a 3/8” Nylon
Locknut (74). Make sure the Cable Trap is ori-
ented to hold the Cable in the groove of the
Pulley.
48
79
37
44
1
74
Bracket
Cage
82
83
5
46
