9

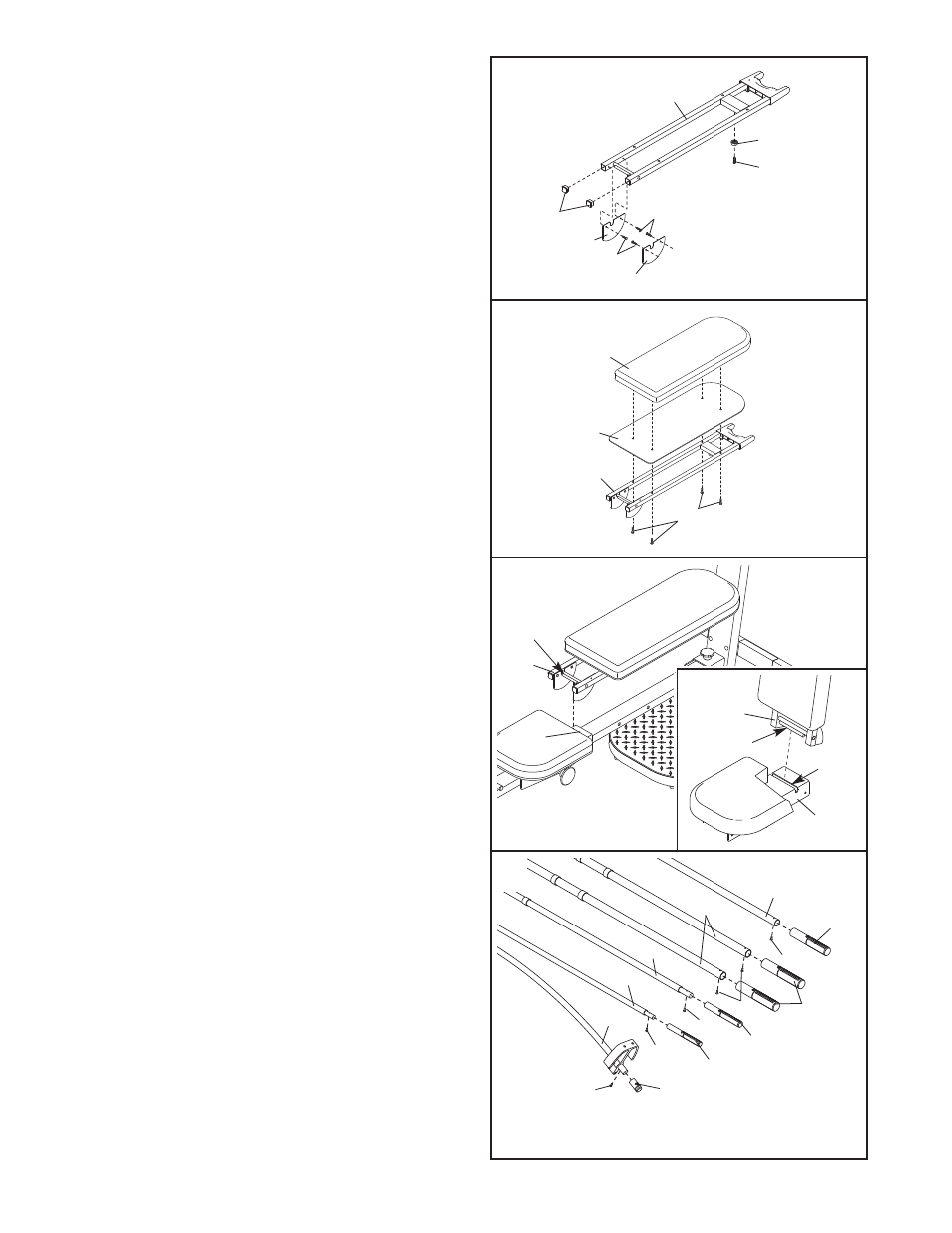

14. Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.
14
15
15
12
12
Rod
Slot
Rod
13. Orient the Backrest (14) and the Backrest
Backing (8) as shown. Attach the Backrest and
the Backrest Backing to the Backrest Frame (15)
with four 1/4” x 1 3/4” Bolts (58).
13
15
8
58
14
12. Press two 1” Square Inner Caps (54) into the indi-
cated end of the Backrest Frame (15).
Attach a Plastic Foot (53) to the Backrest Frame
(15) with a #8 x 3/4” Tek Screw (62).
Attach the two Guard Plates (17) to the inside of
the Backrest Frame (15) with four #8 x 1/2” Tek
Screws (56).
12
53
62
15
54
17
56
56
17
15. Attach the two 10-Pound Short Caps (20) to the
10-Pound Center Resistance Bar (44) with two #8
x 1/2” Flat Head Screws (85).
Using ten #8 x 1/2” Flat Head Screws (85), attach
the two 10-Pound Caps (101) to the 10-Pound
Removable Resistance Bar (67), the two 20-
Pound Caps (88) to the 20-Pound Removable
Resistance Bar (36), the four 80-Pound Caps
(100) to the two 80-Pound Resistance Bars (95),
and the two 40-Pound Caps (79) to the 40-Pound
Resistance Bar (96).
15
79
88
101
20
100
67
36
95
96
85
85
85
85
85
44
