Bcp-3 installation and operation manual, Bcp-3 output modes wiring, Wiring 1 lo/hi boiler + system pump – Weil-McLain BCP-3 User Manual

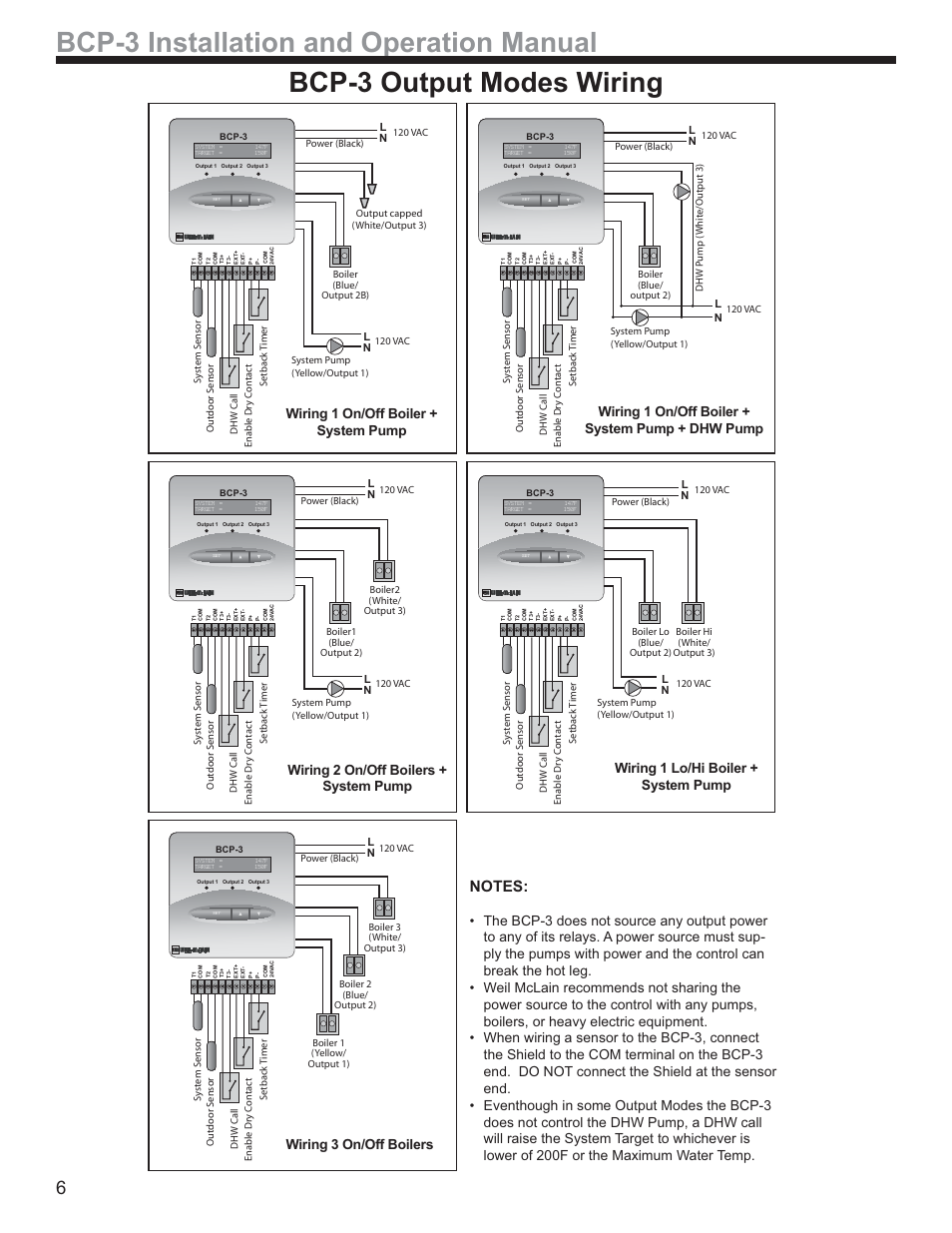

Page 6: Wiring 1 on/off boiler + system pump, Wiring 1 on/off boiler + system pump + dhw pump, Wiring 2 on/off boilers + system pump, Wiring 3 on/off boilers
Bcp-3 installation and operation manual, Bcp-3 output modes wiring, Wiring 1 lo/hi boiler + system pump | Wiring 1 on/off boiler + system pump, Wiring 1 on/off boiler + system pump + dhw pump, Wiring 2 on/off boilers + system pump, Wiring 3 on/off boilers | Weil-McLain BCP-3 User Manual | Page 6 / 16 See also other documents in the category Weil-McLain Water boiler:
